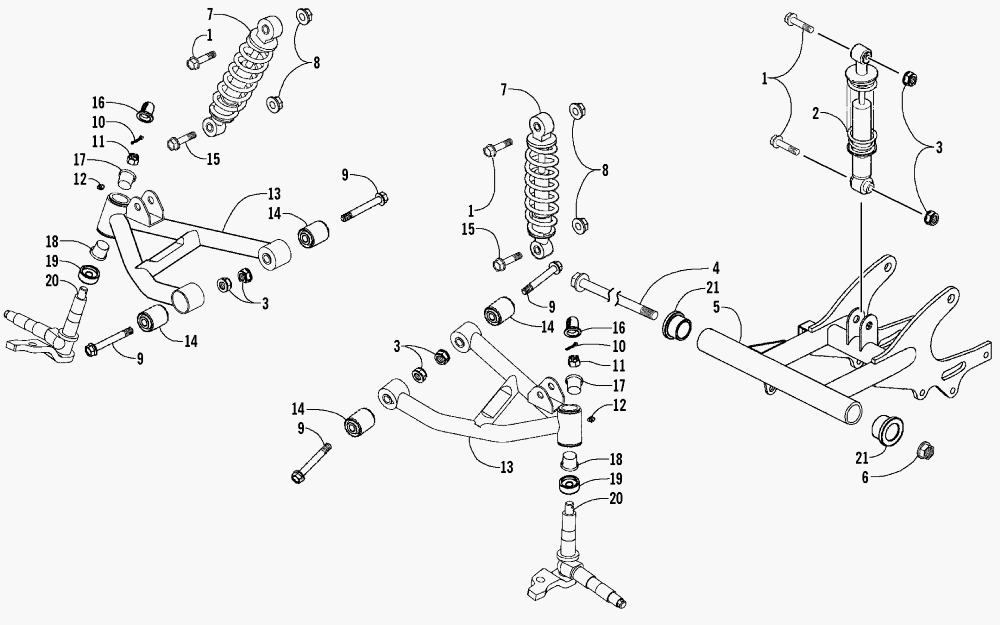

SUSPENSION ASSEMBLY для Arctic Cat 90 Y-12 YOUTH - DVX (RED) [A2006KSB2BUSR] - 2006 года выпуска
-
№АртикулНазвание
-
13303-376 BOLT, FLANGEBOLT, FLANGE
-
23303-433 SHOCK, REAR - ASSEMBLYSHOCK, REAR - ASSEMBLY
-
33303-265 NUT, FLANGENUT, FLANGE
-
43303-150 AXLE, REAR FORKAXLE, REAR FORK
-
53303-432 FORK, REAR - ASSEMBLYFORK, REAR - ASSEMBLY
-
63304-032 NUTNUT
-
73303-431 SHOCK, FRONT - ASSEMBLYSHOCK, FRONT - ASSEMBLY
-
83303-333 NUT, FLANGENUT, FLANGE
-
93303-377 BOLT, FLANGEBOLT, FLANGE
-
103303-337 PIN, COTTERPIN, COTTER
-
113303-329 NUT, FLANGE CASTLENUT, FLANGE CASTLE
-
123303-393 FITTING, GREASEFITTING, GREASE
-
133303-438 ARM, SWING - SET - FRONT RIGHT (INC. 14)ARM, SWING - SET - FRONT RIGHT (INC. 14)
-
133303-439 ARM, SWING - SET - FRONT LEFT (INC. 14)ARM, SWING - SET - FRONT LEFT (INC. 14)
-
143303-216 ...BUSHING, SWING ARM...BUSHING, SWING ARM
-
153303-309 BOLT, HEXBOLT, HEX
-
163303-219 CAP, SWING ARMCAP, SWING ARM
-
173303-218 BUSHING, SWING ARM - TOPBUSHING, SWING ARM - TOP
-
183303-217 BUSHING, SWING ARM - BOTTOMBUSHING, SWING ARM - BOTTOM
-
193303-220 SEAL, SWING ARMSEAL, SWING ARM
-
203303-178 SHAFT, STEERING - RIGHTSHAFT, STEERING - RIGHT
-
203303-180 SHAFT, STEERING - LEFTSHAFT, STEERING - LEFT
-
213303-191 BUSHING, REAR FORKBUSHING, REAR FORK
