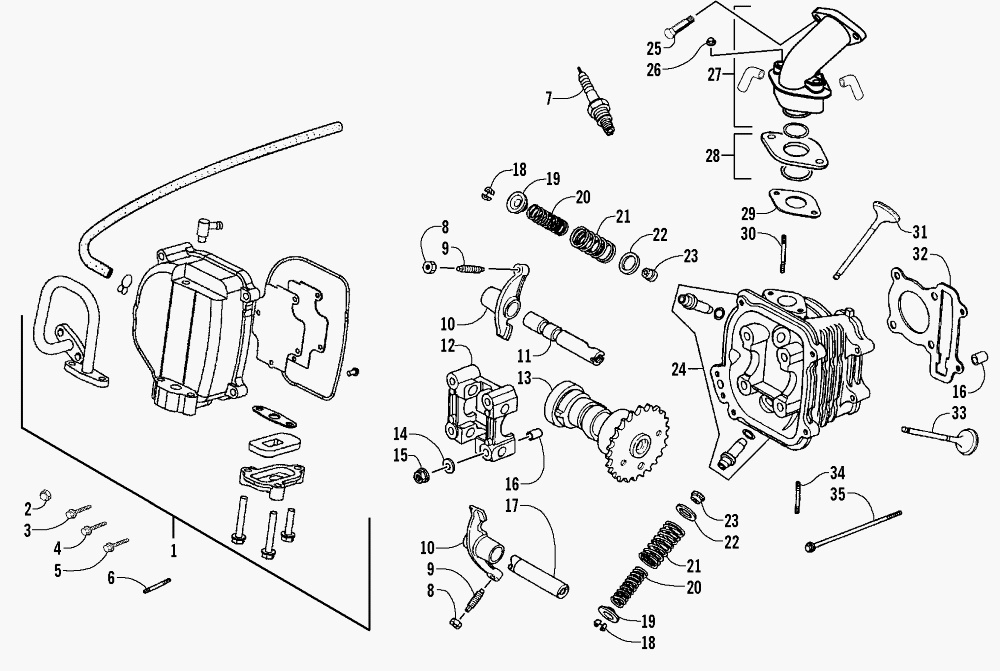

CYLINDER HEAD ASSEMBLY для Arctic Cat 90 Y-12 YOUTH - DVX (RED) [A2006KSB2BUSR] - 2006 года выпуска
-
№АртикулНазвание
-
-3303-625 ENGINE (90) 4-STROKE SEE NOTEENGINE (90) 4-STROKE SEE NOTE
-
13303-020 COVER, HEAD - ASSEMBLYCOVER, HEAD - ASSEMBLY
-
23303-265 NUT, FLANGENUT, FLANGE
-
33304-010 BOLT, FLANGEBOLT, FLANGE
-
43303-362 BOLT, FLANGEBOLT, FLANGE
-
53303-363 BOLT, FLANGEBOLT, FLANGE
-
63303-249 BOLT, STUDBOLT, STUD
-
70217-726 PLUG, SPARKPLUG, SPARK
-
83303-260 NUT, TAPPET ADJUSTINGNUT, TAPPET ADJUSTING
-
93303-246 SCREW, TAPPET ADJUSTINGSCREW, TAPPET ADJUSTING
-
103303-031 VALVE, ROCKER ARMVALVE, ROCKER ARM
-
113303-032 SHAFT, ROCKER ARMSHAFT, ROCKER ARM
-
123303-018 HOLDER, CAMSHAFTHOLDER, CAMSHAFT
-
133303-029 CAMSHAFTCAMSHAFT
-
143303-277 WASHER, SEALINGWASHER, SEALING
-
153303-332 NUT, FLANGENUT, FLANGE
-
163303-342 PIN, DOWELPIN, DOWEL
-
173303-033 SHAFT, ROCKER ARM EXHAUSTSHAFT, ROCKER ARM EXHAUST
-
183303-044 COTTER, VALVECOTTER, VALVE
-
193303-042 RETAINER, VALVE SPRINGRETAINER, VALVE SPRING
-
203303-041 SPRING, VALVE - INNERSPRING, VALVE - INNER
-
213303-040 SPRING, VALVE - OUTERSPRING, VALVE - OUTER
-
223303-043 SEAT, VALVE SPRING - OUTERSEAT, VALVE SPRING - OUTER
-
233303-017 SEAL, VALVE STEMSEAL, VALVE STEM
-
243303-016 HEAD, CYLINDERHEAD, CYLINDER
-
253303-384 BOLT, FLANGEBOLT, FLANGE
-
263303-331 NUT, FLANGENUT, FLANGE
-
273303-059 PIPE, INLET - ASSEMBLYPIPE, INLET - ASSEMBLY
-
283303-511 INSULATOR, CARBURETOR - ASSEMBLYINSULATOR, CARBURETOR - ASSEMBLY
-
293303-053 GASKETGASKET
-
303303-310 BOLT, STUDBOLT, STUD
-
313303-039 VALVE, EXHAUSTVALVE, EXHAUST
-
323303-019 GASKET, CYLINDER HEADGASKET, CYLINDER HEAD
-
333303-038 VALVE, INLETVALVE, INLET
-
343303-249 BOLT, STUDBOLT, STUD
-
353303-389 BOLT, FLANGEBOLT, FLANGE
