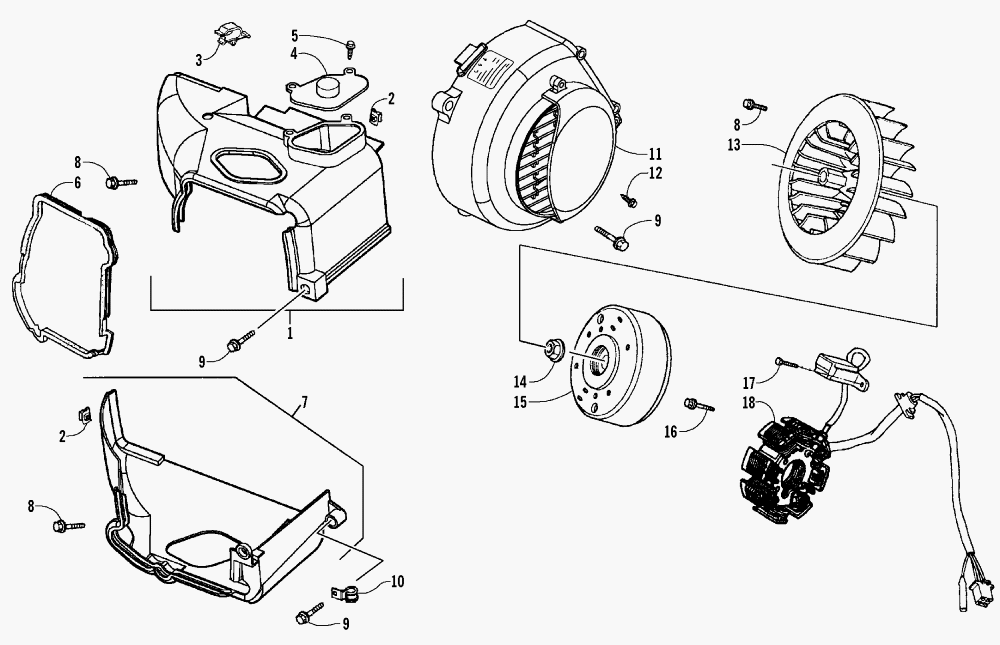

STATOR- FLYWHEEL- AND ENGINE SHROUD ASSEMBLIES для Arctic Cat 90 Y-12 YOUTH - DVX (RED) [A2006KSB2BUSR] - 2006 года выпуска

  • №
    Артикул
    Название
  • 1
    3303-079 SHROUD B - ASSEMBLY (INC. ONE NO. 2 AND 3-5)
    SHROUD B - ASSEMBLY (INC. ONE NO. 2 AND 3-5)
  • 6
    3303-077 SEAL, SHROUD
    SEAL, SHROUD
  • 7
    3303-078 SHROUD A - ASSEMBLY (INC. TWO NO. 2)
    SHROUD A - ASSEMBLY (INC. TWO NO. 2)
  • 8
    3303-382 BOLT, FLANGE
    BOLT, FLANGE
  • 9
    3303-384 BOLT, FLANGE
    BOLT, FLANGE
  • 10
    3303-443 CLIP, VACUUM TUBE
    CLIP, VACUUM TUBE
  • 11
    3303-516 COVER, FAN - ASSEMBLY (INC. 12)
    COVER, FAN - ASSEMBLY (INC. 12)
  • 12
    3303-606 ...SCREW, SELF-TAPPING
    ...SCREW, SELF-TAPPING
  • 13
    3303-075 FAN, COOLING
    FAN, COOLING
  • 14
    3303-333 NUT, FLANGE
    NUT, FLANGE
  • 15
    3303-127 FLYWHEEL
    FLYWHEEL
  • 16
    3303-383 BOLT, FLANGE
    BOLT, FLANGE
  • 17
    3303-308 BOLT
    BOLT
  • 18
    3303-128 STATOR - ASSEMBLY
    STATOR - ASSEMBLY
