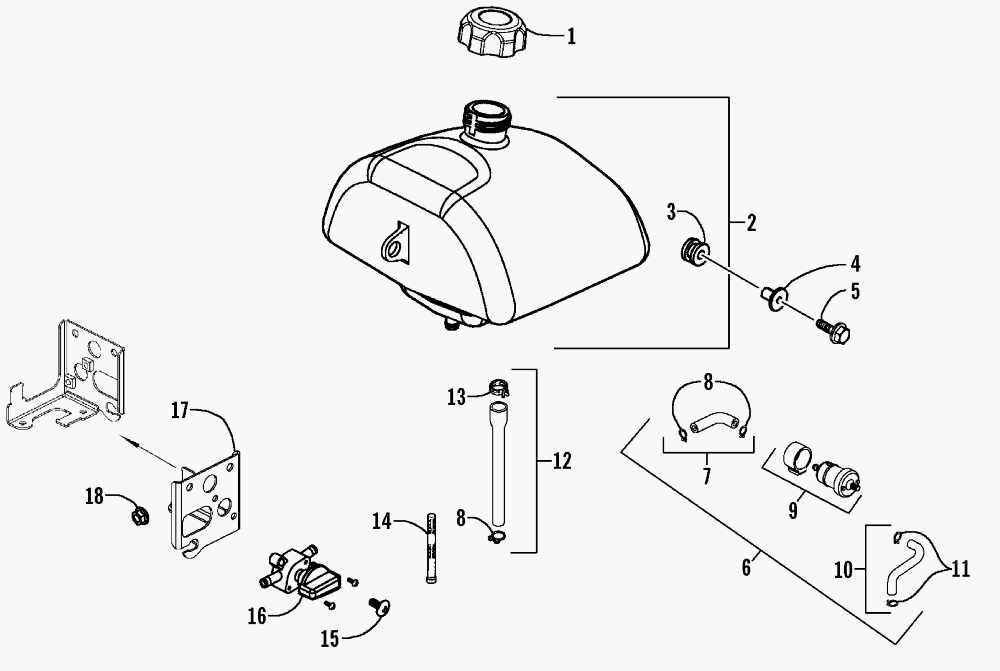

GAS TANK ASSEMBLY для Arctic Cat 90 Y-12 YOUTH - DVX (RED) [A2006KSB2BUSR] - 2006 года выпуска

  • №
    Артикул
    Название
  • 1
    3303-067 CAP, GAS TANK - ASSEMBLY
    CAP, GAS TANK - ASSEMBLY
  • 2
    3303-065 GAS TANK - ASSEMBLY
    GAS TANK - ASSEMBLY
  • 3
    3303-406 RUBBER, GAS TANK
    RUBBER, GAS TANK
  • 4
    3303-226 COLLAR, FRONT FENDER
    COLLAR, FRONT FENDER
  • 5
    3303-619 BOLT, FLANGE
    BOLT, FLANGE
  • 6
    3303-056 STRAINER, FUEL - ASSEMBLY (INC. 7-11)
    STRAINER, FUEL - ASSEMBLY (INC. 7-11)
  • 7
    3303-353 ...TUBE, GAS - ASSEMBLY (INC. TWO NO. 8)
    ...TUBE, GAS - ASSEMBLY (INC. TWO NO. 8)
  • 8
    3303-349 ......CLIP
    ......CLIP
  • 10
    3303-354 ...TUBE, GAS - ASSEMBLY (INC. 11)
    ...TUBE, GAS - ASSEMBLY (INC. 11)
  • 11
    3303-348 ......CLIP
    ......CLIP
  • 12
    3303-066 TUBE, GAS - ASSEMBLY (INC. ONE NO. 8 AND 13)
    TUBE, GAS - ASSEMBLY (INC. ONE NO. 8 AND 13)
  • 13
    3303-351 ...CLAMP
    ...CLAMP
  • 14
    3303-058 SCREEN, FUEL STRAINER
    SCREEN, FUEL STRAINER
  • 15
    3303-316 SCREW
    SCREW
  • 16
    3303-057 VALVE, SHUT-OFF
    VALVE, SHUT-OFF
  • 17
    3303-070 BRACKET, SHUT-OFF VALVE
    BRACKET, SHUT-OFF VALVE
  • 18
    3303-331 NUT, FLANGE
    NUT, FLANGE
