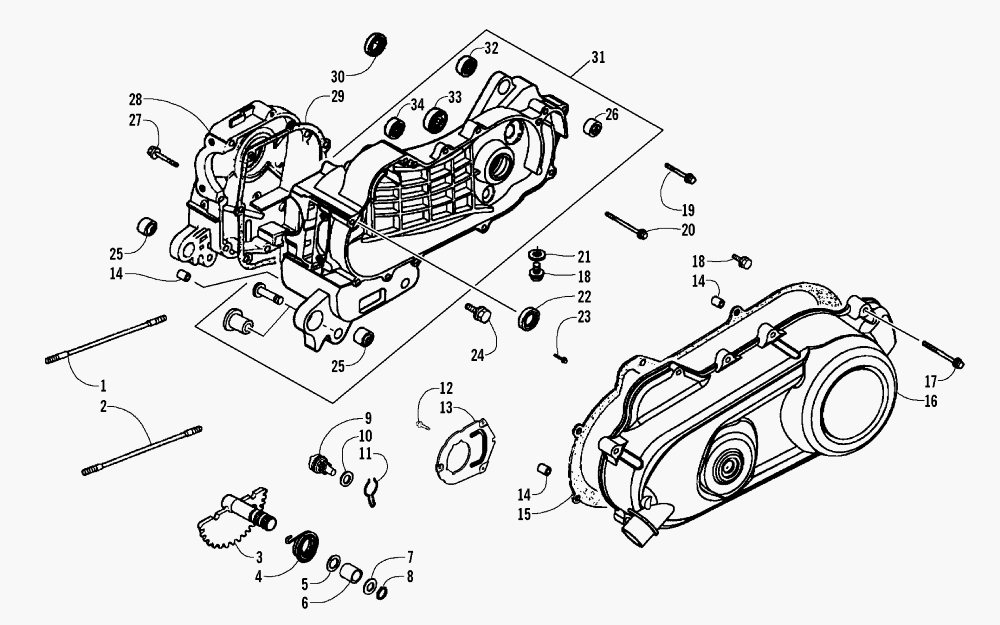

CRANKCASE ASSEMBLY для Arctic Cat 90 Y-12 YOUTH - DVX (RED) [A2006KSB2BUSR] - 2006 года выпуска
-
№АртикулНазвание
-
13303-247 BOLT, STUDBOLT, STUD
-
23303-248 BOLT, STUDBOLT, STUD
-
33303-119 SPINDLE, KICK STARTERSPINDLE, KICK STARTER
-
43303-122 SPRING, RETURN - KICK STARTERSPRING, RETURN - KICK STARTER
-
53303-121 COLLAR, BOSS - KICK STARTERCOLLAR, BOSS - KICK STARTER
-
63303-120 BUSHING, SPINDLE - KICK STARTERBUSHING, SPINDLE - KICK STARTER
-
73303-276 WASHER, SPINDLE - KICK STARTERWASHER, SPINDLE - KICK STARTER
-
83303-345 CIRCLIPCIRCLIP
-
93303-118 GEAR, DRIVEN - KICK STARTERGEAR, DRIVEN - KICK STARTER
-
103303-272 WASHER, THRUSTWASHER, THRUST
-
113303-117 SPRING, DRIVEN - KICK STARTERSPRING, DRIVEN - KICK STARTER
-
123303-391 BOLTBOLT
-
133303-009 PLATE, COVERPLATE, COVER
-
143303-342 PIN, DOWELPIN, DOWEL
-
153303-013 GASKET, CRANKCASE COVER - LEFTGASKET, CRANKCASE COVER - LEFT
-
163303-008 COVER , CRANKCASE - LEFTCOVER , CRANKCASE - LEFT
-
173303-386 BOLT, FLANGEBOLT, FLANGE
-
183303-364 BOLT, FLANGEBOLT, FLANGE
-
193303-370 BOLT, FLANGEBOLT, FLANGE
-
203303-372 BOLT, FLANGEBOLT, FLANGE
-
213303-278 WASHERWASHER
-
223303-296 SEAL, OILSEAL, OIL
-
233303-385 BOLTBOLT
-
243303-283 BOLT, DRAIN PLUG - ASSEMBLYBOLT, DRAIN PLUG - ASSEMBLY
-
253303-402 BUSHING, RUBBER - ENGINE HANGERBUSHING, RUBBER - ENGINE HANGER
-
263303-403 BUSHING, RUBBER - REAR CUSHIONBUSHING, RUBBER - REAR CUSHION
-
273303-387 BOLT, FLANGEBOLT, FLANGE
-
283303-400 CRANKCASE, SET - RIGHTCRANKCASE, SET - RIGHT
-
293303-003 GASKET, CRANKCASE - RIGHTGASKET, CRANKCASE - RIGHT
-
303303-299 SEAL, OILSEAL, OIL
-
313303-004 CRANKCASE, SET - LEFTCRANKCASE, SET - LEFT
-
323303-459 BEARING, BALLBEARING, BALL
-
333303-464 BEARING, BALLBEARING, BALL
-
343303-465 BEARING, BALLBEARING, BALL
