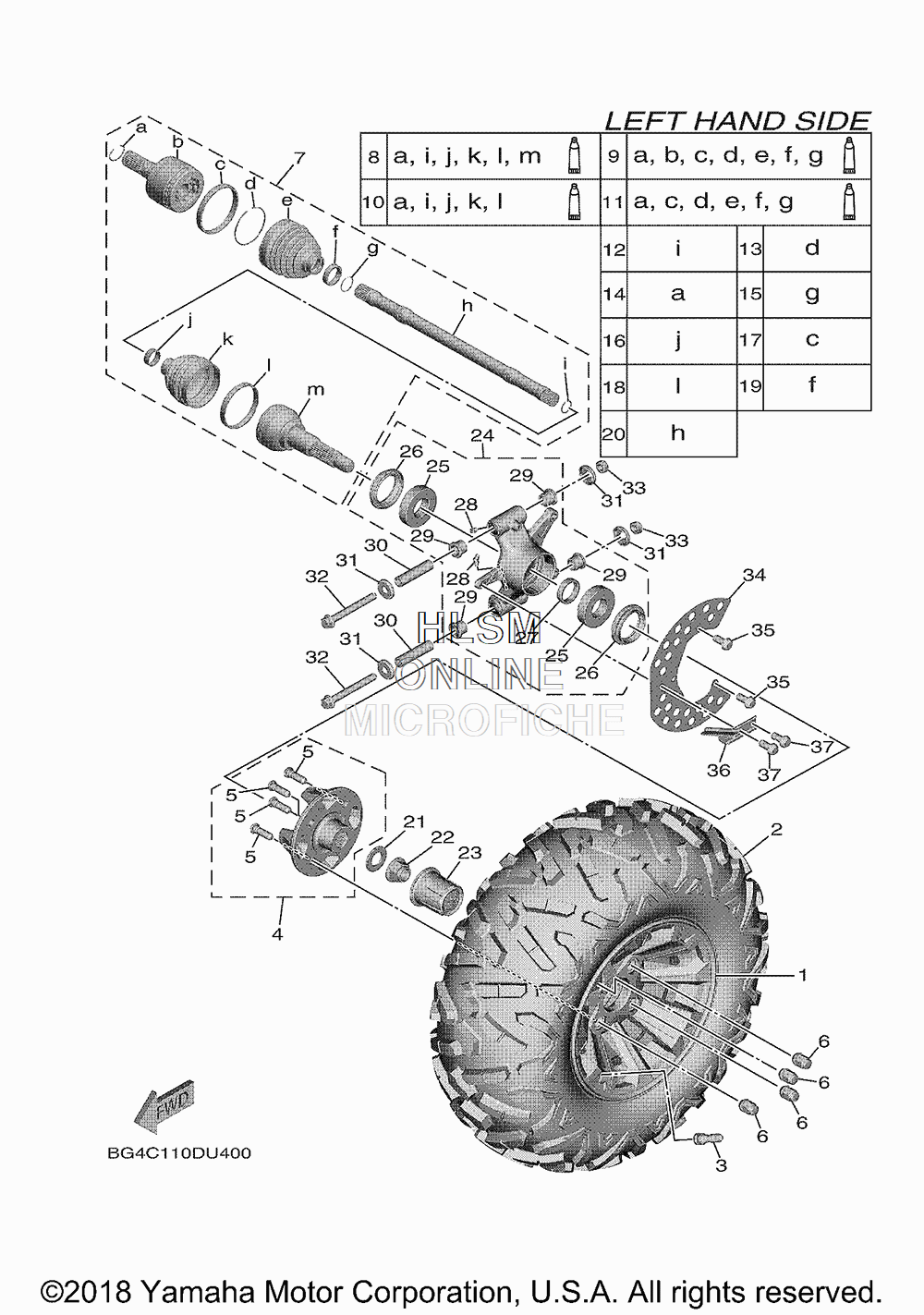

WHEEL - REAR LEFT W/ AXLE ASSY для Yamaha WOLVERINE X4 HUNTER - 2019 года выпуска`
-
№АртикулНазвание
-
1BG4-F5307-10-00 CAST WHEEL, REARCAST WHEEL, REAR
-
294110-12822-00 TIRE (26X10.00-12 MU76 6PR TL) (MAXXIS)TIRE (26X10.00-12 MU76 6PR TL) (MAXXIS)
-
393900-00813-00 VALVE, RIM (TR413) (MAXXIS)VALVE, RIM (TR413) (MAXXIS)
-
42MB-F510D-02-00 HUB ASSY 2HUB ASSY 2
-
590114-12005-00 ...BOLT, SERRATION...BOLT, SERRATION
-
690176-12800-00 NUT, CROWNNUT, CROWN
-
7BG4-2531H-00-00 REAR DRIVE SHAFT ASSYREAR DRIVE SHAFT ASSY
-
8BG4-2530T-00-00 ...BALL JOINT SET...BALL JOINT SET
-
9BG4-2530V-00-00 ...DOUBLE OFF SET JOINT...DOUBLE OFF SET JOINT
-
10BG4-2530X-00-00 ...BOOT SET (BALL JOINT)...BOOT SET (BALL JOINT)
-
112HC-2530Y-00-00 ...BOOT SET (DOUBLE OFFSET JOINT)...BOOT SET (DOUBLE OFFSET JOINT)
-
12BG4-25185-00-00 ...CIRCLIP...CIRCLIP
-
132HC-2536E-00-00 ...CLIP, SPRING...CLIP, SPRING
-
1416B-2536E-00-00 ...CLIP, SPRING...CLIP, SPRING
-
152HC-2512J-00-00 ...SNAP RING...SNAP RING
-
16BG4-26397-00-00 ...BAND...BAND
-
172HC-26293-00-00 ...BAND...BAND
-
18BG4-2639A-00-00 ...BAND...BAND
-
192HC-25719-00-00 ...BAND...BAND
-
20BG4-259A2-00-00 ...SHAFT...SHAFT
-
2190201-25023-00 WASHER, PLATEWASHER, PLATE
-
2290179-24006-00 NUTNUT
-
232MB-F512A-00-00 CAP, WHEELCAP, WHEEL
-
241XD-F530F-21-00 REAR KNUCKLE ASSY (LEFT)REAR KNUCKLE ASSY (LEFT)
-
2593306-20725-00 ...BEARING...BEARING
-
2693106-50002-00 ...OIL SEAL...OIL SEAL
-
2790387-35007-00 ...COLLAR...COLLAR
-
2893700-06009-00 ...NIPPLE, GREASE...NIPPLE, GREASE
-
2990381-18005-00 ...BUSH, SOLID...BUSH, SOLID
-
3090387-12N54-00 COLLARCOLLAR
-
311XD-23517-00-00 COVER, THRUST 1COVER, THRUST 1
-
3290105-12089-00 BOLT, FLANGEBOLT, FLANGE
-
3390185-12010-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
341XD-F514A-01-00 RING, WHEEL 1RING, WHEEL 1
-
3592012-06012-00 BOLT, BUTTON HEADBOLT, BUTTON HEAD
-
361XD-F2341-00-00 PLATE, GUIDE 1PLATE, GUIDE 1
-
3792012-06012-00 BOLT, BUTTON HEADBOLT, BUTTON HEAD
