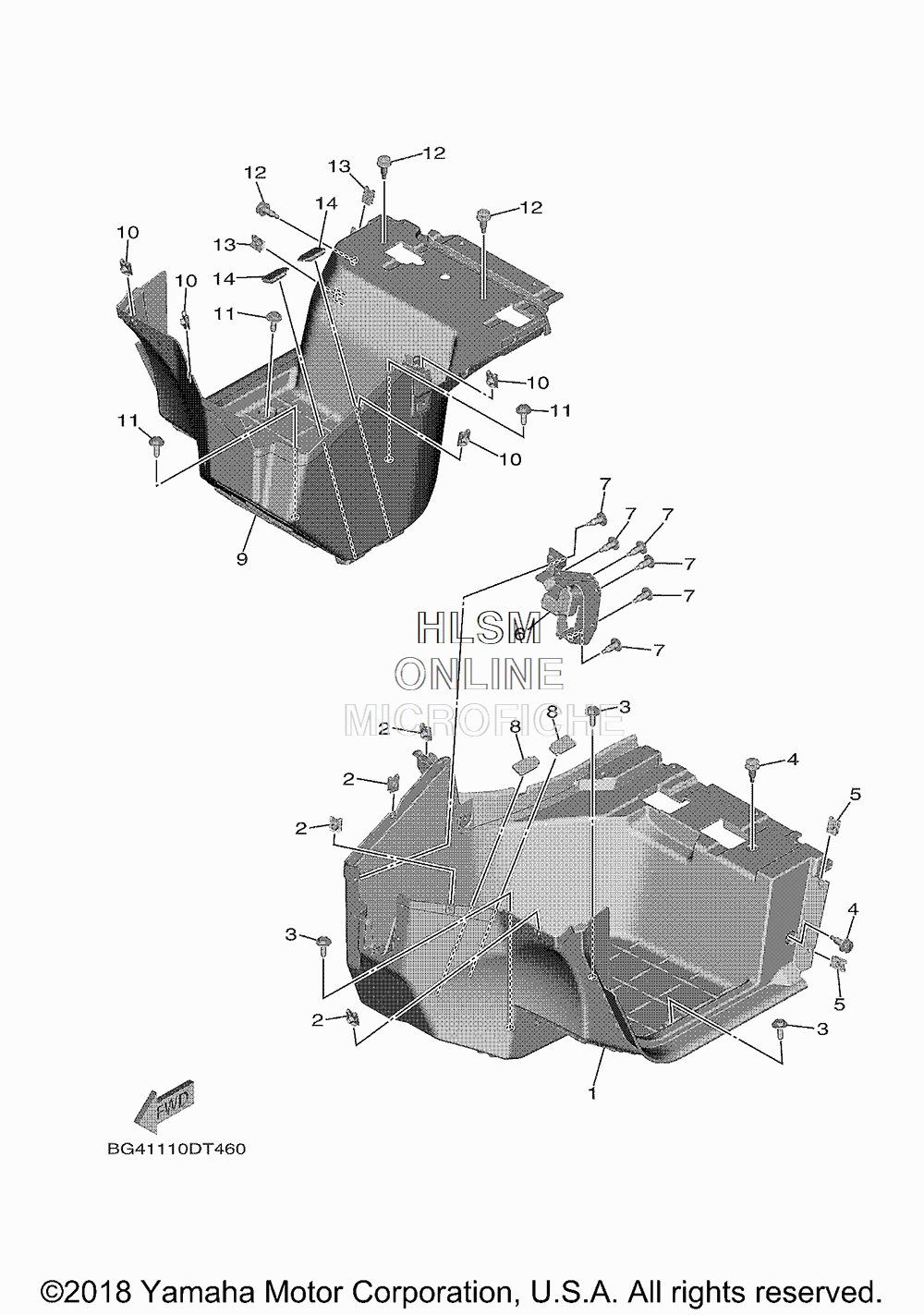

FOOTREST W/ BRAKE PEDAL для Yamaha WOLVERINE X4 HUNTER - 2019 года выпуска`
-
№АртикулНазвание
-
1BG4-F7411-00-00 FOOTREST 1FOOTREST 1
-
290183-060A6-00 NUT, SPRINGNUT, SPRING
-
3JW1-K6179-01-00 BOLT, SPECIAL 1BOLT, SPECIAL 1
-
490269-07805-00 RIVETRIVET
-
590183-060A6-00 NUT, SPRINGNUT, SPRING
-
6BG4-F7286-00-00 COVER, DUSTCOVER, DUST
-
790269-07805-00 RIVETRIVET
-
8BG4-F312G-00-00 PLUG, HOLEPLUG, HOLE
-
9BG4-F7421-01-00 FOOTREST 2FOOTREST 2
-
1090183-060A6-00 NUT, SPRINGNUT, SPRING
-
11JW1-K6179-01-00 BOLT, SPECIAL 1BOLT, SPECIAL 1
-
1290269-07805-00 RIVETRIVET
-
1390183-060A6-00 NUT, SPRINGNUT, SPRING
-
14BG4-F312G-00-00 PLUG, HOLEPLUG, HOLE
