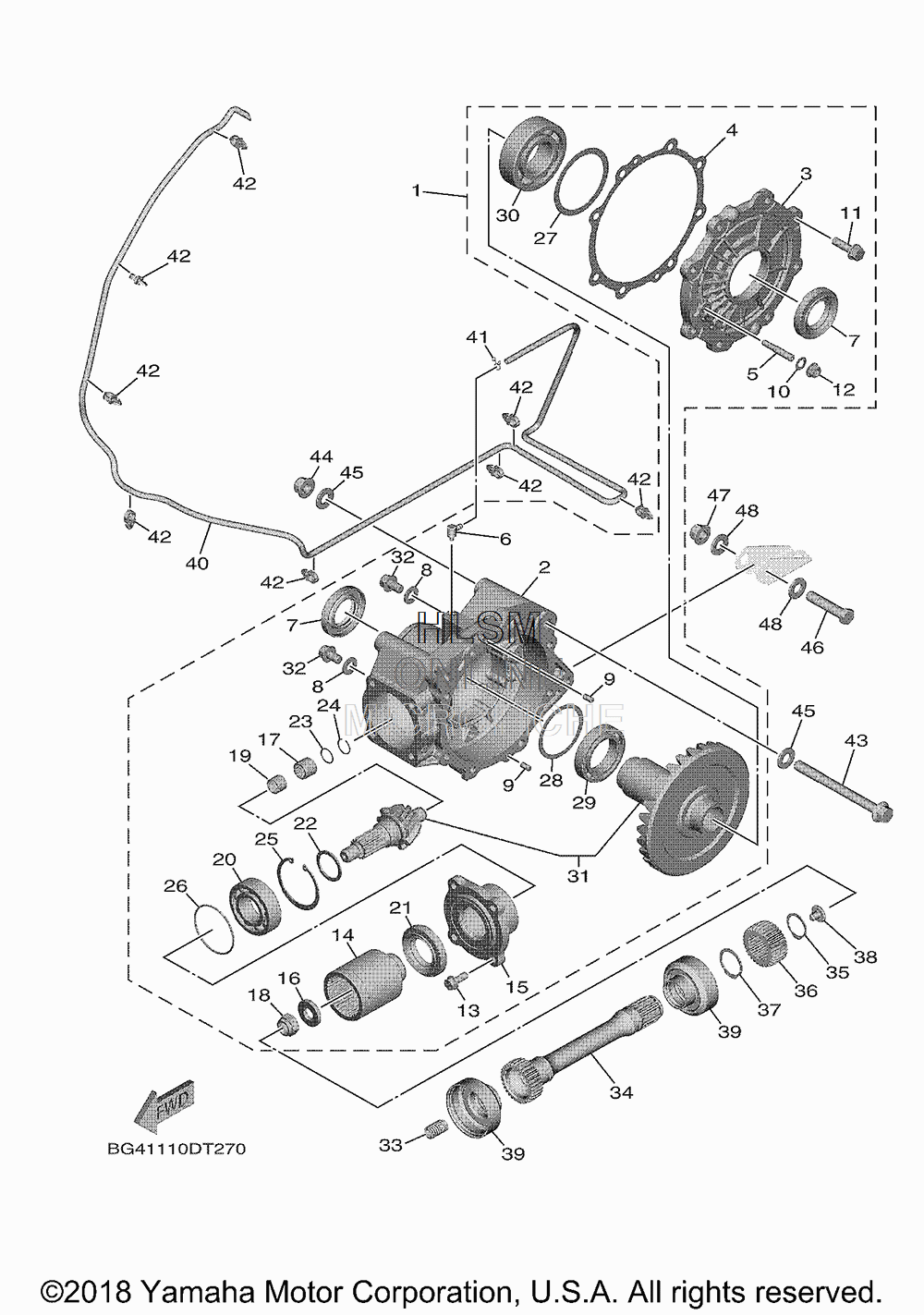

DIFFERENTIAL - REAR W/ DRIVE SHAFT для Yamaha WOLVERINE X4 HUNTER - 2019 года выпуска`
-
№АртикулНазвание
-
1BG4-G6101-01-00 REAR AXLE GEAR CASE ASSYREAR AXLE GEAR CASE ASSY
-
2BG4-G6151-00-00 ...HOUSING, DRIVE SHAFT...HOUSING, DRIVE SHAFT
-
31XD-G6152-00-00 ...HOUSING, BEARING...HOUSING, BEARING
-
41XD-G631A-00-00 ...GSKT., CASE...GSKT., CASE
-
51CT-G6156-00-00 ...STOPPER, RING GEAR...STOPPER, RING GEAR
-
61CT-E5371-00-00 ...BREATHER...BREATHER
-
71XD-E511B-00-00 ...OIL SEAL...OIL SEAL
-
81CT-E1195-00-00 ...GASKET...GASKET
-
91CT-E3362-00-00 ...PIN, DOWEL 1...PIN, DOWEL 1
-
101CT-G6819-00-00 ...GASKET...GASKET
-
112HC-E2157-00-00 ...BOLT...BOLT
-
121CT-E3275-00-00 ...NUT, ADJUSTING...NUT, ADJUSTING
-
131XD-G2478-00-00 ...BOLT, LOCK PLATE...BOLT, LOCK PLATE
-
14BG4-G6126-00-00 ...COUPLING...COUPLING
-
15BG4-G2134-00-00 ...COVER...COVER
-
161CT-E1557-00-00 ...WASHER 1...WASHER 1
-
171XD-E1428-00-00 ...BEARING 1...BEARING 1
-
181CT-E6377-00-00 ...NUT, LOCK...NUT, LOCK
-
191XD-G5319-00-00 ...CLIP...CLIP
-
2093306-30574-00 ...BEARING...BEARING
-
211XD-E511B-00-00 ...OIL SEAL...OIL SEAL
-
221XD-G7531-00-00 ...WHEEL, SPROCKET 1...WHEEL, SPROCKET 1
-
232HC-F2149-00-00 ...WASHER...WASHER
-
242HC-F5841-00-00 ...RING,RETAINER...RING,RETAINER
-
251XD-E1486-00-00 ...CLIP...CLIP
-
261XD-E1614-00-00 ...OIL RING, PISTON...OIL RING, PISTON
-
271XD-G5567-00-00 ...SHIM...SHIM
-
281XD-G5577-00-00 ...SHIM...SHIM
-
291XD-E142B-00-00 ...BEARING 4...BEARING 4
-
301XD-E1429-00-00 ...BEARING 2...BEARING 2
-
31BG4-G61A0-01-00 ...RING GEAR SET...RING GEAR SET
-
321XD-E2228-00-00 ...BOLT...BOLT
-
3390501-20361-00 SPRING, COMPRESSIONSPRING, COMPRESSION
-
34BG4-G6172-00-00 SHAFT, DRIVESHAFT, DRIVE
-
3593410-27080-00 CIRCLIPCIRCLIP
-
36BG4-46126-00-00 COUPLINGCOUPLING
-
3793440-31172-00 CIRCLIPCIRCLIP
-
385KM-46559-00-00 DAMPERDAMPER
-
39BG4-46137-00-00 SEAL 2SEAL 2
-
4090445-07049-00 HOSE (L1820)HOSE (L1820)
-
4190467-07029-00 CLIPCLIP
-
4290464-10833-00 CLAMPCLAMP
-
4395812-12130-00 BOLT, FLANGEBOLT, FLANGE
-
4490185-12002-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
4590201-12039-00 WASHER, PLATEWASHER, PLATE
-
4690101-12021-00 BOLTBOLT
-
4790185-12002-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
4890201-12039-00 WASHER, PLATEWASHER, PLATE
