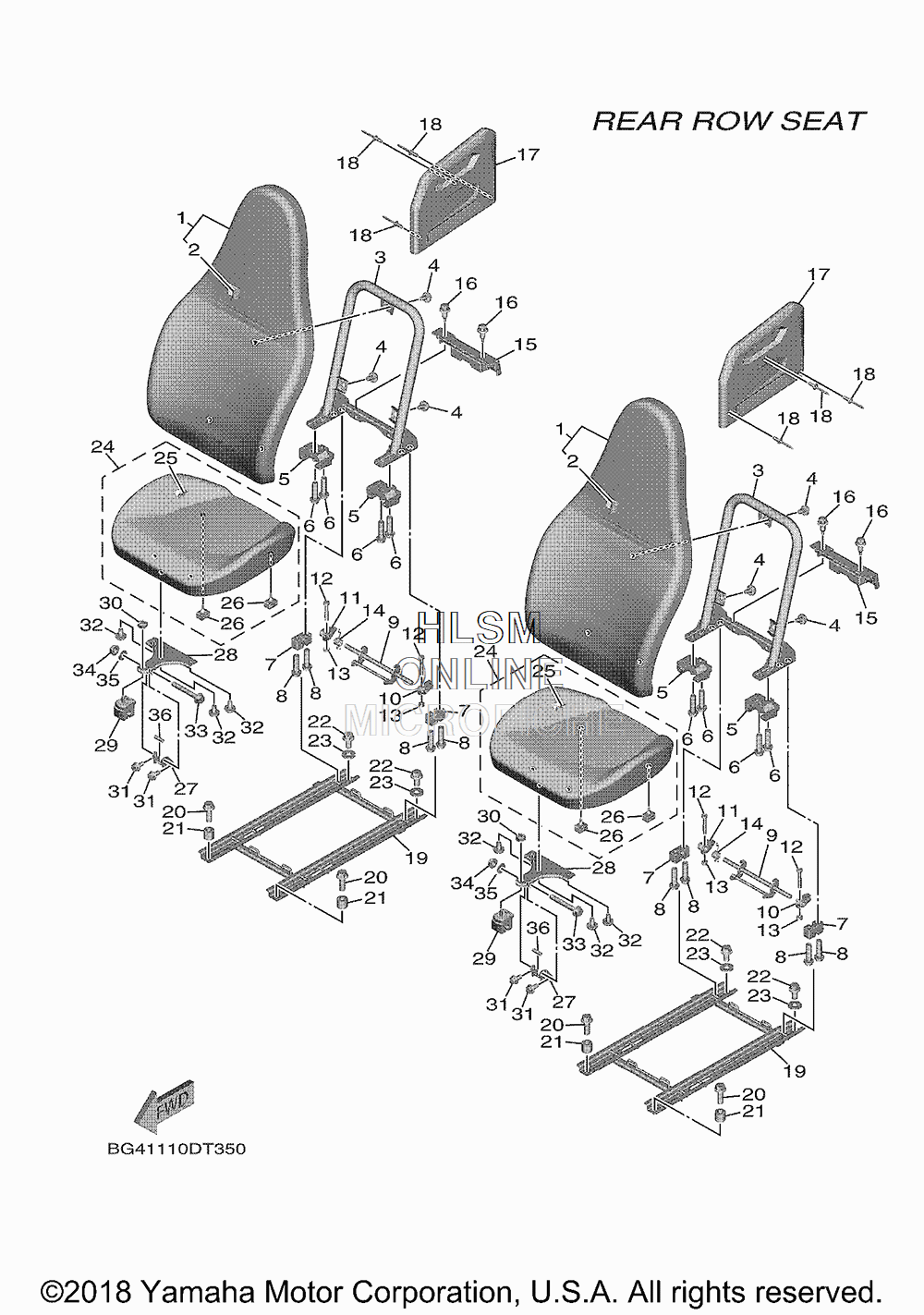

SEAT 3 для Yamaha WOLVERINE X4 HUNTER - 2019 года выпуска`
-
№АртикулНазвание
-
1BG4-F4790-10-00 SEAT BACK ASSYSEAT BACK ASSY
-
2BG4-F4711-10-00 ...COVER, SINGLE SEAT...COVER, SINGLE SEAT
-
3BG4-F473Y-01-00 DAMPERDAMPER
-
42PG-F4739-00-00 BOLT, SEAT FITTINGBOLT, SEAT FITTING
-
5BG4-F386R-01-00 SLIDERSLIDER
-
695022-08025-00 BOLT, FLANGEBOLT, FLANGE
-
7BG4-F1778-00-00 DAMPER, LOCATING 1DAMPER, LOCATING 1
-
895022-08030-00 BOLT, FLANGEBOLT, FLANGE
-
9BG4-K7180-01-00 LATCH ASSYLATCH ASSY
-
10BG4-F2231-00-00 CAM, 1CAM, 1
-
11BG4-F2232-00-00 CAM, 2CAM, 2
-
1297022-05030-00 BOLT, HEXAGONBOLT, HEXAGON
-
1395302-05600-00 NUT, HEXAGONNUT, HEXAGON
-
14BG4-F4424-00-00 SEAT, SPRINGSEAT, SPRING
-
15BG4-F6143-01-00 COVER, HANDLE UPPER 1COVER, HANDLE UPPER 1
-
1690269-07805-00 RIVETRIVET
-
17BG4-F475X-00-00 COVER 2COVER 2
-
1890267-489U9-00 RIVET, BLINDRIVET, BLIND
-
19BG4-F110B-00-00 SEAT RAIL ASSY 1SEAT RAIL ASSY 1
-
2095812-08025-00 BOLT, FLANGEBOLT, FLANGE
-
2190387-08258-00 COLLARCOLLAR
-
2295812-08016-00 BOLT, FLANGEBOLT, FLANGE
-
2390201-08048-00 WASHER, PLATEWASHER, PLATE
-
24BG4-F4700-10-00 SEAT ASSYSEAT ASSY
-
25BG4-F4731-10-00 ...COVER, SEAT...COVER, SEAT
-
26BG4-F221F-00-00 ...DAMPER 1...DAMPER 1
-
27BG4-F114B-00-00 BRACKET, HINGEBRACKET, HINGE
-
28BG4-F4726-00-00 HINGE, SEATHINGE, SEAT
-
29BG4-F5915-01-00 RUBBER, DAMPINGRUBBER, DAMPING
-
3095602-05200-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
3195812-06012-00 BOLT, FLANGEBOLT, FLANGE
-
322PG-F4739-00-00 BOLT, SEAT FITTINGBOLT, SEAT FITTING
-
3395817-06050-00 BOLT, FLANGEBOLT, FLANGE
-
3495617-06100-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
3590201-06557-00 WASHER, PLATEWASHER, PLATE
-
3690387-068S4-00 COLLARCOLLAR
