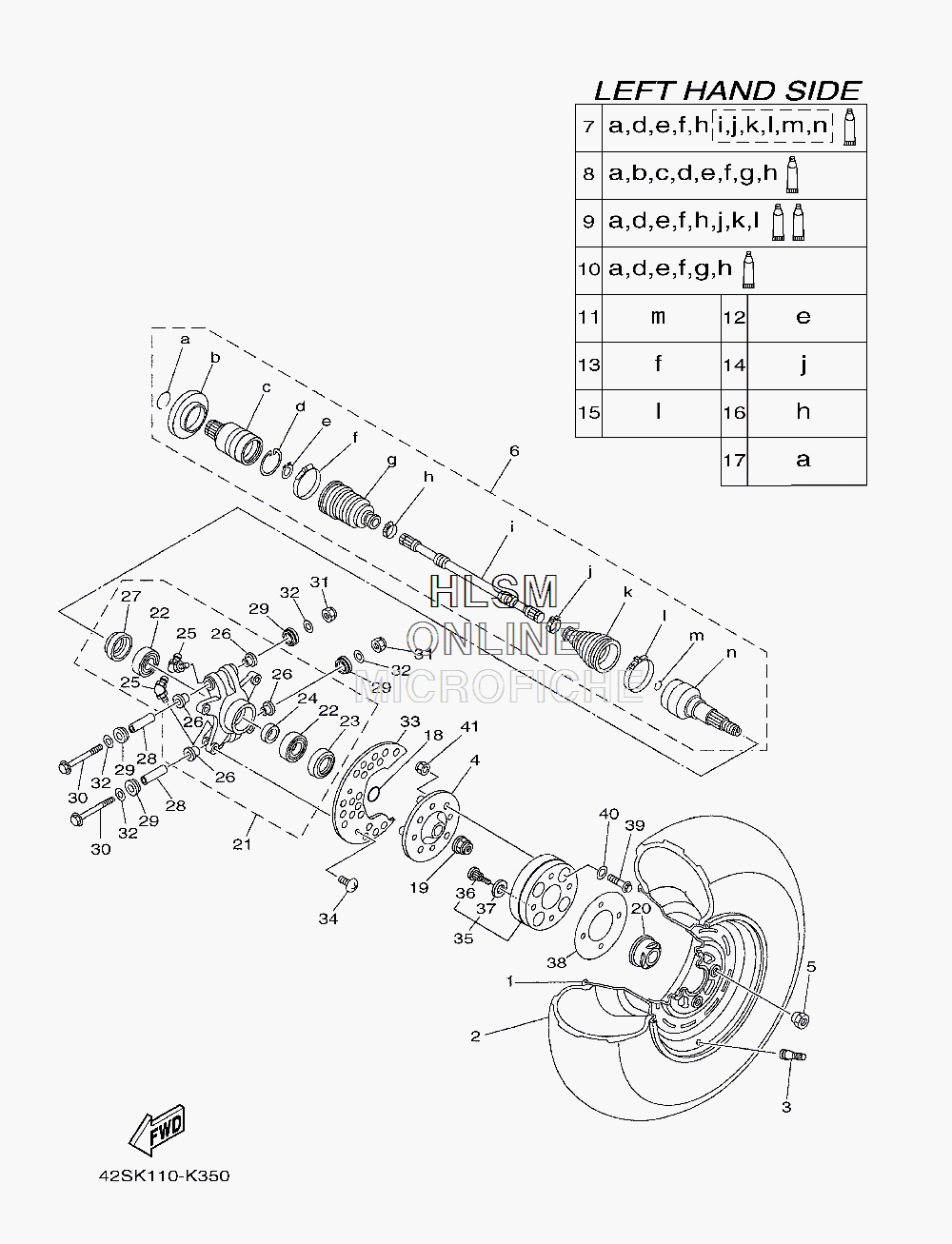

WHEEL - REAR LEFT W/ AXLE ASSY для Yamaha RHINO 700 - 2012 года выпуска
-
№АртикулНазвание
-
15UG-F5390-00-00 REAR WHEEL COMP.REAR WHEEL COMP.
-
294110-12805-00 TIRE (25X10.00-12 M952Y TL)TIRE (25X10.00-12 M952Y TL)
-
393900-00813-00 VALVE, RIM (TR413)VALVE, RIM (TR413)
-
45B4-F5311-00-00 HUB, REARHUB, REAR
-
590179-10022-00 NUTNUT
-
65B4-F531H-00-00 REAR DRIVE SHAFT ASSY (LEFT)REAR DRIVE SHAFT ASSY (LEFT)
-
75B4-F530T-00-00 ...BALL JOINT SET (LEFT)...BALL JOINT SET (LEFT)
-
85UG-F530V-02-00 ...DOUBLE OFF SET JOINT (LEFT)...DOUBLE OFF SET JOINT (LEFT)
-
95B4-F530X-00-00 ...BOOT SET (BALL JOINT)...BOOT SET (BALL JOINT)
-
105UG-F530Y-01-00 ...BOOT SET (DOUBLE OFFSET JOINT)...BOOT SET (DOUBLE OFFSET JOINT)
-
115UG-F512H-00-00 ...CIRCLIP...CIRCLIP
-
125UG-F512J-00-00 ...SNAP RING...SNAP RING
-
135UG-F511H-00-00 ...BOOT BAND (DOUBLE OFFSET JOINT)...BOOT BAND (DOUBLE OFFSET JOINT)
-
145B4-F512G-00-00 ...BOOT BAND (SMALL)...BOOT BAND (SMALL)
-
155B4-F511G-00-00 ...BOOT BAND (BALL JOINT)...BOOT BAND (BALL JOINT)
-
165UG-F510U-00-00 ...BOOT BAND (SMALL)...BOOT BAND (SMALL)
-
175KM-2536E-10-00 ...CLIP, SPRING...CLIP, SPRING
-
1893210-27666-00 O-RINGO-RING
-
1990179-24003-00 NUTNUT
-
202P5-F512A-00-00 CAP, WHEELCAP, WHEEL
-
215B4-F530F-00-00 REAR KNUCKLE ASSYREAR KNUCKLE ASSY
-
2293306-206Y2-00 ...BEARING...BEARING
-
2393106-42800-00 ...OIL SEAL...OIL SEAL
-
2490387-30008-00 ...COLLAR...COLLAR
-
255B4-R169A-00-00 ...NIPPLE, GREASE...NIPPLE, GREASE
-
2690381-17067-00 ...BUSH, SOLID...BUSH, SOLID
-
2793106-38800-00 ...OIL SEAL...OIL SEAL
-
285KM-23448-00-00 SPACERSPACER
-
295UG-23517-10-00 COVER, THRUST 1COVER, THRUST 1
-
3090105-10277-00 BOLT, FLANGEBOLT, FLANGE
-
3190185-10012-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
3290201-10035-00 WASHER, PLATEWASHER, PLATE
-
335B4-F5718-10-00 PROTECTOR, DISK BRAKEPROTECTOR, DISK BRAKE
-
3490150-06021-00 SCREW, ROUND HEADSCREW, ROUND HEAD
-
3542S-F53W0-00-00 SPACER ASSYSPACER ASSY
-
3690114-10013-00 ...BOLT, KNURLED...BOLT, KNURLED
-
3790201-12034-00 ...WASHER, PLAIN...WASHER, PLAIN
-
385UG-2539F-00-00 PLATE 1PLATE 1
-
3990105-12062-00 BOLT, FLANGEBOLT, FLANGE
-
4090201-14020-00 WASHER, PLATEWASHER, PLATE
-
4190185-12007-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
