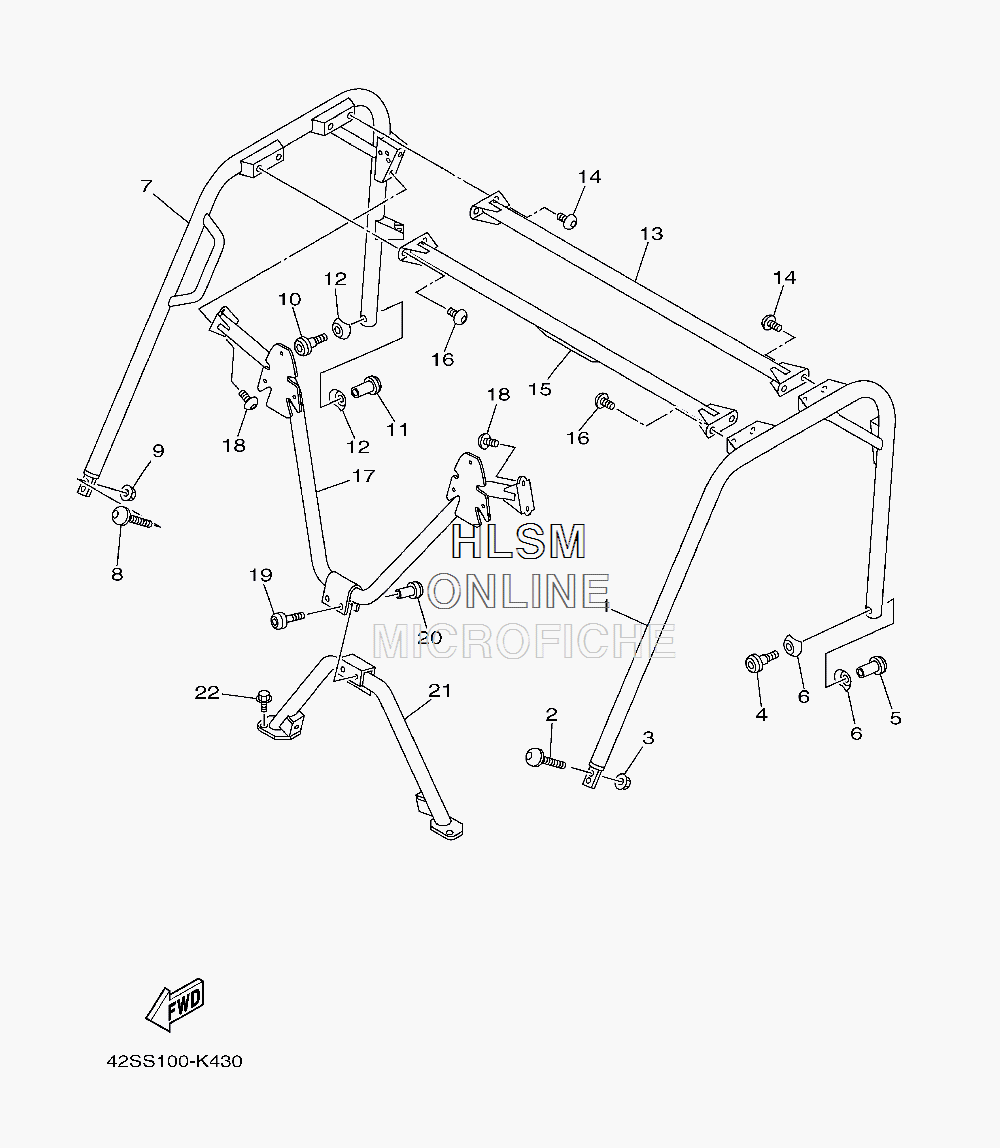

GUARD - ROOF для Yamaha RHINO 700 - 2012 года выпуска`
-
№АртикулНазвание
-
11RB-K831A-00-00 SUPPORT, ROOF 3SUPPORT, ROOF 3
-
290111-10803-00 BOLT, HEX. SOCKET BUTTONBOLT, HEX. SOCKET BUTTON
-
390185-10011-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
45B4-K7519-00-00 BOLTBOLT
-
55UG-K7573-00-00 NUT, SPECIALNUT, SPECIAL
-
65UG-K7526-00-00 WASHER 2WASHER 2
-
71RB-K831E-00-00 SUPPORT, ROOF 4SUPPORT, ROOF 4
-
890111-10803-00 BOLT, HEX. SOCKET BUTTONBOLT, HEX. SOCKET BUTTON
-
990185-10011-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
105B4-K7519-00-00 BOLTBOLT
-
115UG-K7573-00-00 NUT, SPECIALNUT, SPECIAL
-
125UG-K7526-00-00 WASHER 2WASHER 2
-
131RB-K8392-00-00 MEMBER, ROOF FRAMEMEMBER, ROOF FRAME
-
1490111-10802-00 BOLT, HEX. SOCKET BUTTONBOLT, HEX. SOCKET BUTTON
-
151RB-K8336-00-00 MEMBER, CROSS ROOFMEMBER, CROSS ROOF
-
1690111-10802-00 BOLT, HEX. SOCKET BUTTONBOLT, HEX. SOCKET BUTTON
-
171RB-K830A-00-00 ROOF SUPPORT ASSY 1ROOF SUPPORT ASSY 1
-
1890111-10802-00 BOLT, HEX. SOCKET BUTTONBOLT, HEX. SOCKET BUTTON
-
195B4-K7519-00-00 BOLTBOLT
-
205UG-K7573-00-00 NUT, SPECIALNUT, SPECIAL
-
211RB-K830B-00-00 ROOF SUPPORT ASSY 2ROOF SUPPORT ASSY 2
-
2295812-10016-00 BOLT, FLANGEBOLT, FLANGE
