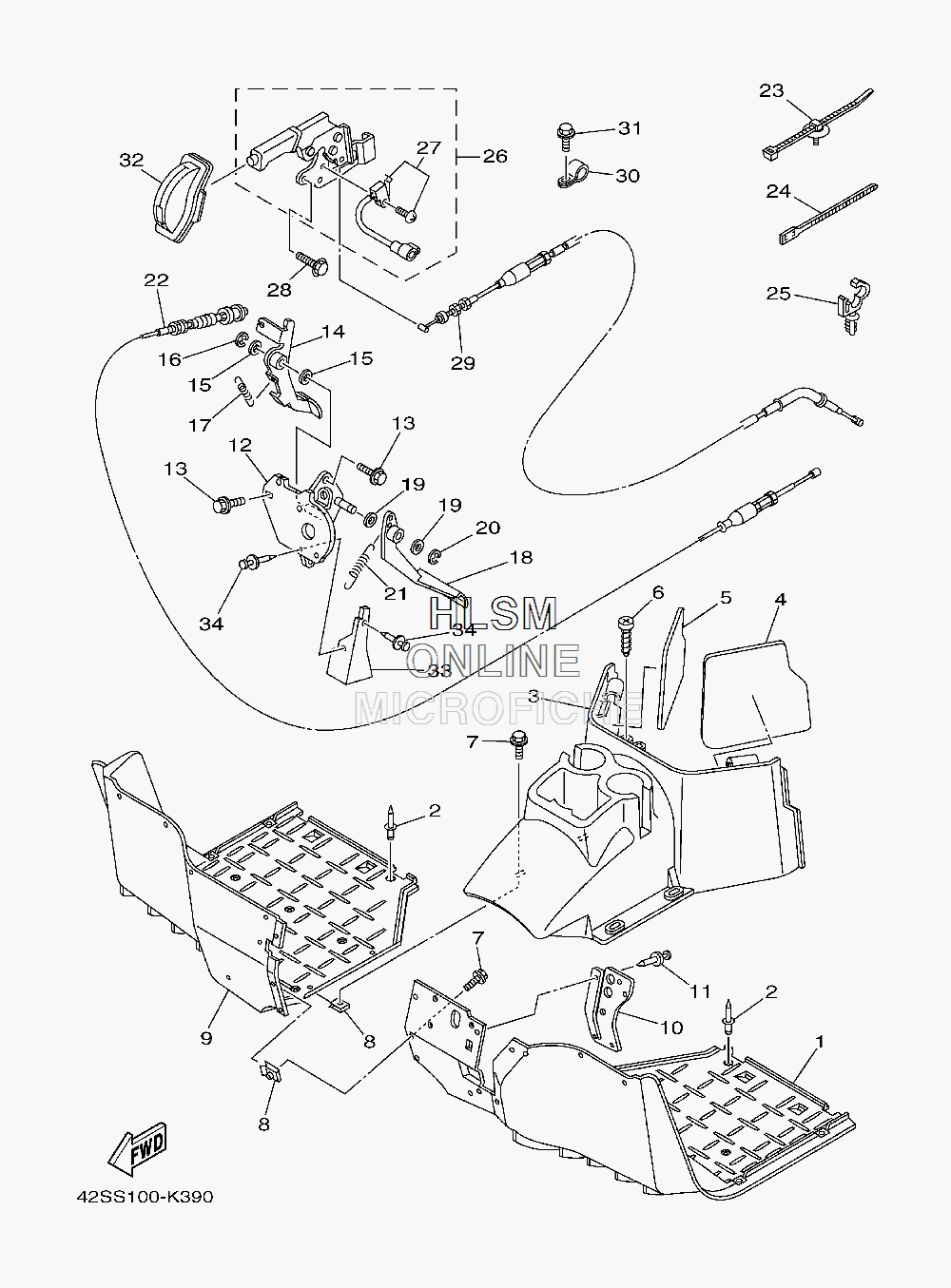

FOOTREST W/ BRAKE PEDAL для Yamaha RHINO 700 - 2012 года выпуска`
-
№АртикулНазвание
-
15UG-F7411-12-00 FOOTREST 1FOOTREST 1
-
290267-48820-00 RIVET, BLINDRIVET, BLIND
-
35B4-F7413-00-00 COVER, FOOTRESTCOVER, FOOTREST
-
45B4-F8238-00-00 SEAL 3SEAL 3
-
55B4-F8268-00-00 SEAL 4SEAL 4
-
690167-06800-00 SCREW, TAPPINGSCREW, TAPPING
-
790119-05023-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
890183-051A1-00 NUT, SPRINGNUT, SPRING
-
95UG-F7421-12-00 FOOTREST 2FOOTREST 2
-
105UG-F7286-00-00 COVER, DUSTCOVER, DUST
-
1190269-06800-00 RIVETRIVET
-
125UG-F2548-01-00 BRACKET, PEDAL SUPPORTBRACKET, PEDAL SUPPORT
-
1395812-08020-00 BOLT, FLANGEBOLT, FLANGE
-
145B4-F7801-00-00 ACCEL PEDAL ASSYACCEL PEDAL ASSY
-
1590201-15018-00 WASHER, PLATEWASHER, PLATE
-
1693430-12008-00 CIRCLIPCIRCLIP
-
1790506-20192-00 SPRING, TENSIONSPRING, TENSION
-
185UG-F7200-00-00 PEDAL, BRAKEPEDAL, BRAKE
-
1990201-15018-00 WASHER, PLATEWASHER, PLATE
-
2093430-12008-00 CIRCLIPCIRCLIP
-
2190506-20192-00 SPRING, TENSIONSPRING, TENSION
-
225B4-26311-00-00 CABLE, THROTTLE 1CABLE, THROTTLE 1
-
235B4-F1338-00-00 CLAMPCLAMP
-
2490464-40825-00 CLAMPCLAMP
-
2590464-12830-00 CLAMP (D: 12MM)CLAMP (D: 12MM)
-
265B4-F5690-00-00 PARKING LEVER ASSYPARKING LEVER ASSY
-
275UG-H251S-00-00 SWITCH COMP.SWITCH COMP.
-
2895812-06014-00 BOLT, FLANGEBOLT, FLANGE
-
295B4-26341-00-00 WIRE, BRAKE 1WIRE, BRAKE 1
-
3090461-08802-00 CLAMPCLAMP
-
3190105-06831-00 BOLT, FLANGEBOLT, FLANGE
-
325B4-F6372-00-00 COVER, HANDLE LEVER 1COVER, HANDLE LEVER 1
-
335UG-G5158-10-00 PLATE, SPLASHPLATE, SPLASH
-
3490269-06800-00 RIVETRIVET
