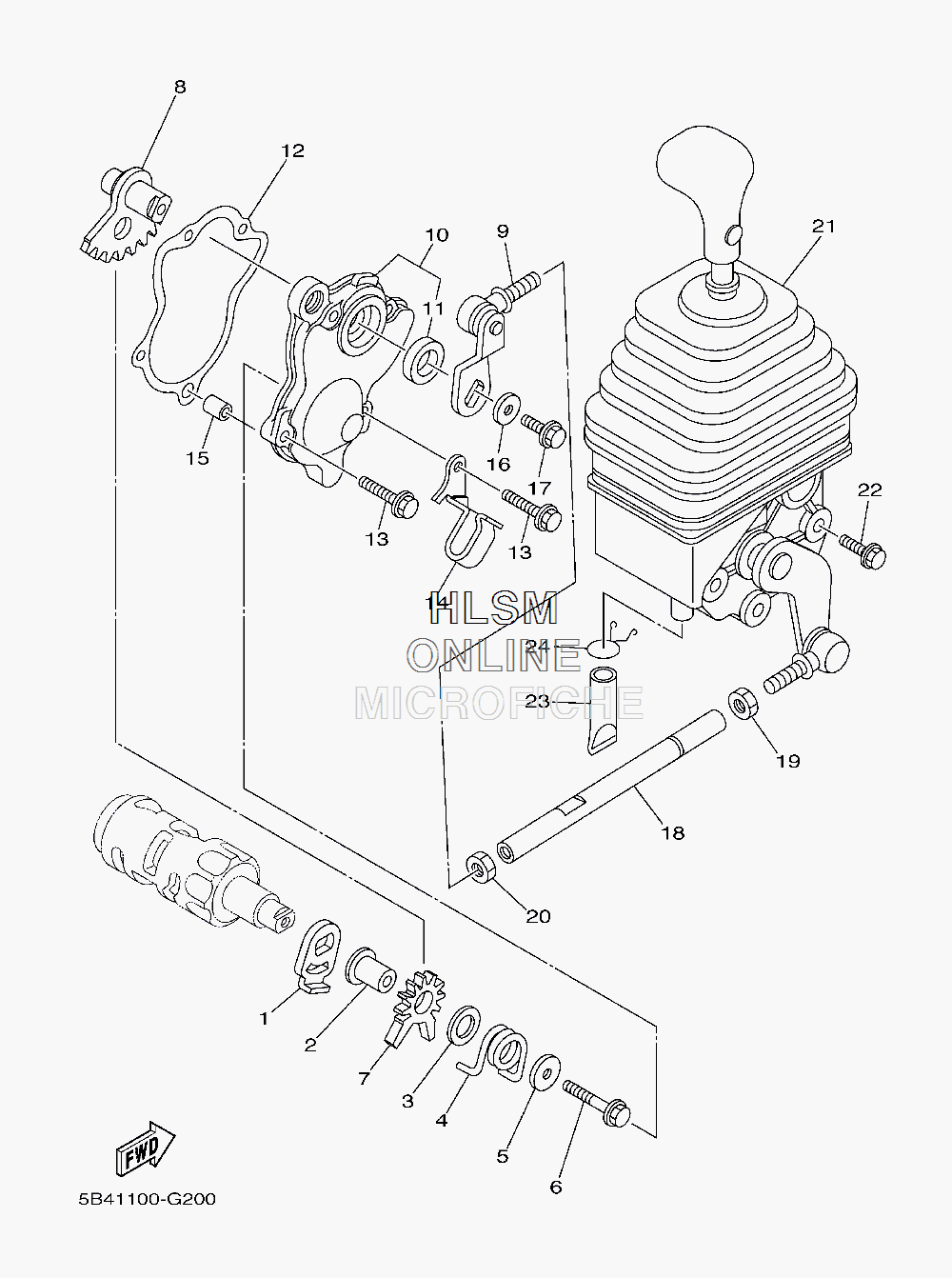

SHIFT SHAFT для Yamaha RHINO 700 - 2012 года выпуска`
-
№АртикулНазвание
-
14SH-18198-00-00 LEVERLEVER
-
290387-0613B-00 COLLARCOLLAR
-
390201-132G5-00 WASHER, PLATEWASHER, PLATE
-
490508-35764-00 SPRING, TORSIONSPRING, TORSION
-
590201-06036-00 WASHER, PLATEWASHER, PLATE
-
695812-06035-00 BOLT, FLANGEBOLT, FLANGE
-
75KM-18191-00-00 LEVERLEVER
-
83B4-18103-11-00 SHIFT SHAFT COMP.SHIFT SHAFT COMP.
-
95B4-18104-00-00 SHIFT GUIDE COMP.SHIFT GUIDE COMP.
-
103B4-18380-00-00 SHIFTER BRKT. ASSYSHIFTER BRKT. ASSY
-
1193102-15212-00 OIL SEALOIL SEAL
-
123B4-18146-00-00 GASKETGASKET
-
1395022-06020-00 BOLT, FLANGEBOLT, FLANGE
-
1490462-10048-00 CLAMPCLAMP
-
1599530-08012-00 PIN, DOWELPIN, DOWEL
-
1690201-06036-00 WASHER, PLATEWASHER, PLATE
-
1790105-06176-00 BOLT, FLANGEBOLT, FLANGE
-
185B4-18115-00-00 ROD, SHIFTROD, SHIFT
-
1990170-08358-00 NUTNUT
-
2095302-08700-00 NUTNUT
-
215UG-18300-10-00 SHIFTER ASSYSHIFTER ASSY
-
2295812-08012-00 BOLT, FLANGEBOLT, FLANGE
-
234GY-1443E-00-00 PIPE, DRAINPIPE, DRAIN
-
2490467-150A2-00 CLIPCLIP
