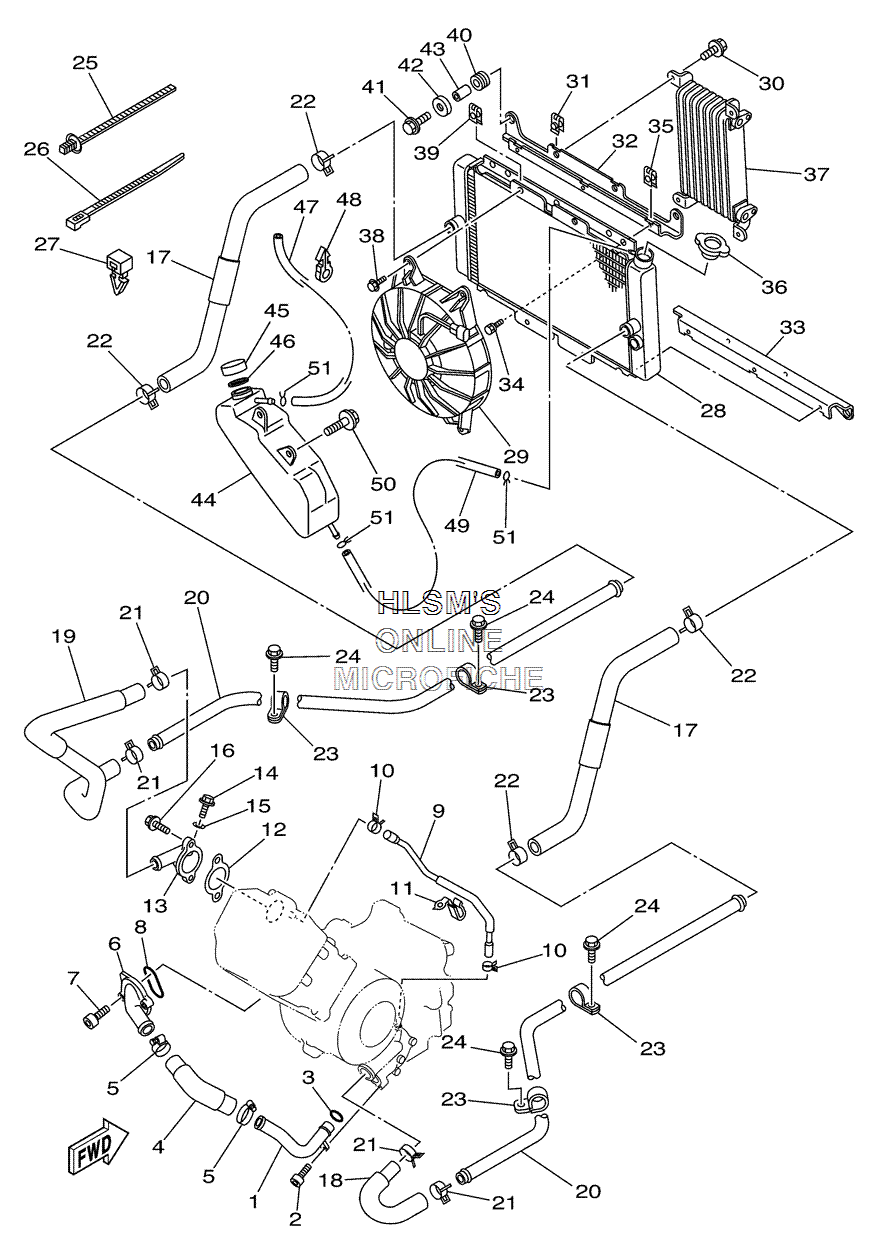

RADIATOR W/ HOSES для Yamaha RHINO - 2005 года выпуска`
-
№АртикулНазвание
-
15KM-12481-00-00 PIPE 1PIPE 1
-
291317-06010-00 BOLTBOLT
-
393210-21190-00 O-RINGO-RING
-
45KM-12577-00-00 HOSE 2HOSE 2
-
590450-32015-00 HOSE CLAMP ASSY.HOSE CLAMP ASSY.
-
65KM-12469-00-00 JOINT 1JOINT 1
-
791317-06020-00 BOLTBOLT
-
893210-33786-00 O-RINGO-RING
-
95KM-12579-00-00 HOSE 4HOSE 4
-
1090467-10038-00 CLIP, SCISSORCLIP, SCISSOR
-
1190462-08008-00 CLAMPCLAMP
-
125KM-12434-00-00 GASKETGASKET
-
135UG-12413-00-00 COVER, THERMOSTATCOVER, THERMOSTAT
-
1490338-06041-00 PLUGPLUG
-
1590430-06014-00 GASKETGASKET
-
1695027-06020-00 BOLT, FLANGEBOLT, FLANGE
-
175UG-E2576-00-00 HOSE 1HOSE 1
-
185UG-E2577-00-00 HOSE 2HOSE 2
-
195UG-E2579-00-00 HOSE 4HOSE 4
-
205UG-E2564-00-00 PIPE, WATERPIPE, WATER
-
2190450-32015-00 HOSE CLAMP ASSY.HOSE CLAMP ASSY.
-
2290467-26189-00 CLIPCLIP
-
2390461-12800-00 CLAMPCLAMP
-
2495827-06016-00 BOLT, FLANGEBOLT, FLANGE
-
2590464-20005-00 CLAMPCLAMP
-
2690464-65800-00 CLAMPCLAMP
-
275UG-F2465-00-00 HOLDERHOLDER
-
285UG-E2461-00-00 RADIATOR ASSY.RADIATOR ASSY.
-
295UG-E2405-00-00 BLOWER ASSY.BLOWER ASSY.
-
305ND-E2675-00-00 BOLT, BLOWER HOLDINGBOLT, BLOWER HOLDING
-
315ND-E2535-00-00 PLATEPLATE
-
325UG-E244E-01-00 BRACKET 1BRACKET 1
-
335UG-E244F-00-00 BRACKET 2BRACKET 2
-
345UG-E2623-00-00 BOLTBOLT
-
355ND-E2535-00-00 PLATEPLATE
-
365ND-E2462-00-00 CAP, RADIATORCAP, RADIATOR
-
375UG-E3470-00-00 OIL COOLER ASSY.OIL COOLER ASSY.
-
385ND-E2675-00-00 BOLT, BLOWER HOLDINGBOLT, BLOWER HOLDING
-
395ND-E2535-00-00 PLATEPLATE
-
4090480-15235-00 GROMMETGROMMET
-
4195807-06020-00 BOLT, FLANGEBOLT, FLANGE
-
4290209-06174-00 WASHERWASHER
-
4390387-060A7-00 COLLARCOLLAR
-
445GS-21871-00-00 TANK, RECOVERYTANK, RECOVERY
-
4526H-21875-00-00 CAPCAP
-
4626H-21874-00-00 GASKETGASKET
-
4790445-08811-00 HOSE (L1020)HOSE (L1020)
-
4890464-10833-00 CLAMPCLAMP
-
4990445-08809-00 HOSE (L500)HOSE (L500)
-
5090119-06060-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
5190467-08003-00 CLIP, SCISSORCLIP, SCISSOR
