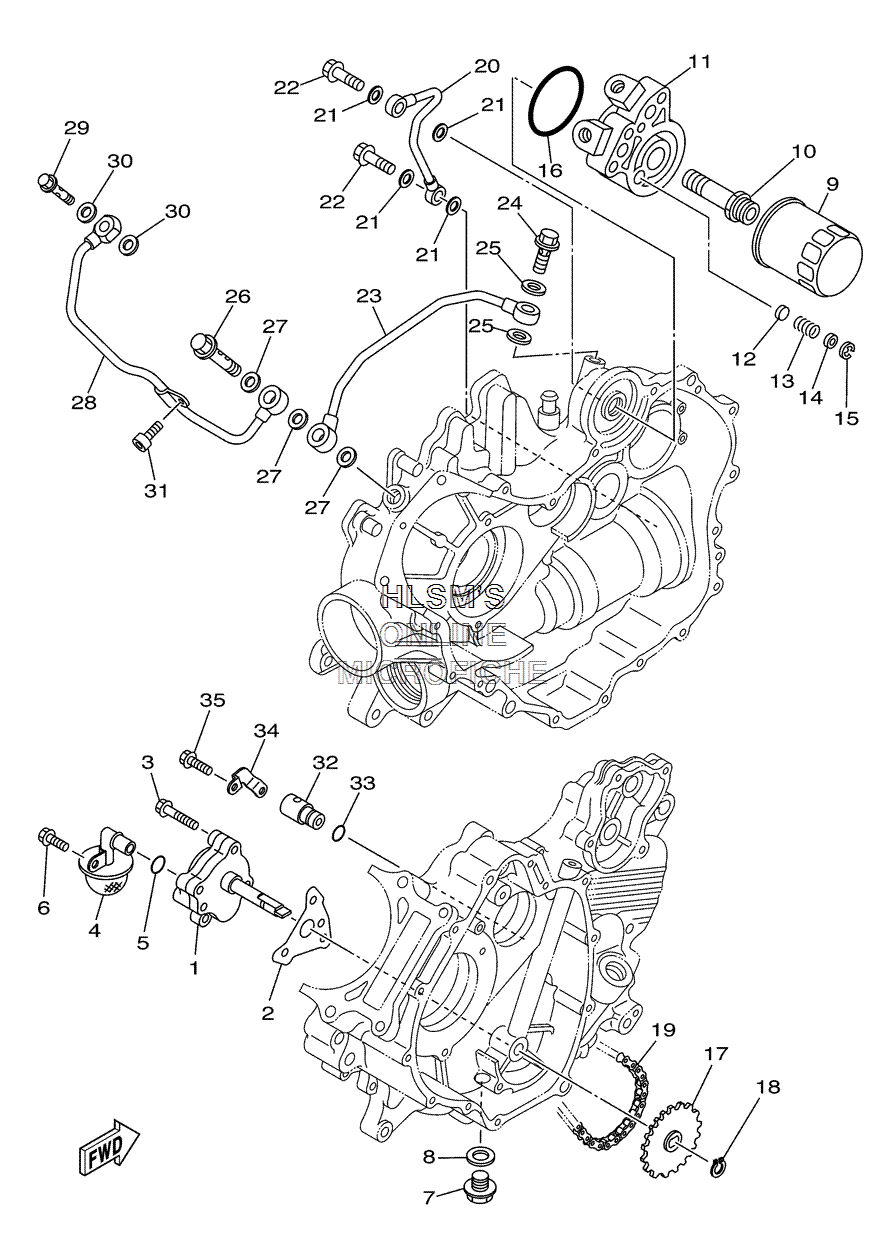

OIL PUMP для Yamaha RHINO - 2005 года выпуска`
-
№АртикулНазвание
-
15KM-13300-00-00 OIL PUMP ASSY.OIL PUMP ASSY.
-
25KM-13329-00-00 GASKET, PUMP COVERGASKET, PUMP COVER
-
395027-06040-00 BOLT, FLANGEBOLT, FLANGE
-
45KM-13410-00-00 STRAINER HOUSING ASSY.STRAINER HOUSING ASSY.
-
593210-14579-00 O-RINGO-RING
-
695027-06014-00 BOLT, FLANGEBOLT, FLANGE
-
790340-14132-00 PLUG, STRAIGHT SCREWPLUG, STRAIGHT SCREW
-
8214-11198-01-00 GASKETGASKET
-
95GH-13440-00-00 ELEMENT ASSY., OIL CLEANERELEMENT ASSY., OIL CLEANER
-
1090401-20162-00 BOLT, UNIONBOLT, UNION
-
115UG-13461-00-00 PLATE, ADAPTORPLATE, ADAPTOR
-
121YW-13497-00-00 PLUGPLUG
-
1390501-082E3-00 SPRING, COMPRESSIONSPRING, COMPRESSION
-
1492907-06600-00 WASHER, PLATEWASHER, PLATE
-
1593420-13073-00 CIRCLIPCIRCLIP
-
1693210-57428-00 O-RINGO-RING
-
175KM-13355-00-00 SPROCKET, DRIVENSPROCKET, DRIVEN
-
1899009-11400-00 CIRCLIPCIRCLIP
-
1994581-94070-00 CHAIN (DID25SD DHA)CHAIN (DID25SD DHA)
-
203AJ-13161-01-00 PIPE, DELIVERY 1PIPE, DELIVERY 1
-
2190430-08204-00 GASKETGASKET
-
2290401-08004-00 BOLT, UNIONBOLT, UNION
-
235KM-13171-00-00 PIPE, DELIVERY 2PIPE, DELIVERY 2
-
2490401-14118-00 BOLT, UNIONBOLT, UNION
-
2590430-14043-00 GASKETGASKET
-
265KM-12858-00-00 BOLT, UNIONBOLT, UNION
-
2790430-14043-00 GASKETGASKET
-
285KM-13181-00-00 PIPE, DELIVERY 3PIPE, DELIVERY 3
-
2990401-10159-00 BOLT, UNIONBOLT, UNION
-
3090430-10188-00 GASKETGASKET
-
3191317-06012-00 BOLTBOLT
-
325KM-13490-00-00 RELIEF VALVE ASSY.RELIEF VALVE ASSY.
-
3393210-10096-00 O-RINGO-RING
-
345KM-1319K-00-00 PLATEPLATE
-
3595027-06012-00 BOLT, FLANGEBOLT, FLANGE
