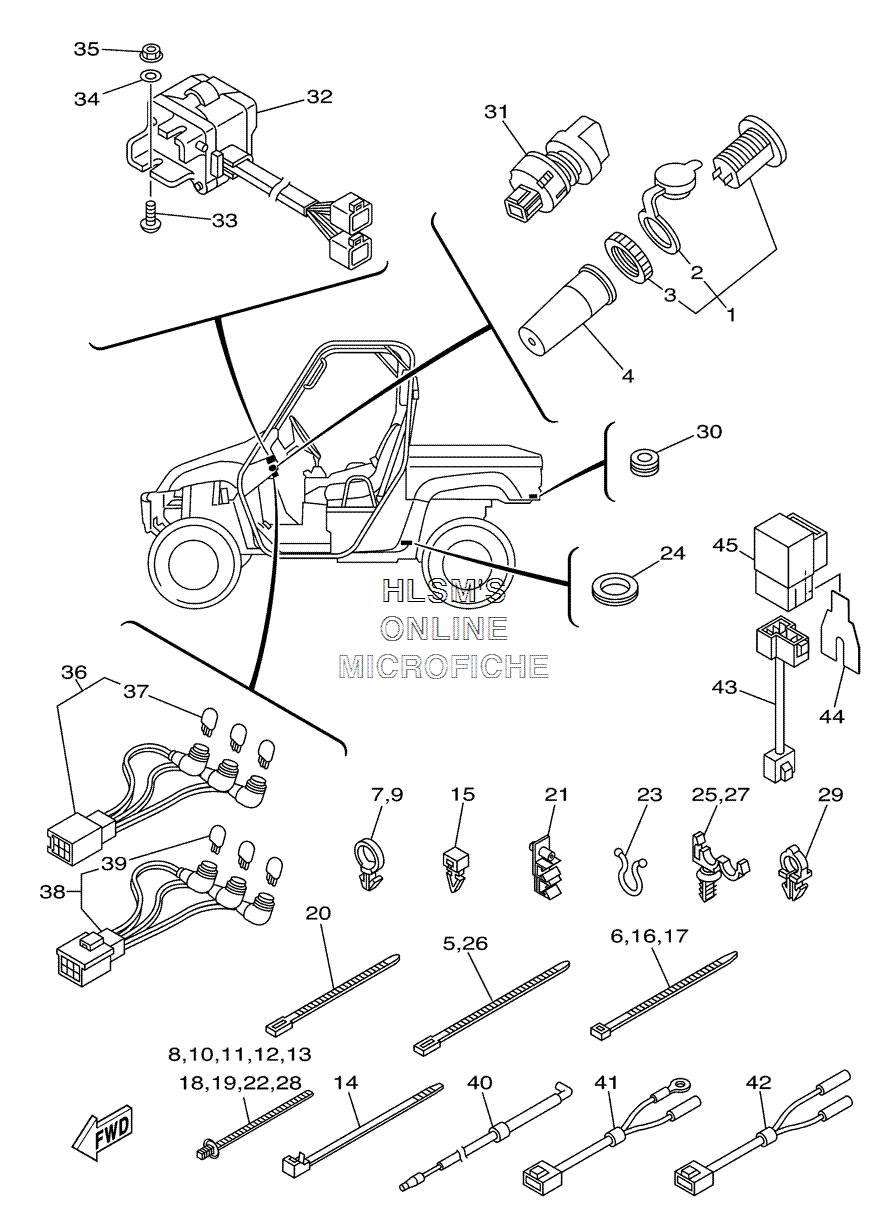

ELECTRICAL 2 для Yamaha RHINO - 2005 года выпуска`
-
№АртикулНазвание
-
15FU-H1920-10-00 TERMINAL ASSY.TERMINAL ASSY.
-
25FU-H1942-10-00 ...COVER...COVER
-
35FU-H191B-10-00 ...NUT...NUT
-
45FU-H2599-01-00 COVER, CONNECTERCOVER, CONNECTER
-
590464-40825-00 CLAMPCLAMP
-
690464-48800-00 CLAMPCLAMP
-
790464-19815-00 CLAMPCLAMP
-
890464-20005-00 CLAMPCLAMP
-
990464-19815-00 CLAMPCLAMP
-
1090464-20005-00 CLAMPCLAMP
-
1190464-20005-00 CLAMPCLAMP
-
1290464-20005-00 CLAMPCLAMP
-
1390464-20005-00 CLAMPCLAMP
-
1490464-51800-00 CLAMPCLAMP
-
155UG-F2465-00-00 HOLDERHOLDER
-
1690464-48800-00 CLAMPCLAMP
-
1790464-48800-00 CLAMPCLAMP
-
1890464-20005-00 CLAMPCLAMP
-
1990464-20005-00 CLAMPCLAMP
-
2090464-31827-00 CLAMPCLAMP
-
215UG-F481H-00-00 CLAMPCLAMP
-
2290464-20005-00 CLAMPCLAMP
-
2390464-14800-00 CLAMPCLAMP
-
2490480-25856-00 GROMMETGROMMET
-
2590464-12830-00 CLAMPCLAMP
-
2690464-40825-00 CLAMPCLAMP
-
2790464-12830-00 CLAMPCLAMP
-
2890464-20005-00 CLAMPCLAMP
-
2990464-10833-00 CLAMPCLAMP
-
3090480-15235-00 GROMMETGROMMET
-
315UG-H2526-00-00 SWITCH, LAMPSWITCH, LAMP
-
325UG-83976-00-00 SWITCH, HANDLE 1SWITCH, HANDLE 1
-
3390149-05299-00 SCREWSCREW
-
3490201-05029-00 WASHER, PLATEWASHER, PLATE
-
3595707-05300-00 NUT, FLANGENUT, FLANGE
-
365UG-83530-10-00 PILOT LIGHT ASSY.PILOT LIGHT ASSY.
-
375GH-83516-00-00 ...BULB (12V-1.7W)...BULB (12V-1.7W)
-
385UG-83530-01-00 PILOT LIGHT ASSY.PILOT LIGHT ASSY.
-
395GH-83516-00-00 ...BULB (12V-1.7W)...BULB (12V-1.7W)
-
405KM-82541-00-00 WIRE, LEADWIRE, LEAD
-
415KM-82509-10-00 WIRE, SUB LEADWIRE, SUB LEAD
-
425UG-82318-00-00 WIRE, SUB-LEADWIRE, SUB-LEAD
-
435UG-82583-00-00 WIRE, SUB-LEADWIRE, SUB-LEAD
-
445UG-H1953-00-00 STAY, RELAY (OPT)STAY, RELAY (OPT)
-
455DM-81950-00-00 RELAY ASSY.RELAY ASSY.
