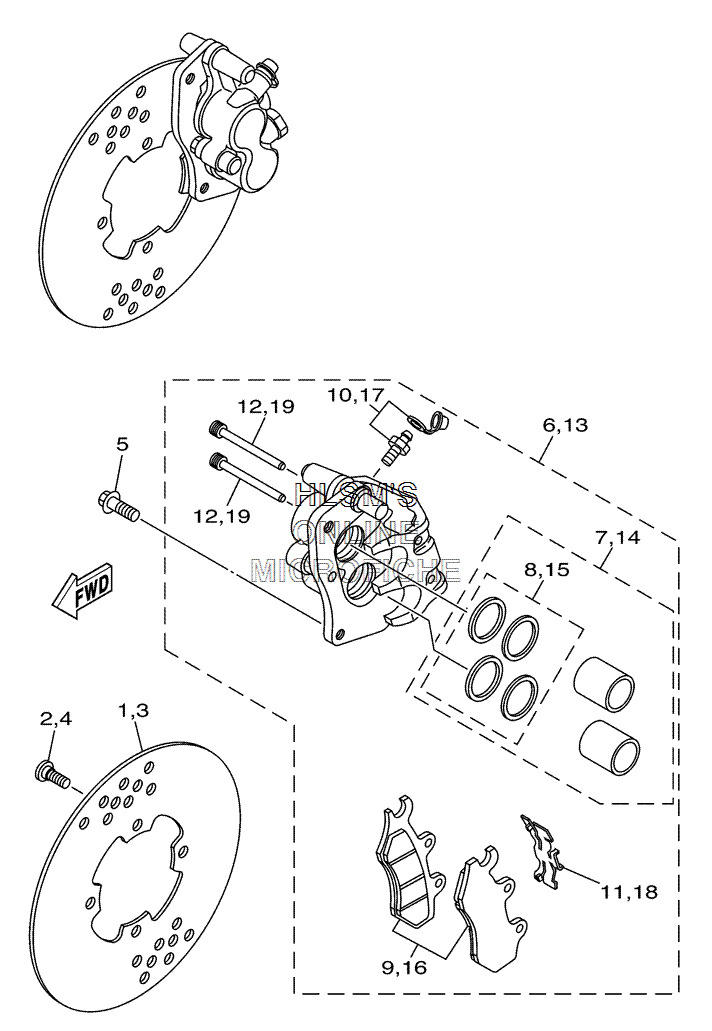

BRAKE - FRONT CALIPER для Yamaha RHINO - 2005 года выпуска`
-
№АртикулНазвание
-
15UG-F582T-00-00 DISC, BRAKE (LEFT)DISC, BRAKE (LEFT)
-
290149-08268-00 SCREWSCREW
-
35UG-F582T-00-00 DISC, BRAKE (LEFT)DISC, BRAKE (LEFT)
-
490149-08268-00 SCREWSCREW
-
590105-10082-00 BOLT, FLANGEBOLT, FLANGE
-
63LD-2580T-01-00 CALIPER ASSY. 1CALIPER ASSY. 1
-
73LD-W0057-00-00 ...PISTON ASSY., CALIPER...PISTON ASSY., CALIPER
-
83JD-W0047-00-00 ......CALIPER SEAL KIT......CALIPER SEAL KIT
-
93LD-W0045-00-00 ...BRAKE PAD KIT...BRAKE PAD KIT
-
101UY-W0048-50-00 ...BLEED SCREW KIT...BLEED SCREW KIT
-
113LD-25934-01-00 ...SPRING, PAD...SPRING, PAD
-
123LD-25924-00-00 ...PIN, PAD...PIN, PAD
-
133LD-2580U-01-00 CALIPER ASSY. 2CALIPER ASSY. 2
-
143LD-W0057-00-00 ...PISTON ASSY., CALIPER...PISTON ASSY., CALIPER
-
153JD-W0047-00-00 ......CALIPER SEAL KIT......CALIPER SEAL KIT
-
163LD-W0045-10-00 ...BRAKE PAD KIT...BRAKE PAD KIT
-
171UY-W0048-50-00 ...BLEED SCREW KIT...BLEED SCREW KIT
-
183LD-25934-01-00 ...SPRING, PAD...SPRING, PAD
-
193LD-25924-00-00 ...PIN, PAD...PIN, PAD
