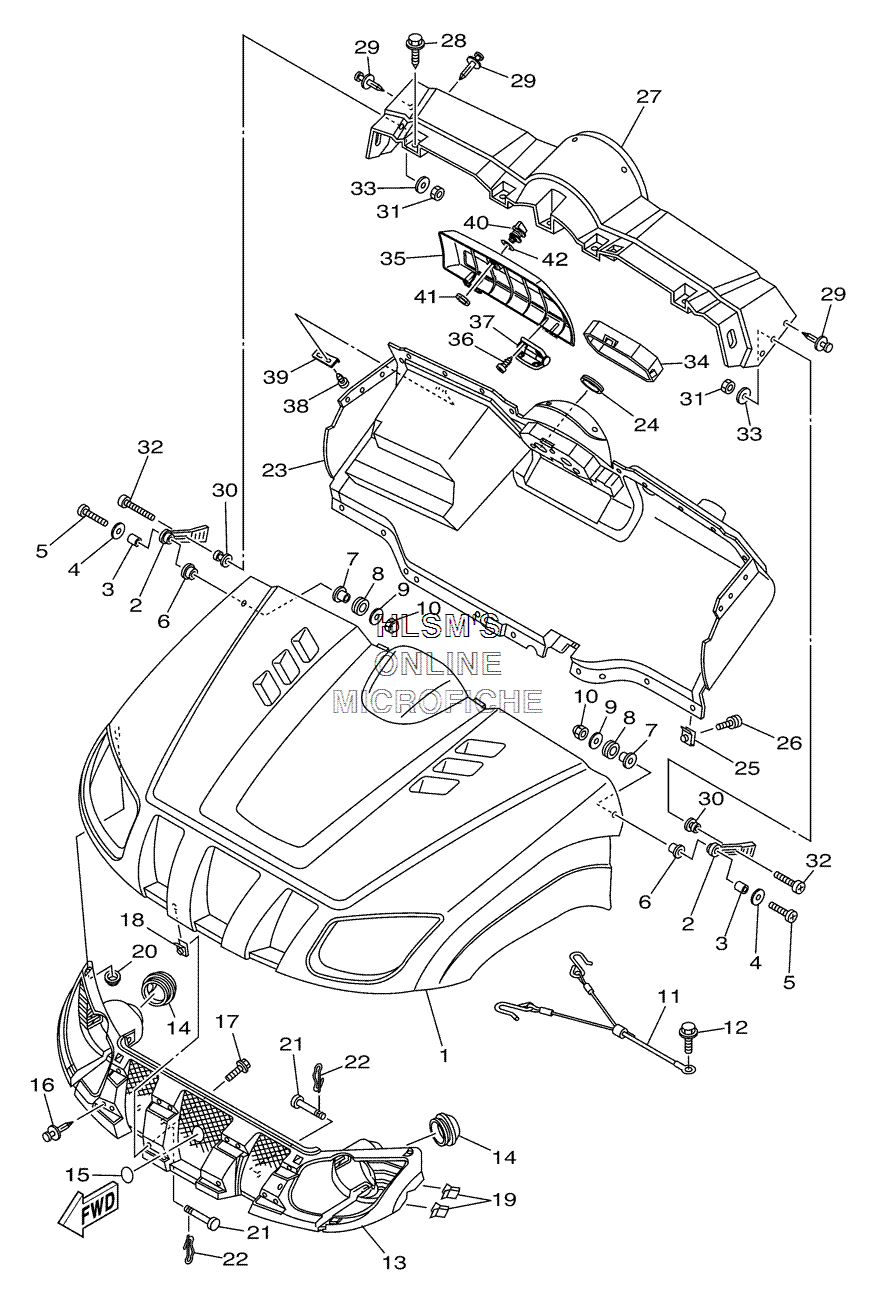

FENDER - FRONT для Yamaha RHINO HUNTER - 2005 года выпуска`
-
№АртикулНазвание
-
15UG-F1510-A0-00 FRONT FENDER COMP.FRONT FENDER COMP.
-
28V0-77171-00-00 BODY, LATCH 1BODY, LATCH 1
-
390387-06241-00 COLLARCOLLAR
-
490201-06557-00 WASHER, PLATEWASHER, PLATE
-
598907-06035-00 SCREW, BINDSCREW, BIND
-
690387-062M9-00 COLLARCOLLAR
-
790387-077M3-00 COLLARCOLLAR
-
890480-15235-00 GROMMETGROMMET
-
990201-06557-00 WASHER, PLATEWASHER, PLATE
-
1095307-06800-00 NUTNUT
-
115UG-F845L-00-00 STOPPER, OPENSTOPPER, OPEN
-
1295817-08012-00 BOLT, FLANGEBOLT, FLANGE
-
135UG-F8309-10-00 GRILLE, FRONTGRILLE, FRONT
-
145GH-28349-00-00 CAPCAP
-
155FU-F175B-01-00 TUNING FORK MARKTUNING FORK MARK
-
1690269-06804-00 RIVETRIVET
-
1790119-05001-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
1890183-050A0-00 NUT, SPRINGNUT, SPRING
-
195UG-F3447-00-00 CLIPCLIP
-
2090183-08800-00 NUT, SPRINGNUT, SPRING
-
2190240-13800-00 PIN, CLEVISPIN, CLEVIS
-
2290468-16191-00 CLIPCLIP
-
235UG-F3391-01-00 PANEL, FRONTPANEL, FRONT
-
2490480-40047-00 GROMMETGROMMET
-
2590183-050A0-00 NUT, SPRINGNUT, SPRING
-
2690119-05001-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
275UG-F3312-A0-00 PANEL, OUTER 2PANEL, OUTER 2
-
2890119-06060-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
2990269-06800-00 RIVETRIVET
-
308M6-77175-00-00 HOLDER, LATCHHOLDER, LATCH
-
3195707-06300-00 NUT, FLANGENUT, FLANGE
-
3298907-06035-00 SCREW, BINDSCREW, BIND
-
3390201-06074-00 WASHER, PLATEWASHER, PLATE
-
345UG-F837L-00-00 PANEL, CONSOLE 1PANEL, CONSOLE 1
-
355UG-K7736-00-00 LID, GLOVE BOXLID, GLOVE BOX
-
3690164-04800-00 SCREW, TAPPINGSCREW, TAPPING
-
375UG-F1797-00-00 HINGEHINGE
-
3890164-05800-00 SCREW, TAPPINGSCREW, TAPPING
-
395UG-F139T-00-00 BRACKET, COVERBRACKET, COVER
-
405UG-F16A0-00-00 LOCK ASSY.LOCK ASSY.
-
415UG-F1494-00-00 NUTNUT
-
425UG-F3139-00-00 GASKET, WASHERGASKET, WASHER
