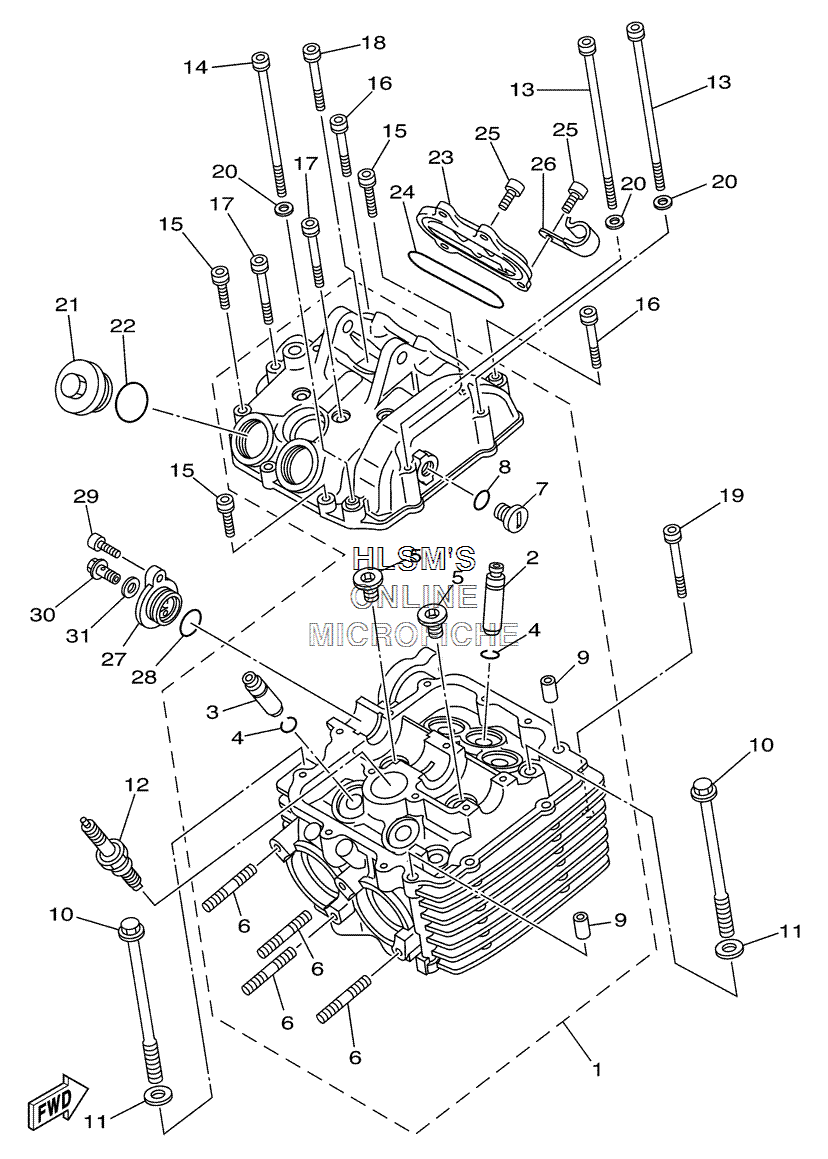

CYLINDER W/ HEAD ASSY. для Yamaha RHINO HUNTER - 2005 года выпуска`
-
№АртикулНазвание
-
15KM-11101-01-00 CYLINDER HEAD ASSY.CYLINDER HEAD ASSY.
-
25KM-11133-10-00 ...GUIDE, INTAKE VALVE...GUIDE, INTAKE VALVE
-
35KM-11134-10-00 ...GUIDE, EXHAUST VALVE...GUIDE, EXHAUST VALVE
-
493440-10085-00 ...CIRCLIP, OUTER...CIRCLIP, OUTER
-
590340-18101-00 ...PLUG, STRAIGHT SCREW...PLUG, STRAIGHT SCREW
-
695617-08625-00 ...BOLT, STUD...BOLT, STUD
-
790340-14117-00 ...PLUG, STRAIGHT SCREW...PLUG, STRAIGHT SCREW
-
893210-13657-00 ...O-RING...O-RING
-
999530-10116-00 ...PIN, DOWEL...PIN, DOWEL
-
1090105-09648-00 BOLT, WASHER BASEDBOLT, WASHER BASED
-
1190201-096J9-00 WASHER, PLATEWASHER, PLATE
-
1294701-00241-00 PLUG, SPARK (NGK DPR8EA-9)PLUG, SPARK (NGK DPR8EA-9)
-
1391317-06130-00 BOLTBOLT
-
1491317-06115-00 BOLTBOLT
-
1591317-06025-00 BOLTBOLT
-
1691317-06040-00 BOLTBOLT
-
1791317-06055-00 BOLTBOLT
-
1890109-063E9-00 BOLTBOLT
-
1991317-06050-00 BOLTBOLT
-
2092907-06600-00 WASHER, PLATEWASHER, PLATE
-
211L9-11186-00-00 COVER, CYLINDER HEAD SIDE 2COVER, CYLINDER HEAD SIDE 2
-
2293210-32172-00 O-RINGO-RING
-
233YF-11187-00-00 COVER, CYLINDER HEAD SIDE 3COVER, CYLINDER HEAD SIDE 3
-
2493210-71360-00 O-RINGO-RING
-
2591317-06018-00 BOLTBOLT
-
2690462-20003-00 CLAMPCLAMP
-
273TB-12215-01-00 CAP, TENSIONER CASECAP, TENSIONER CASE
-
2893210-19522-00 O-RINGO-RING
-
2990110-06093-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
3090401-06001-00 BOLT, UNIONBOLT, UNION
-
3190430-06192-00 GASKETGASKET
