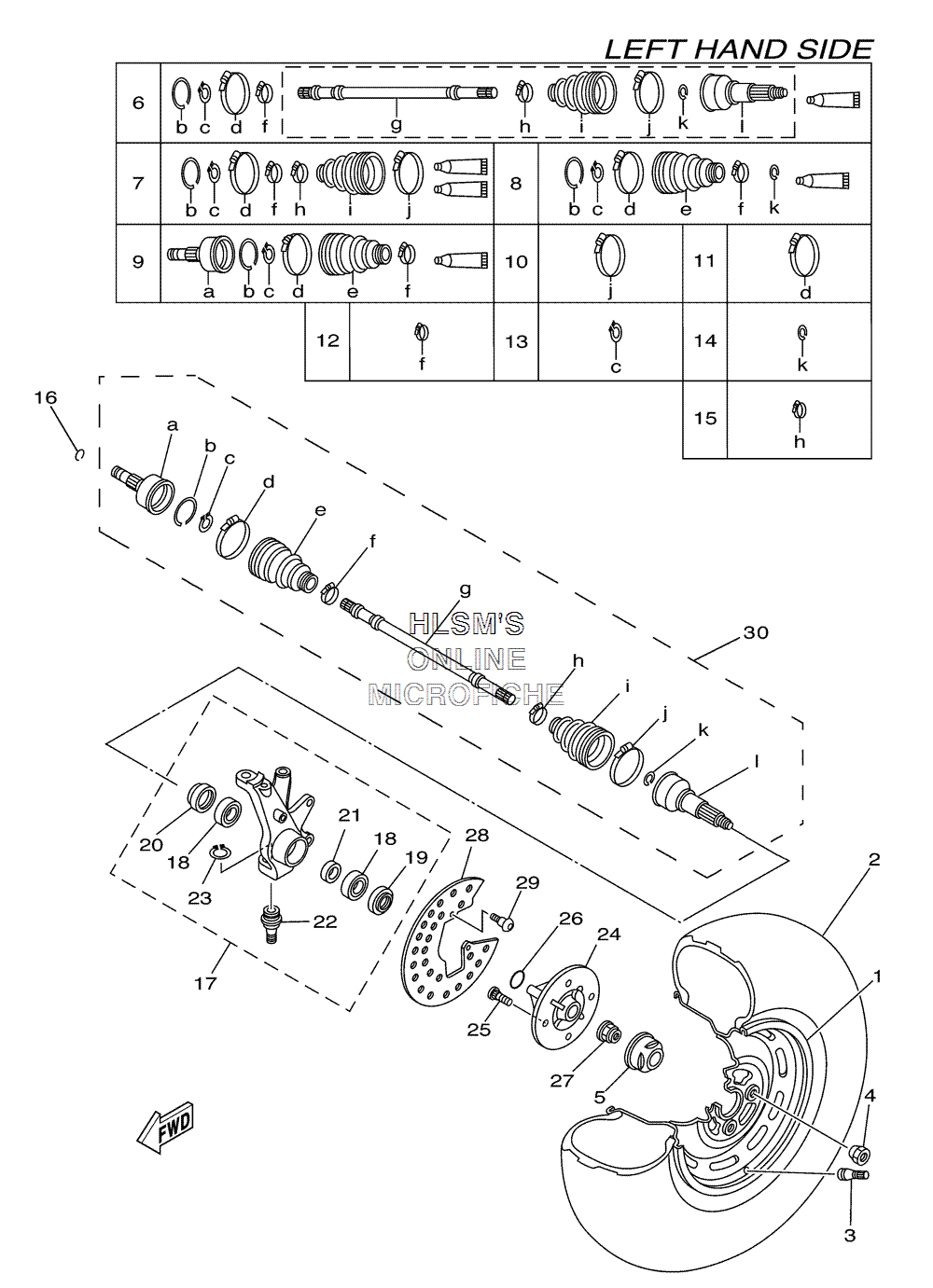

WHEEL - FRONT - LEFT для Yamaha RHINO HUNTER - 2005 года выпуска`
-
№АртикулНазвание
-
15UG-F5180-00-00 FRONT RIM (12 X 6.0)FRONT RIM (12 X 6.0)
-
294108-12804-00 TIRE (25X8-12 NHS) GOODYEARTIRE (25X8-12 NHS) GOODYEAR
-
393900-00813-00 VALVE, RIMVALVE, RIM
-
490179-10540-00 NUTNUT
-
55UG-F512A-00-00 CAP, WHEELCAP, WHEEL
-
65UG-F510F-10-00 BALL JOINT SETBALL JOINT SET
-
75UG-F510G-10-00 BOOT SET (BALL JOINT)BOOT SET (BALL JOINT)
-
85KM-2510H-10-00 BOOT SET (DOUBLE OFFSET JOINT)BOOT SET (DOUBLE OFFSET JOINT)
-
95KM-2510J-20-00 DOUBLE OFF SET JOINTDOUBLE OFF SET JOINT
-
105UG-F511G-00-00 BOOT BAND (BALL JOINT)BOOT BAND (BALL JOINT)
-
115UG-F511H-00-00 BOOT BAND (DOUBLE OFFSET JOINT)BOOT BAND (DOUBLE OFFSET JOINT)
-
123HN-2512G-01-00 BOOT BAND (SMALL)BOOT BAND (SMALL)
-
132HR-2512J-00-00 SNAP RINGSNAP RING
-
145UG-F512H-00-00 CIRCLIPCIRCLIP
-
155UG-F512G-00-00 BOOT BAND (SMALL)BOOT BAND (SMALL)
-
165KM-45531-10-00 CLIP, DRIVE SHAFTCLIP, DRIVE SHAFT
-
175UG-F3501-10-00 STEERING KNUCKLE ASSY. (LEFT)STEERING KNUCKLE ASSY. (LEFT)
-
1893306-006Y4-00 ...BEARING...BEARING
-
1993106-38046-00 ...OIL SEAL...OIL SEAL
-
2093106-38047-00 ...OIL SEAL...OIL SEAL
-
2190387-30008-00 ...COLLAR...COLLAR
-
225FU-F3549-00-00 ...BALL JOINT 1...BALL JOINT 1
-
2393410-32826-00 ...CIRCLIP, OUTER...CIRCLIP, OUTER
-
245UG-F5111-02-00 HUB, FRONTHUB, FRONT
-
2590114-10012-00 BOLT, RIBBED NECKBOLT, RIBBED NECK
-
2693210-27666-00 O-RINGO-RING
-
2790179-20006-00 NUTNUT
-
285UG-F514A-00-00 RING, WHEEL 1 (LEFT)RING, WHEEL 1 (LEFT)
-
2990149-06280-00 SCREWSCREW
-
305UG-F518F-10-00 FRONT DRIVE SHAFT ASSY. LHFRONT DRIVE SHAFT ASSY. LH
