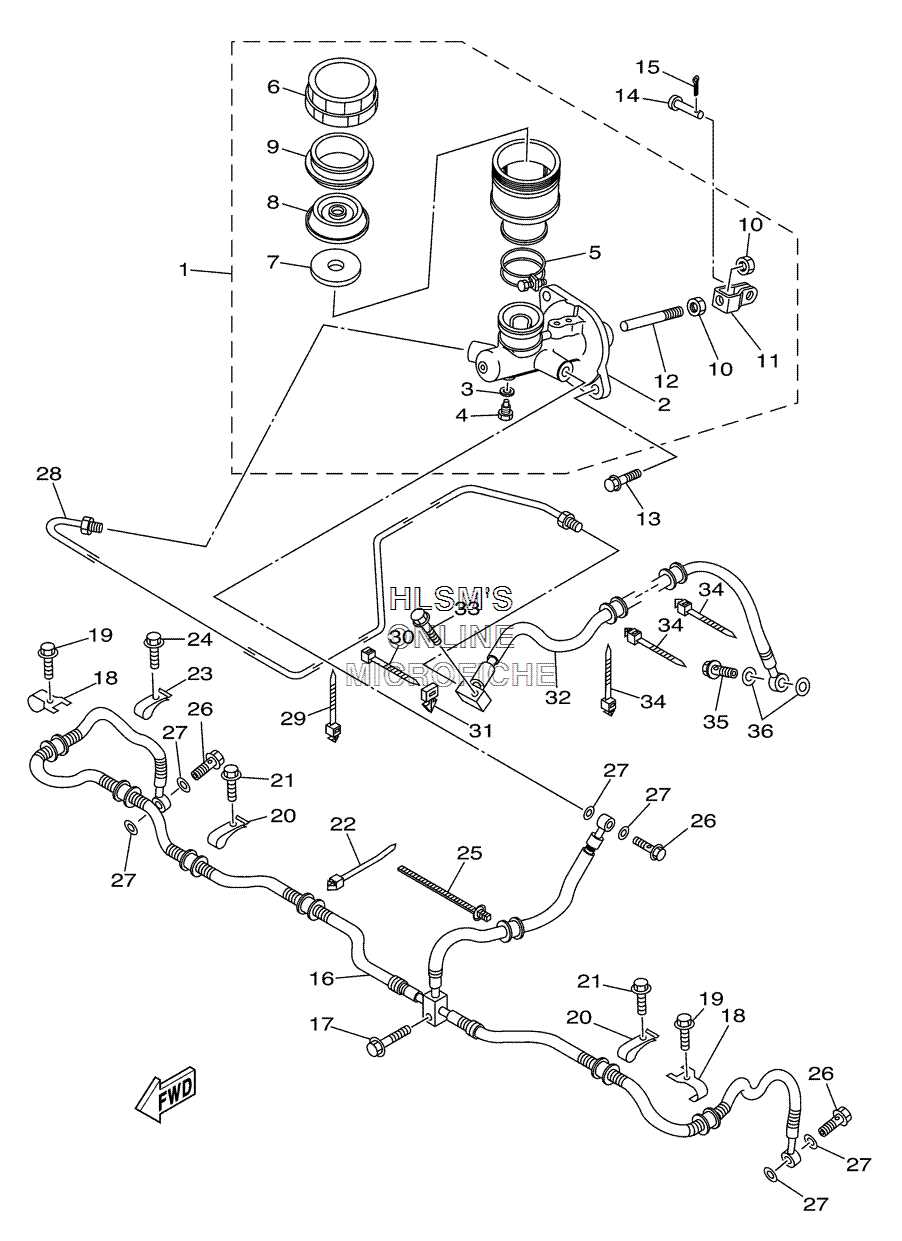

BRAKE - REAR MASTER CYLINDER для Yamaha RHINO HUNTER - 2005 года выпуска`
-
№АртикулНазвание
-
15UG-2583T-00-00 MASTER CYLINDER ASSY.MASTER CYLINDER ASSY.
-
25UG-W0042-00-00 ...CYLINDER KIT, MASTER...CYLINDER KIT, MASTER
-
35UG-25878-00-00 ...WASHER, OIL BOLT...WASHER, OIL BOLT
-
45UG-25877-00-00 ...BOLT, OIL 1...BOLT, OIL 1
-
55UG-25719-00-00 ...BAND...BAND
-
65UG-25852-00-00 ...CAP, RESERVOIR...CAP, RESERVOIR
-
75UG-25853-00-00 ...FLOAT, RESERVOIR...FLOAT, RESERVOIR
-
85UG-25854-00-00 ...DIAPHRAGM, RESERVOIR...DIAPHRAGM, RESERVOIR
-
95UG-25855-00-00 ...BUSH, DIAPHRAGM...BUSH, DIAPHRAGM
-
104SS-27218-00-00 ...NUT...NUT
-
112YK-27222-00-00 ...JOINT...JOINT
-
125UG-25880-00-00 ...PUSH ROD COMP....PUSH ROD COMP.
-
1390105-081A7-00 BOLT, WASHER BASEDBOLT, WASHER BASED
-
1490240-08124-00 PIN, CLEVISPIN, CLEVIS
-
1591401-20020-00 PIN, COTTERPIN, COTTER
-
165UG-F5872-00-00 HOSE, BRAKE 1HOSE, BRAKE 1
-
1795827-06025-00 BOLT, FLANGEBOLT, FLANGE
-
185ND-F5875-00-00 HOLDER, BRAKE HOSE 1HOLDER, BRAKE HOSE 1
-
1995827-06012-00 BOLT, FLANGEBOLT, FLANGE
-
205UG-F3192-00-00 BANDBAND
-
2195827-06016-00 BOLT, FLANGEBOLT, FLANGE
-
2290464-31827-00 CLAMPCLAMP
-
235UG-F3192-00-00 BANDBAND
-
2495827-06016-00 BOLT, FLANGEBOLT, FLANGE
-
2590464-20005-00 CLAMPCLAMP
-
2690401-10159-00 BOLT, UNIONBOLT, UNION
-
2790201-10118-00 WASHER, PLATEWASHER, PLATE
-
285UG-F5871-00-00 PIPE, BRAKEPIPE, BRAKE
-
2990464-20005-00 CLAMPCLAMP
-
3090464-31827-00 CLAMPCLAMP
-
315UG-F2465-00-00 HOLDERHOLDER
-
325UG-F5873-00-00 HOSE, BRAKE 2HOSE, BRAKE 2
-
3395827-06025-00 BOLT, FLANGEBOLT, FLANGE
-
3490464-20005-00 CLAMPCLAMP
-
3590401-10159-00 BOLT, UNIONBOLT, UNION
-
3690201-10118-00 WASHER, PLATEWASHER, PLATE
