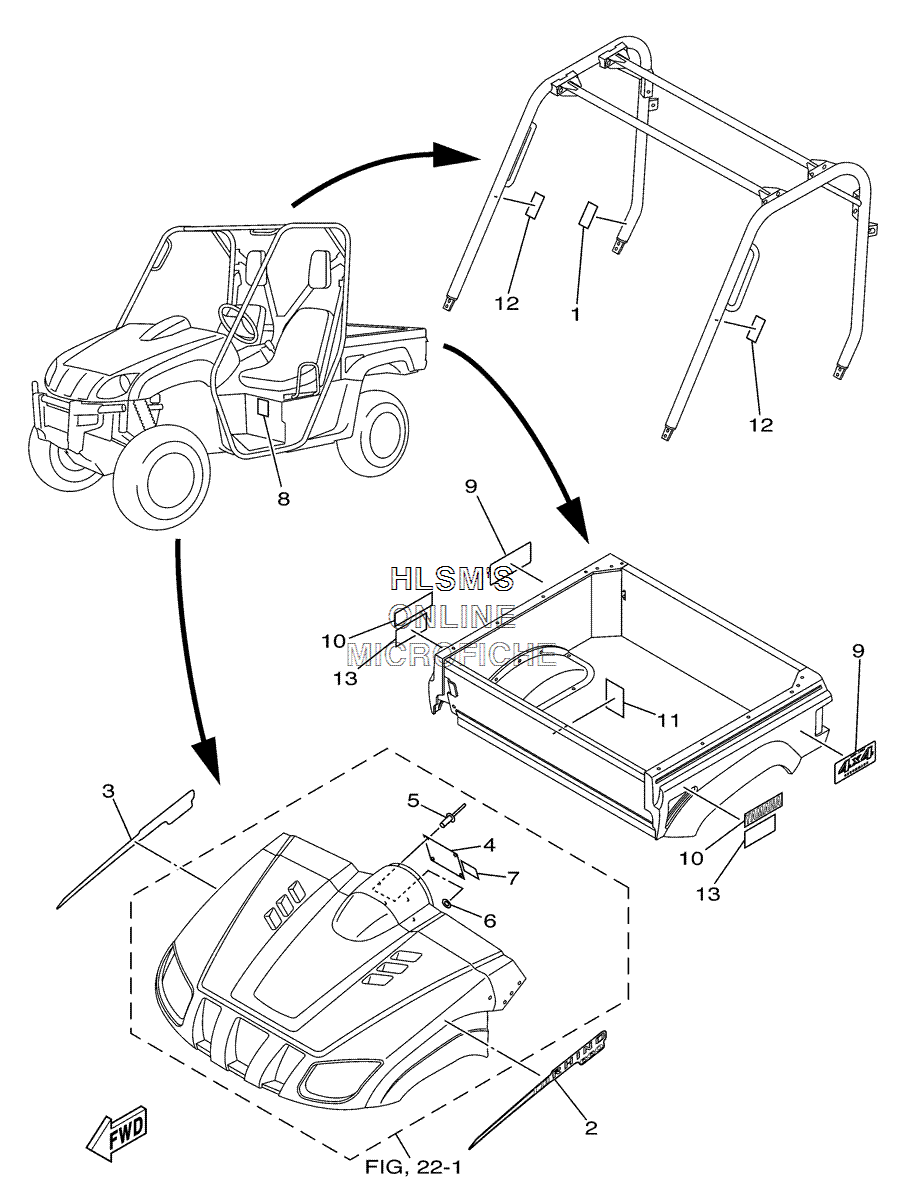

EMBLEM LABEL 1 для Yamaha RHINO HUNTER - 2005 года выпуска`
-
№АртикулНазвание
-
15UG-2179B-10-00 PLATE, EPA 3PLATE, EPA 3
-
25UG-F1781-30-00 EMBLEM 1EMBLEM 1
-
35UG-F1782-30-00 EMBLEM 2EMBLEM 2
-
45UG-F1568-01-00 LABEL, WARNINGLABEL, WARNING
-
54XE-F1539-10-00 RIVETRIVET
-
64XE-F1549-00-00 WASHER, FENDER MOLDWASHER, FENDER MOLD
-
75UG-F1558-00-00 LABEL, WARNING 2LABEL, WARNING 2
-
85UG-F1696-01-00 LABEL, CAUTIONLABEL, CAUTION
-
95UG-F163G-30-00 EMBLEM 1EMBLEM 1
-
105UG-F153A-30-00 EMBLEM, YAMAHAEMBLEM, YAMAHA
-
115UG-F4897-00-00 EMBLEMEMBLEM
-
125UG-K8483-00-00 LABEL WARNINGLABEL WARNING
-
135UG-K7764-00-00 LABEL, WARNING 4LABEL, WARNING 4
Все узлы модели:
- AIR CLEANER ASSY. W/ INTAKE
- ALTERNATE FOR METER
- BRAKE - FRONT CALIPER
- BRAKE - REAR CALIPER
- BRAKE - REAR MASTER CYLINDER
- CAMSHAFT W/ CHAIN
- CARBURETOR ASSY.
- CARRIER
- CLUTCH ASSY.
- CRANKCASE ASSY.
- CRANKCASE COVER
- CRANKSHAFT W/ PISTON ASSY.
- CYLINDER
- CYLINDER W/ HEAD ASSY.
- DRIVE SHAFT
- ELECTRICAL
- ELECTRICAL 2
- • EMBLEM LABEL 1
- EXHAUST ASSY.
- FENDER - FRONT
- FRAME
- FRONT DIFFERENTIAL
- FUEL TANK ASSY.
- GENERATOR ASSY.
- GUARD
- GUARD 2
- HEADLIGHT ASSY.
- MIDDLE DRIVE GEAR
- MODEL INFO - MANUALS
- OIL PIPE
- OIL PUMP
- RADIATOR W/ HOSES
- REAR ARM
- SEAT ASSY.
- SHIFT CAM FORK
- SHIFT SHAFT
- SIDE COVER
- STAND W/ FOOTREST
- STARTER CLUTCH
- STARTING MOTOR ASSY.
- SUSPENSION - FRONT FORK
- SUSPENSION - FRONT WHEEL
- SUSPENSION - REAR SHOCK
- TAILLIGHT ASSY.
- TRANSMISSION
- VALVE ASSY.
- WATER PUMP ASSY.
- WHEEL - FRONT - LEFT
- WHEEL - FRONT - RIGHT
- WHEEL - REAR - LEFT
- WHEEL - REAR - RIGHT
