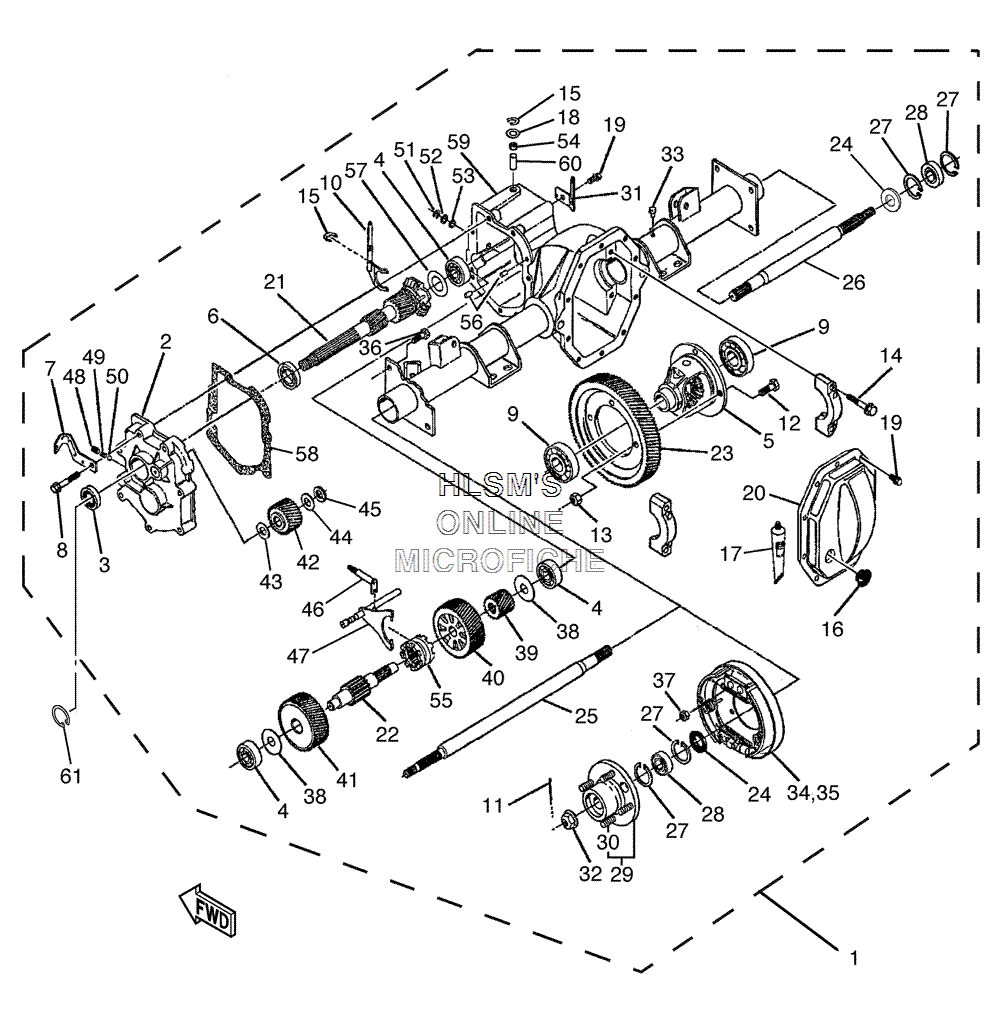

TRANSMISSION 1 для Yamaha PRO HAULER 700 - 2004 года выпуска

№

Артикул

Название
1

JN6-G6300-04-00 TRANS AXLE ASSY.

TRANS AXLE ASSY.

879 320 ₽
2

JN3-G6313-00-00 ...COVER, TRANSMISSION

...COVER, TRANSMISSION

53 390 ₽
3

93102-25868-00 ...OIL SEAL

...OIL SEAL

4 250 ₽
4

93306-303Y6-00 ...BEARING

...BEARING

10 550 ₽
5

JN6-G6410-00-00 ...DIFFERENTIAL ASSY.

...DIFFERENTIAL ASSY.

89 610 ₽
6

93306-005Y4-00 ...BEARING

...BEARING

14 800 ₽
7

JN6-G6555-00-00 ...BRACKET 2

...BRACKET 2

3 300 ₽
8

90105-08859-00 ...BOLT, FLANGE

...BOLT, FLANGE

2 040 ₽
9

93306-007Y0-00 ...BEARING

...BEARING

11 810 ₽
10

JN3-G633E-01-00 ...BAR 1

...BAR 1

15 430 ₽
11

91490-25025-00 ...PIN, COTTER

...PIN, COTTER

150 ₽
12

90101-10854-00 ...BOLT

...BOLT

2 200 ₽
13

90170-10840-00 ...NUT

...NUT

530 ₽
14

90105-10840-00 ...BOLT, WASHER BASED

...BOLT, WASHER BASED

1 260 ₽
15

JU0-F722H-00-00 ...RETAINER

...RETAINER

1 550 ₽
16

JN3-G6432-00-00 ...STOPPER

...STOPPER

1 880 ₽
17

JH7-G6136-00-00 ...QUICK GASKET 3 OZ.

...QUICK GASKET 3 OZ.

0 ₽
18

JU0-F723F-00-00 ...WASHER, SPECIAL

...WASHER, SPECIAL

2 670 ₽
19

90101-08856-00 ...BOLT

...BOLT

1 330 ₽
20

JN3-G6314-00-00 ...COVER, TRANSMISSION

...COVER, TRANSMISSION

11 330 ₽
21

JN3-G6320-01-00 ...INPUT SHAFT ASSY.

...INPUT SHAFT ASSY.

0 ₽
22

JN3-G633G-00-00 ...SHAFT

...SHAFT

105 050 ₽
23

JN3-G6355-00-00 ...GEAR, PRIMARY

...GEAR, PRIMARY

167 730 ₽
24

93101-24822-00 ...OIL SEAL, S-TYPE

...OIL SEAL, S-TYPE

2 830 ₽
25

JN3-G6511-00-00 ...SHAFT, REAR AXLE 1 (L.H)

...SHAFT, REAR AXLE 1 (L.H)

51 340 ₽
26

JN3-G6512-00-00 ...SHAFT, REAR AXLE 2 (R.H)

...SHAFT, REAR AXLE 2 (R.H)

39 840 ₽
27

93420-44805-00 ...CIRCLIP

...CIRCLIP

1 730 ₽
28

93306-004X5-00 ...BEARING

...BEARING

5 510 ₽
29

JN3-G6514-00-00 ...HUB, REAR AXLE

...HUB, REAR AXLE

62 050 ₽
30

90114-12804-00 ...BOLT, RIBBED NECK

...BOLT, RIBBED NECK

2 830 ₽
31

JN3-G6556-00-00 ...BRACKET 3

...BRACKET 3

1 520 ₽
32

90185-16833-00 ...NUT, SELF-LOCKING

...NUT, SELF-LOCKING

2 200 ₽
33

JH7-G5619-00-00 ...CAP

...CAP

1 880 ₽
34

JN6-F7290-03-00 ...BACKING PLATE ASSY. 2 (BRAKE 2 (L.H)

...BACKING PLATE ASSY. 2 (BRAKE 2 (L.H)

0 ₽
35

JN6-F7280-03-00 ...BACKING PLATE ASSY. 1 (BRAKE 3 (R.H)

...BACKING PLATE ASSY. 1 (BRAKE 3 (R.H)

0 ₽
36

90101-08855-00 ...BOLT

...BOLT

1 730 ₽
37

90170-08841-00 ...NUT

...NUT

1 030 ₽
38

90201-178H8-00 ...WASHER, PLATE

...WASHER, PLATE

2 830 ₽
39

JN3-G6316-00-00 ...GEAR, PINION 1

...GEAR, PINION 1

33 070 ₽
40

JN3-G6326-00-00 ...GEAR, WHEEL 1

...GEAR, WHEEL 1

82 050 ₽
41

JN3-G6327-00-00 ...GEAR, WHEEL 2

...GEAR, WHEEL 2

82 050 ₽
42

JN3-G6356-00-00 ...GEAR, IDLER

...GEAR, IDLER

29 450 ₽
43

90201-208H9-00 ...WASHER, PLATE

...WASHER, PLATE

1 580 ₽
44

90201-208J0-00 ...WASHER, PLATE

...WASHER, PLATE

1 580 ₽
45

93440-20813-00 ...CIRCLIP

...CIRCLIP

510 ₽
46

JN3-G638A-00-00 ...BAR, SHIFT 1

...BAR, SHIFT 1

11 330 ₽
47

JN6-G638E-00-00 ...BAR, SHIFT 2

...BAR, SHIFT 2

17 320 ₽
48

90113-08803-00 ...BOLT, SET

...BOLT, SET

720 ₽
49

90501-10852-00 ...SPRING, COMPRESSION

...SPRING, COMPRESSION

1 070 ₽
50

93500-06826-00 ...BALL

...BALL

1 550 ₽
51

93410-12822-00 ...CIRCLIP

...CIRCLIP

630 ₽
52

90202-12807-00 ...WASHER, PLATE

...WASHER, PLATE

850 ₽
53

93104-11829-00 ...OIL SEAL

...OIL SEAL

1 880 ₽
54

93109-10820-00 ...OIL SEAL

...OIL SEAL

2 830 ₽
55

JN3-G6153-00-00 ...COLLAR, GUIDE

...COLLAR, GUIDE

0 ₽
56

93606-10842-00 ...PIN, DOWEL

...PIN, DOWEL

370 ₽
57

JN3-G6344-00-00 ...SHIM, 0.76MM (0.030IN) (OPT)

...SHIM, 0.76MM (0.030IN) (OPT)

1 480 ₽
57

JN3-G6344-10-00 ...SHIM, 0.90MM (0.035IN) (OPT)

...SHIM, 0.90MM (0.035IN) (OPT)

750 ₽
57

JN3-G6344-20-00 ...SHIM, 1.00MM (0.040IN) (OPT)

...SHIM, 1.00MM (0.040IN) (OPT)

1 350 ₽
57

JN3-G6344-30-00 ...SHIM, 1.14MM (0.045IN) (OPT)

...SHIM, 1.14MM (0.045IN) (OPT)

1 030 ₽
57

JN3-G6344-40-00 ...SHIM, 1.27MM (0.050IN) (OPT)

...SHIM, 1.27MM (0.050IN) (OPT)

1 100 ₽
57

JN3-G6344-50-00 ...SHIM, 1.39MM (0.055IN) (OPT)

...SHIM, 1.39MM (0.055IN) (OPT)

0 ₽
57

JN3-G6344-60-00 ...SHIM, 1.52MM (0.060IN) (OPT)

...SHIM, 1.52MM (0.060IN) (OPT)

0 ₽
57

JN3-G6344-70-00 ...SHIM, 1.65MM (0.065IN) (OPT)

...SHIM, 1.65MM (0.065IN) (OPT)

1 100 ₽
57

JN3-G6344-80-00 ...SHIM, 0.38MM (0.015IN) (OPT)

...SHIM, 0.38MM (0.015IN) (OPT)

1 010 ₽
57

JN3-G6344-90-00 ...SHIM, 1.78MM (0.070IN) (OPT)

...SHIM, 1.78MM (0.070IN) (OPT)

0 ₽
57

JN3-G6344-A0-00 ...SHIM, 1.92MM (0.075IN) (OPT)

...SHIM, 1.92MM (0.075IN) (OPT)

0 ₽
57

JN3-G6344-B0-00 ...SHIM, 2.03MM (0.080IN) (OPT)

...SHIM, 2.03MM (0.080IN) (OPT)

0 ₽
57

JN3-G6344-C0-00 ...SHIM, 2.12MM (0.085IN) (OPT)

...SHIM, 2.12MM (0.085IN) (OPT)

0 ₽
57

JN3-G6344-D0-00 ...SHIM, 2.29MM (0.090IN) (OPT)

...SHIM, 2.29MM (0.090IN) (OPT)

0 ₽
58

JN3-G6319-00-00 ...GASKET

...GASKET

2 670 ₽
59

JN3-G6290-01-00 ...CASE ASSY.

...CASE ASSY.

154 190 ₽
60

JU0-G6164-00-00 ...BEARING 1

...BEARING 1

850 ₽
61

93410-25017-00 CIRCLIP, S-TYPE

CIRCLIP, S-TYPE

250 ₽
