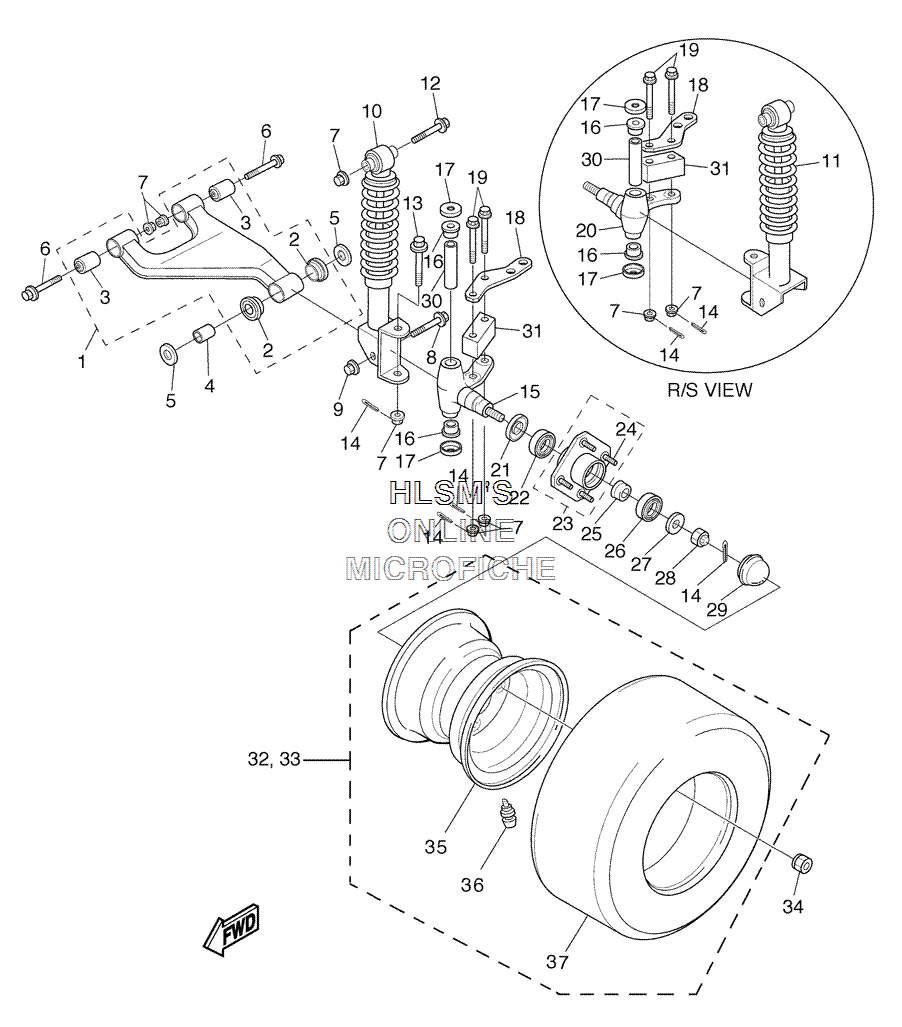

FRONT SUSPENSION WHEEL для Yamaha PRO HAULER 700 - 2004 года выпуска`
-
№АртикулНазвание
-
1JU0-F3570-20-00 FRONT LOWER ARM COMP.FRONT LOWER ARM COMP.
-
290381-18001-00 ...BUSH, SOLID...BUSH, SOLID
-
32HR-23526-00-00 ...BUSH...BUSH
-
490387-12016-00 COLLARCOLLAR
-
5401-22128-01-00 COVER, THRUST 1COVER, THRUST 1
-
690105-10890-00 BOLT, WASHER BASEDBOLT, WASHER BASED
-
795607-10200-00 NUT, U FLANGENUT, U FLANGE
-
895817-12080-00 BOLT, FLANGEBOLT, FLANGE
-
99561P-12100-00 NUTNUT
-
10JU7-F3350-00-00 SHOCK ABSORBER ASSY.SHOCK ABSORBER ASSY.
-
11JU7-F3390-00-00 SHOCK ABSORBER ASSY. 2SHOCK ABSORBER ASSY. 2
-
1295807-10065-00 BOLT, FLANGEBOLT, FLANGE
-
1390105-10064-00 BOLT, FLANGEBOLT, FLANGE
-
1491401-25020-00 PIN, COTTERPIN, COTTER
-
15JU0-F3511-00-00 KNUCKLE, STEERING 1KNUCKLE, STEERING 1
-
1690381-17067-00 BUSH, SOLIDBUSH, SOLID
-
172NL-23517-00-00 COVER, THRUST 1COVER, THRUST 1
-
18JU7-F3512-00-00 ARM, KNUCKLE 1ARM, KNUCKLE 1
-
1990105-10774-00 BOLT, WASHER BASEDBOLT, WASHER BASED
-
20JU0-F3521-00-00 KNUCKLE, STEERING 2KNUCKLE, STEERING 2
-
2193102-30083-00 OIL SEAL, SD-TYPEOIL SEAL, SD-TYPE
-
2293306-204X0-00 BEARINGBEARING
-
23JG5-WF511-10-00 HUB, FRONTHUB, FRONT
-
2490114-12800-00 ...BOLT, RIBBED NECK...BOLT, RIBBED NECK
-
2590387-241M7-00 COLLARCOLLAR
-
2693306-005Y3-00 BEARINGBEARING
-
2790209-32832-00 WASHERWASHER
-
2895607-14100-00 NUT, UNUT, U
-
29JN6-F5118-00-00 COVER, HUB DUSTCOVER, HUB DUST
-
302NL-23448-00-00 SPACERSPACER
-
31JU7-F3118-00-00 SPACERSPACER
-
32JW4-F5100-00-00 WHEEL ASSY. (20X10-8/4/244) LHWHEEL ASSY. (20X10-8/4/244) LH
-
33JW4-F5109-00-00 WHEEL ASSY., 2 (20X10-8/4/244) RHWHEEL ASSY., 2 (20X10-8/4/244) RH
-
3490179-12262-00 NUTNUT
-
35JW4-F5180-00-00 ......RIM, BLACK......RIM, BLACK
-
3693900-00815-00 ......VALVE STEM......VALVE STEM
-
3794110-08801-00 ......TIRE (DURO DESERT)......TIRE (DURO DESERT)
