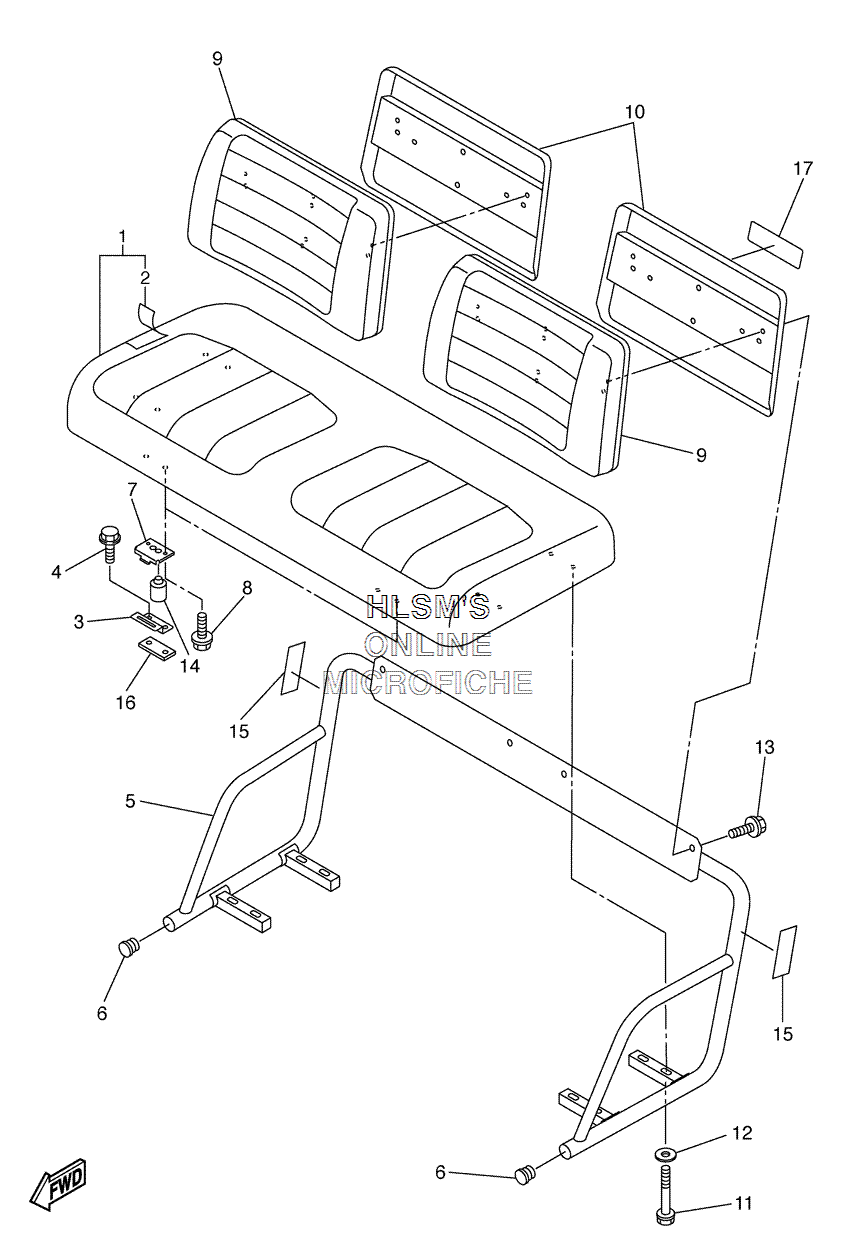

SEAT ASSY. для Yamaha PRO HAULER 700 - 2004 года выпуска`
-
№АртикулНазвание
-
1JW4-K8401-00-00 SEAT SUB-ASSY., CUSHIONSEAT SUB-ASSY., CUSHION
-
2JW4-K8404-00-00 ...COVER, SEAT...COVER, SEAT
-
3JF2-K8427-00-00 HINGE, SEAT 2HINGE, SEAT 2
-
490105-06903-00 BOLT, WASHER BASEDBOLT, WASHER BASED
-
5JU7-K8420-00-00 SEAT ASSY. 2SEAT ASSY. 2
-
6JU7-F111A-00-00 CAP, MAIN PIPECAP, MAIN PIPE
-
7JN3-K8426-01-00 HINGE, SEAT 1HINGE, SEAT 1
-
890119-069UD-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
9JW4-K8402-00-00 SEAT SUB ASSY., BACKSEAT SUB ASSY., BACK
-
10JJ3-K8413-10-00 COVER, SEAT BACK (BLACK)COVER, SEAT BACK (BLACK)
-
1190119-069UW-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
1290201-068G0-00 WASHER, PLATEWASHER, PLATE
-
1390119-06837-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
14JU7-F4747-00-00 DAMPER, SEATDAMPER, SEAT
-
155UG-K7764-00-00 LABEL, WARNING 4LABEL, WARNING 4
-
16JU7-K8478-10-00 WASHER, PLATEWASHER, PLATE
-
17JU7-K7767-00-00 LABEL, WARNING 7LABEL, WARNING 7
