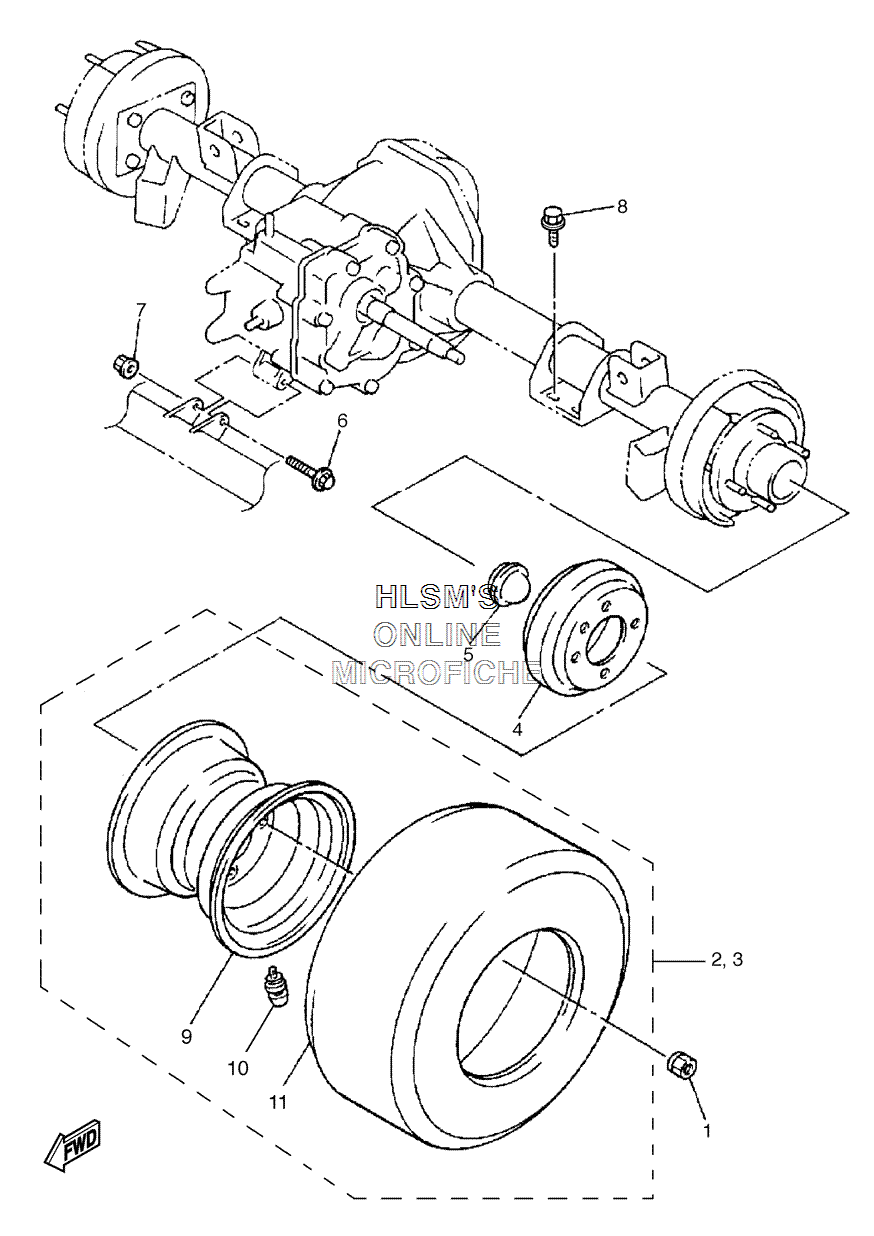

REAR AXLE MOUNT WHEEL для Yamaha PRO HAULER 700 - 2004 года выпуска`
-
№АртикулНазвание
-
190179-12262-00 NUTNUT
-
2JW4-F5100-00-00 WHEEL ASSY. (20X10-8/4/244) LHWHEEL ASSY. (20X10-8/4/244) LH
-
3JW4-F5109-00-00 WHEEL ASSY., 2 (20X10-8/4/244) RHWHEEL ASSY., 2 (20X10-8/4/244) RH
-
4J55-G6521-10-00 DRUMDRUM
-
5JN6-F5118-00-00 COVER, HUB DUSTCOVER, HUB DUST
-
69581P-08075-00 BOLT, FLANGEBOLT, FLANGE
-
795707-08500-00 NUT, FLANGENUT, FLANGE
-
89751P-10620-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
9JW4-F5180-00-00 RIM, BLACKRIM, BLACK
-
1093900-00815-00 VALVE STEMVALVE STEM
-
1194110-08801-00 TIRE (DURO DESERT)TIRE (DURO DESERT)
