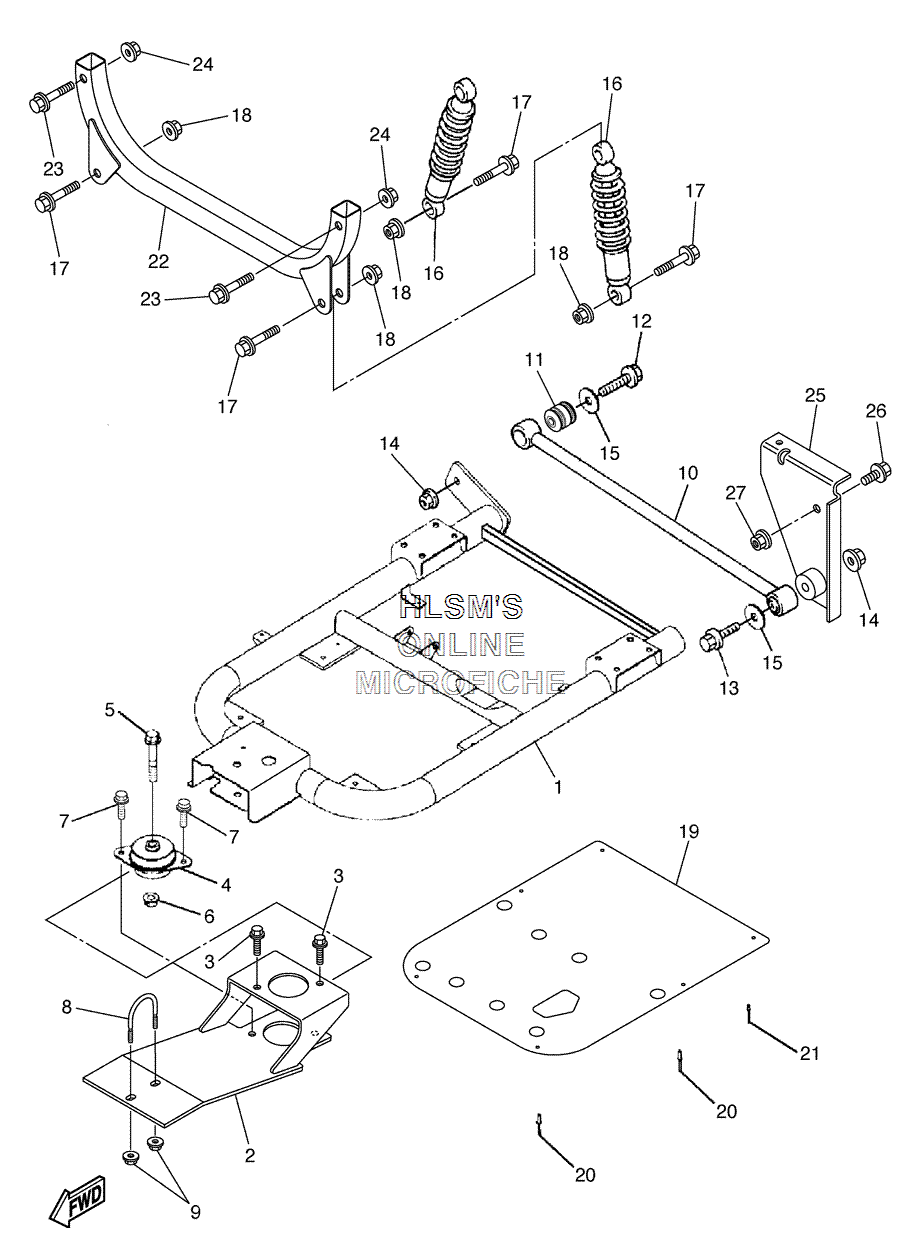

SUSPENSION - REAR ARM W/ SHOCK для Yamaha PRO HAULER 1000 - 2004 года выпуска`
-
№АртикулНазвание
-
1JN6-F2110-02-00 REAR ARM COMP.REAR ARM COMP.
-
2JU9-F2403-10-00 UNDER BRACKET COMPUNDER BRACKET COMP
-
39581P-10020-00 BOLT, FLANGEBOLT, FLANGE
-
4JN6-F2123-10-00 BUSH 1BUSH 1
-
590105-13864-00 BOLT, WASHER BASEDBOLT, WASHER BASED
-
690179-13878-00 NUTNUT
-
79581P-10020-00 BOLT, FLANGEBOLT, FLANGE
-
8JU9-F1631-00-00 BOLT 1BOLT 1
-
99560P-10200-00 NUT, FLANGENUT, FLANGE
-
10JN6-F217G-00-00 ROD, CONNECTING ASSY.ROD, CONNECTING ASSY.
-
11JN6-F2124-10-00 BUSH 2BUSH 2
-
129581P-12065-00 BOLT, FLANGEBOLT, FLANGE
-
139581P-12090-00 BOLT, FLANGEBOLT, FLANGE
-
149560P-12200-00 NUT, FLANGENUT, FLANGE
-
1590201-128S4-00 WASHER, PLATEWASHER, PLATE
-
16JR6-F2210-00-00 SHOCK ABSORBER ASSY., REARSHOCK ABSORBER ASSY., REAR
-
179581P-12065-00 BOLT, FLANGEBOLT, FLANGE
-
1890185-12072-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
19JN6-F2128-01-00 COVER, THRUST 1COVER, THRUST 1
-
2090267-48850-00 RIVET, BLINDRIVET, BLIND
-
2190267-40851-00 RIVET, BLINDRIVET, BLIND
-
22JU9-F5920-00-00 SUPT. BRKT. ASSY.SUPT. BRKT. ASSY.
-
239581P-12065-00 BOLT, FLANGEBOLT, FLANGE
-
2490185-12072-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
25JU9-F253H-00-00 BRKT., ROD PLATE 2BRKT., ROD PLATE 2
-
269581P-12025-00 BOLT, FLANGEBOLT, FLANGE
-
279560P-12200-00 NUT, FLANGENUT, FLANGE
