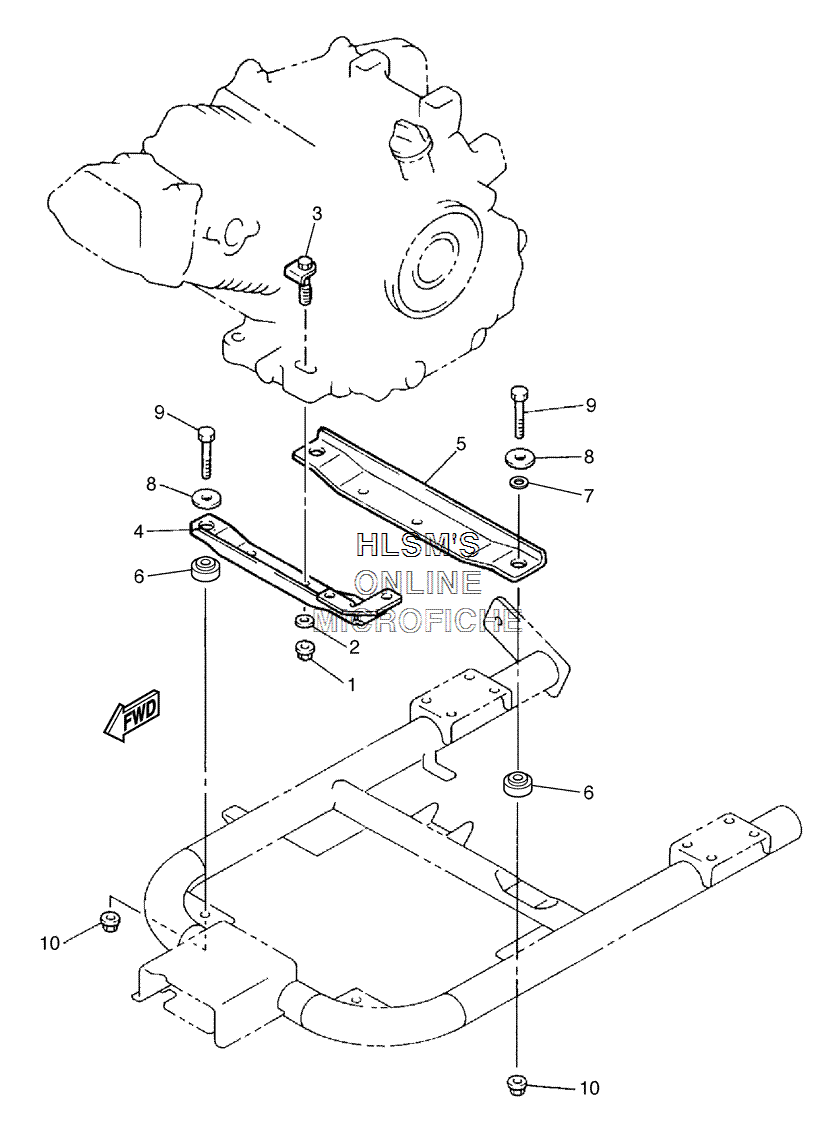

ENGINE BRACKET для Yamaha PRO HAULER 1000 - 2004 года выпуска
-
№АртикулНазвание
-
19560P-10200-00 NUT, FLANGENUT, FLANGE
-
29290P-10200-00 WASHERWASHER
-
3JN6-F1481-00-00 BOLT, ENGINE MOUNTING 1BOLT, ENGINE MOUNTING 1
-
4JN6-F1411-00-00 BRACKET, ENGINE 1BRACKET, ENGINE 1
-
5JN6-F1419-02-00 BRACKET, ENGINE 2BRACKET, ENGINE 2
-
6JR3-F1459-00-00 SPACERSPACER
-
79299R-08200-00 WASHERWASHER
-
890201-088K6-00 WASHER, PLATEWASHER, PLATE
-
990101-08880-00 BOLTBOLT
-
1090179-08885-00 NUTNUT
