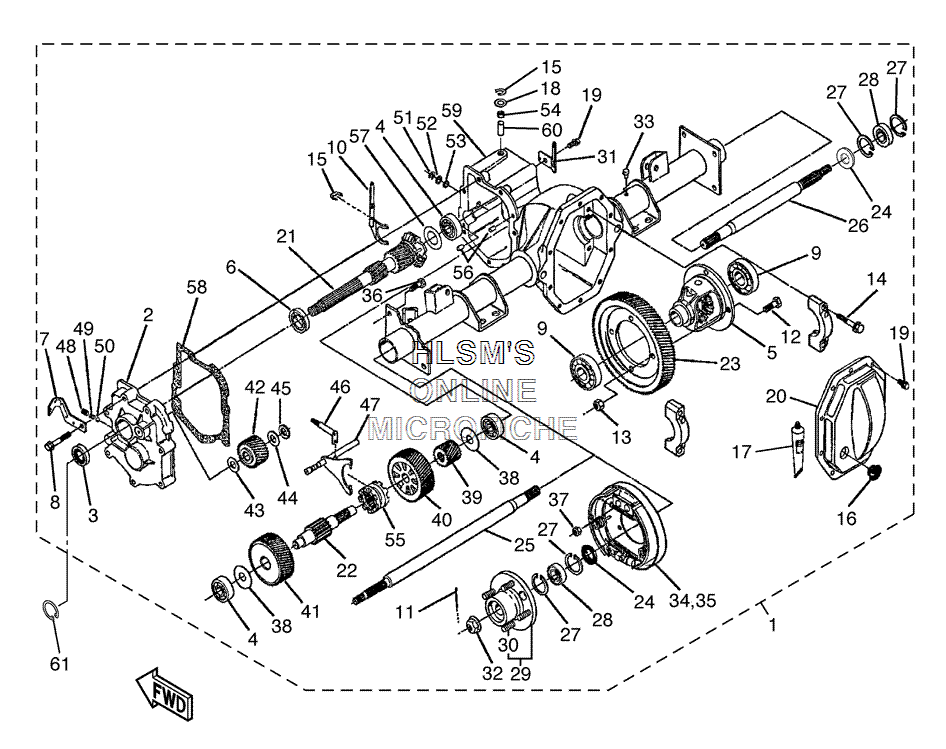

TRANSMISSION 1 для Yamaha PRO HAULER 1000 - 2004 года выпуска`
-
№АртикулНазвание
-
1JU9-G6300-00-00 TRANS AXLE ASSY.TRANS AXLE ASSY.
-
2JN3-G6313-00-00 ...COVER, TRNSMISSION...COVER, TRNSMISSION
-
393102-25868-00 ...OIL SEAL...OIL SEAL
-
493306-303Y6-00 ...BEARING...BEARING
-
5JN6-G6410-00-00 ...DIFFERENTIAL ASSY....DIFFERENTIAL ASSY.
-
693306-005Y4-00 ...BEARING...BEARING
-
7JN6-G6555-00-00 ...BRACKET 2...BRACKET 2
-
890105-08859-00 ...BOLT, FLANGE...BOLT, FLANGE
-
993306-007Y0-00 ...BEARING...BEARING
-
10JN3-G633E-01-00 ...BAR 1...BAR 1
-
1190252-36801-00 ...PIN, COTTER...PIN, COTTER
-
1290101-10854-00 ...BOLT...BOLT
-
1390170-10840-00 ...NUT...NUT
-
1490105-10840-00 ...BOLT, WASHER BASED...BOLT, WASHER BASED
-
15JU0-F722H-00-00 ...RETAINER...RETAINER
-
16JN3-G6432-00-00 ...STOPPER...STOPPER
-
17JH7-G6136-00-00 ...SEAL 1...SEAL 1
-
18JU0-F723F-00-00 ...WASHER, SPECIAL...WASHER, SPECIAL
-
1990101-08856-00 ...BOLT...BOLT
-
20JN3-G6314-00-00 ...COVER, TRANSMISSION...COVER, TRANSMISSION
-
21JR6-G6320-01-00 ...INPUT SHAFT ASSY....INPUT SHAFT ASSY.
-
22JN3-G633G-00-00 ...SHAFT...SHAFT
-
23JN3-G6355-00-00 ...GEAR, PRIMARY...GEAR, PRIMARY
-
2493101-31836-00 ...OIL SEAL...OIL SEAL
-
25JU9-G6511-00-00 ...SHAFT, REAR AXLE 1 (L.H)...SHAFT, REAR AXLE 1 (L.H)
-
26JU9-G6512-00-00 ...SHAFT, REAR AXLE 2 (R.H)...SHAFT, REAR AXLE 2 (R.H)
-
2793420-52806-00 ...CIRCLIP...CIRCLIP
-
2893306-205X2-00 ...BEARING...BEARING
-
29JR3-G6514-00-00 ...HUB, REAR AXLE...HUB, REAR AXLE
-
3090114-12804-00 ...BOLT, RIBBED NECK...BOLT, RIBBED NECK
-
31JN3-G6556-00-00 ...BRACKET 3...BRACKET 3
-
3290185-19842-00 ...NUT, SELF-LOCKING...NUT, SELF-LOCKING
-
33JH7-G5619-00-00 ...CAP...CAP
-
34JN6-F7290-03-00 ...BACKING PLATE ASSY. 2 (SEE BRAKE 2 (L.H)...BACKING PLATE ASSY. 2 (SEE BRAKE 2 (L.H)
-
35JN6-F7280-03-00 ...BACKING PLATE ASSY. 1 (SEE BRAKE 3 (R.H)...BACKING PLATE ASSY. 1 (SEE BRAKE 3 (R.H)
-
3690101-08855-00 ...BOLT...BOLT
-
3790170-08841-00 ...NUT...NUT
-
3890201-178H8-00 ...WASHER, PLATE...WASHER, PLATE
-
39JN3-G6316-00-00 ...GEAR, PINION 1...GEAR, PINION 1
-
40JR6-G6326-00-00 ...GEAR, WHEEL 1...GEAR, WHEEL 1
-
41JN3-G6327-00-00 ...GEAR, WHEEL 2...GEAR, WHEEL 2
-
42JN3-G6356-00-00 ...GEAR, IDLER...GEAR, IDLER
-
4390201-208H9-00 ...WASHER, PLATE...WASHER, PLATE
-
4490201-208J0-00 ...WASHER, PLATE...WASHER, PLATE
-
4593440-20813-00 ...CIRCLIP...CIRCLIP
-
46JN3-G638A-00-00 ...BAR, SHIFT 1...BAR, SHIFT 1
-
47JN6-G638E-00-00 ...BAR, SHIFT 2...BAR, SHIFT 2
-
4890113-08803-00 ...BOLT, SET...BOLT, SET
-
4990501-10852-00 ...SPRING, COMPRESSION...SPRING, COMPRESSION
-
5093500-06826-00 ...BALL...BALL
-
5193410-12822-00 ...CIRCLIP...CIRCLIP
-
5290202-12807-00 ...WASHER, PLATE...WASHER, PLATE
-
5393104-11829-00 ...OIL SEAL...OIL SEAL
-
5493109-10820-00 ...OIL SEAL...OIL SEAL
-
55JN3-G6153-00-00 ...COLLAR, GUIDE...COLLAR, GUIDE
-
5693606-10842-00 ...PIN, DOWEL...PIN, DOWEL
-
57JN3-G6344-00-00 ...SHIM, 0.76MM (0.030IN) (OPT)...SHIM, 0.76MM (0.030IN) (OPT)
-
57JN3-G6344-10-00 ...SHIM, 0.90MM (0.035IN) (OPT)...SHIM, 0.90MM (0.035IN) (OPT)
-
57JN3-G6344-20-00 ...SHIM, 1.00MM (0.040IN) (OPT)...SHIM, 1.00MM (0.040IN) (OPT)
-
57JN3-G6344-30-00 ...SHIM, 1.14MM (0.045IN) (OPT)...SHIM, 1.14MM (0.045IN) (OPT)
-
57JN3-G6344-40-00 ...SHIM, 1.27MM (0.050IN) (OPT)...SHIM, 1.27MM (0.050IN) (OPT)
-
57JN3-G6344-50-00 ...SHIM, 1.39MM (0.055IN) (OPT)...SHIM, 1.39MM (0.055IN) (OPT)
-
57JN3-G6344-60-00 ...SHIM, 1.52MM (0.060IN) (OPT)...SHIM, 1.52MM (0.060IN) (OPT)
-
57JN3-G6344-70-00 ...SHIM, 1.65MM (0.065IN) (OPT)...SHIM, 1.65MM (0.065IN) (OPT)
-
57JN3-G6344-80-00 ...SHIM, 0.38MM (0.015IN) (OPT)...SHIM, 0.38MM (0.015IN) (OPT)
-
57JN3-G6344-90-00 ...SHIM, 1.78MM (0.070IN) (OPT)...SHIM, 1.78MM (0.070IN) (OPT)
-
57JN3-G6344-A0-00 ...SHIM, 1.92MM (0.075IN) (OPT)...SHIM, 1.92MM (0.075IN) (OPT)
-
57JN3-G6344-B0-00 ...SHIM, 2.03MM (0.080IN) (OPT)...SHIM, 2.03MM (0.080IN) (OPT)
-
57JN3-G6344-C0-00 ...SHIM, 2.12MM (0.085IN) (OPT)...SHIM, 2.12MM (0.085IN) (OPT)
-
57JN3-G6344-D0-00 ...SHIM, 2.29MM (0.090IN) (OPT)...SHIM, 2.29MM (0.090IN) (OPT)
-
58JN3-G6319-00-00 ...GASKET...GASKET
-
59JU9-G6290-02-00 ...CASE ASSY....CASE ASSY.
-
60JU0-G6164-00-00 ...BEARING 1...BEARING 1
-
6193410-25017-00 CIRCLIP, S-TYPECIRCLIP, S-TYPE
