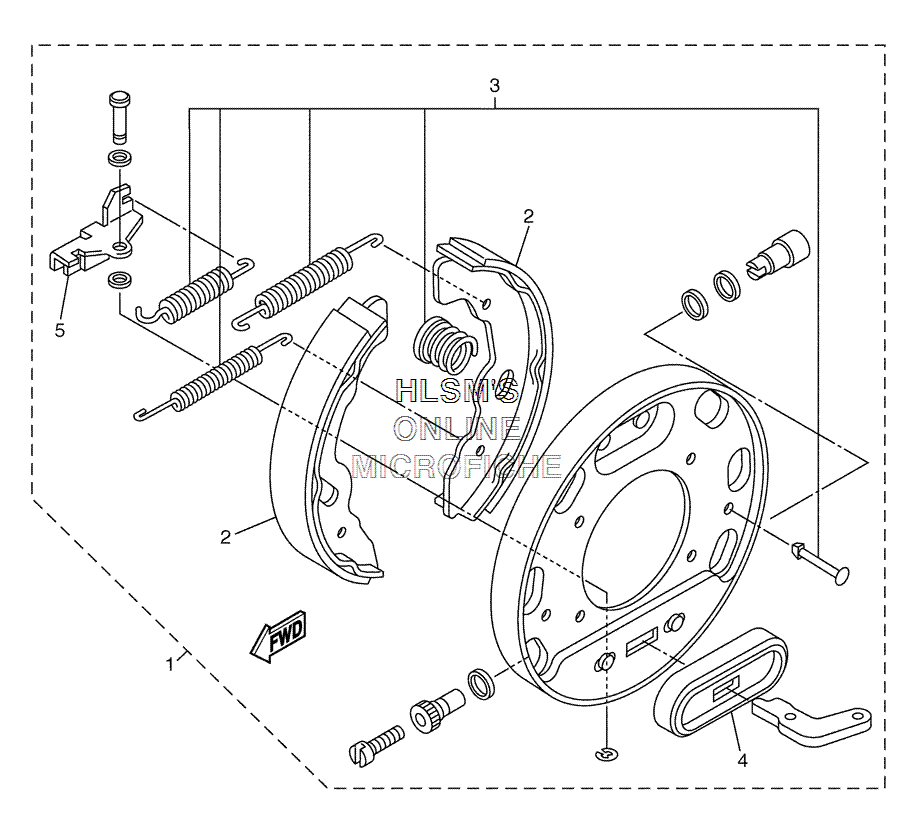

BRAKE - PLATE - RIGHT для Yamaha PRO HAULER 1000 - 2004 года выпуска`
-
№АртикулНазвание
-
1JN6-F7280-03-00 BACKING PLATE ASSY. 1 (R/S FRONT & REAR)BACKING PLATE ASSY. 1 (R/S FRONT & REAR)
-
2JN6-F5341-01-00 ...BRAKE SHOE SET...BRAKE SHOE SET
-
3JN6-F819G-00-00 ...SPRING SET-1 WHEEL...SPRING SET-1 WHEEL
-
4JN6-F7286-00-00 ...COVER, DUST...COVER, DUST
-
5JN6-F722F-00-00 ...LEVER, ADJUSTOR (RH)...LEVER, ADJUSTOR (RH)
