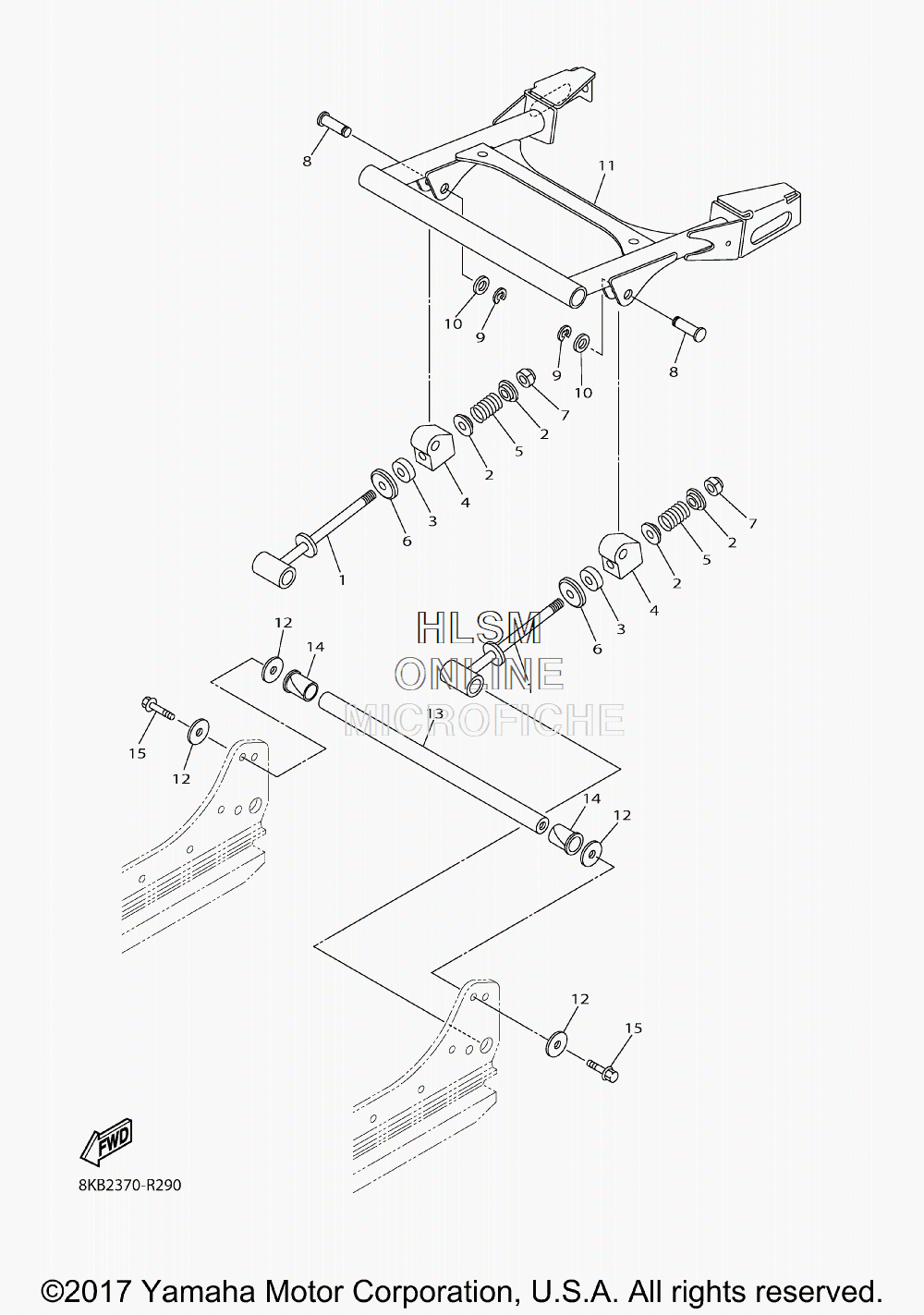

PIVOT ARM W/ SHOCK для Yamaha VK PROFESSIONAL II - 2018 года выпуска`
-
№АртикулНазвание
-
183R-47337-10-00 SHAFT, PIVOTSHAFT, PIVOT
-
283R-23768-00-00 SEAT, SPRING 1SEAT, SPRING 1
-
383R-47335-00-00 SPRINGSPRING
-
48KA-47446-00-00 HOOK 1HOOK 1
-
590501-380A0-00 SPRING, COMPRESSIONSPRING, COMPRESSION
-
68KW-23768-00-00 SEAT, SPRING 1SEAT, SPRING 1
-
790185-12058-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
890249-12006-00 PINPIN
-
999009-12400-00 CIRCLIPCIRCLIP
-
1090201-12055-00 WASHER, PLATEWASHER, PLATE
-
118KA-47333-00-00 ARM, PIVOT 3ARM, PIVOT 3
-
1290201-10742-00 WASHER, PLATEWASHER, PLATE
-
1383R-47485-02-00 SHAFT 3SHAFT 3
-
1490381-19111-00 BUSH, SOLIDBUSH, SOLID
-
1590105-10237-00 BOLT, FLANGEBOLT, FLANGE
Все узлы модели:
- BELT GUARD W/ TOOL BOX
- BRAKE ASSY
- BUMPER - FRONT AND REAR
- CAMSHAFT W/ CAMSHAFT CHAIN ASSY
- CHAINCASE - SPROCKET AND CHAINS (OPTION)
- CHAINCASE ASSY
- CHAINCASE ASSY 2
- CLUTCH - DRIVE
- CLUTCH - DRIVEN W/ DRIVE AXLE
- CLUTCH - REPAIR KIT (OPTION)
- CLUTCH - TUNE-UP KIT (OPTION)
- CLUTCH - WEIGHTS AND SPRINGS
- CONSOLE ASSY
- COOLING SYSTEM
- CRANKCASE ASSY
- CRANKCASE COVER ASSY
- CRANKSHAFT W/ PISTON ASSY
- CYLINDER W/ HEAD ASSY
- DECALS
- DRIVE TRAIN ASSEMBLY
- ELECTRICAL - BATTERY ASSY
- ELECTRICAL - COIL, CDI, RECTIFIER, RELAYS AND SWITCHES
- ELECTRICAL - HEADLIGHT ASSY
- ELECTRICAL - INSTRUMENTS
- ELECTRICAL - MAGNETO ASSEMBLY
- ELECTRICAL - TAILLIGHT ASSY
- ENGINE MOUNTING
- EXHAUST SYSTEM
- FUEL TANK ASSY
- HANDLEBAR - CABLES AND GRIPS
- HANDLEBAR - SWITCHES AND LEVERS
- HANDLEBAR ASSY W/ STEERING ASSY
- HANDLEBAR PAD W/ STEERING GATE
- HOOD - WINDSHIELD ASSY
- HOOD ASSY
- INTAKE W/ AIR BOX ASSY - FUEL PUMP
- MODEL INFO- MANUALS
- OIL COOLER ASSY W/ OIL FILTER
- OIL PUMP ASSY
- OIL TANK ASSY
- • PIVOT ARM W/ SHOCK
- REFLECTOR ASSY
- SEAT ASSY
- STARTER - ELECTRICAL STARTER ASSY
- STARTER - REDUCTION GEAR W/ CLUTCH ASSY
- SUSPENSION - FRONT W/ SKI ASSY
- SUSPENSION - IDLER WHEELS W/ RAIL ASSY - TRACK
- SUSPENSION - IDLER WHEELS W/ RAIL ASSY - TRACK 2
- THROTTLE BODY ASSY
- TUNNEL ASSEMBLY W/ LOWER NOSEPAN
- VALVE ASSY
- WATER PUMP ASSY
