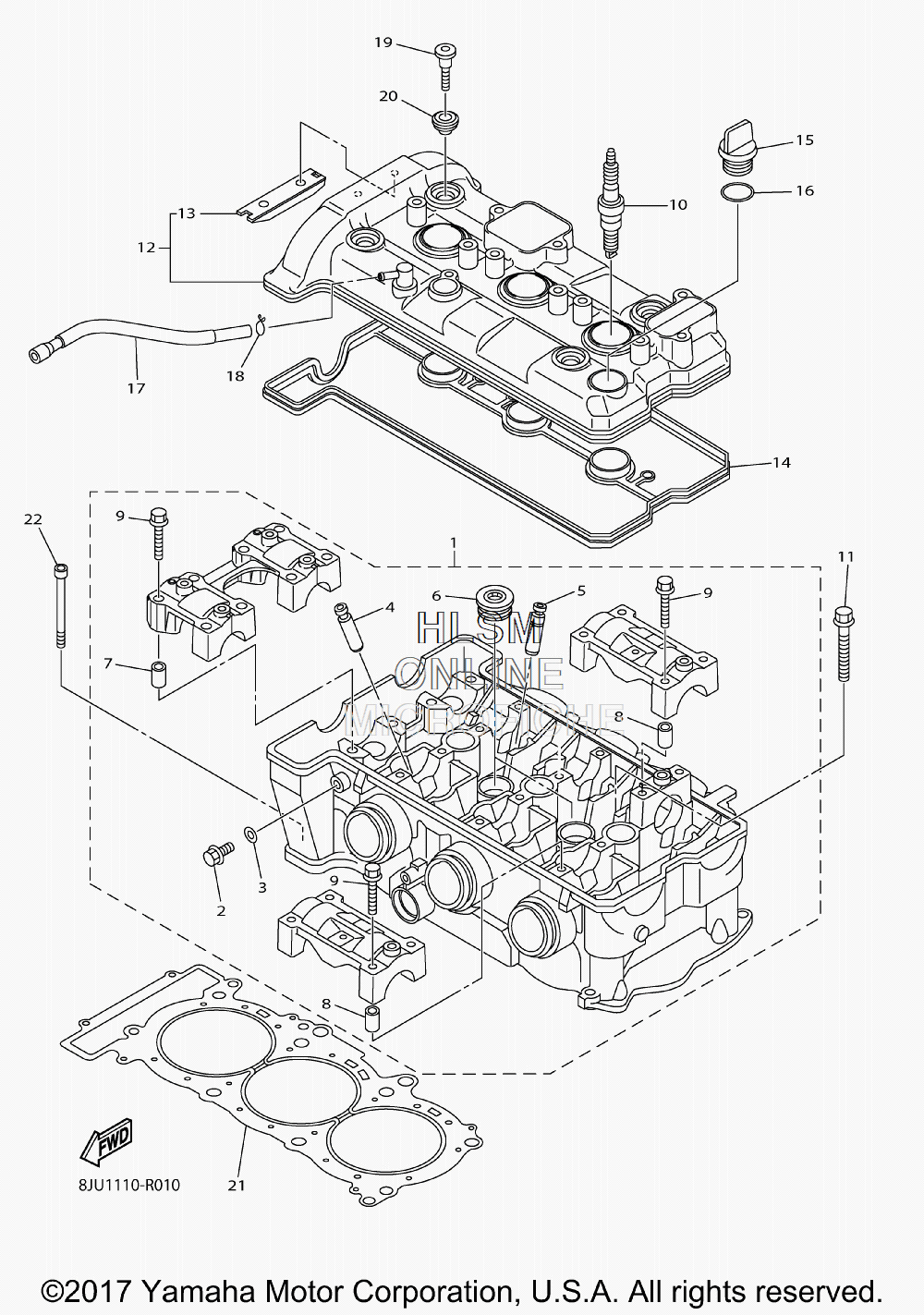

CYLINDER W/ HEAD ASSY для Yamaha VK PROFESSIONAL II - 2018 года выпуска`
-
№АртикулНазвание
-
18KH-11101-09-00 CYLINDER HEAD ASSYCYLINDER HEAD ASSY
-
295022-08012-00 ...BOLT, FLANGE...BOLT, FLANGE
-
390430-08119-00 ...GASKET...GASKET
-
42C0-11133-11-00 ...GUIDE, VALVE 1...GUIDE, VALVE 1
-
58HF-11134-10-00 ...GUIDE, VALVE 2...GUIDE, VALVE 2
-
690340-27129-00 ...PLUG, STRAIGHT SCREW...PLUG, STRAIGHT SCREW
-
791808-16023-00 ...PIN, DOWEL...PIN, DOWEL
-
891808-16023-00 ...PIN, DOWEL...PIN, DOWEL
-
990105-06027-00 ...BOLT, FLANGE...BOLT, FLANGE
-
1094701-00411-00 PLUG, SPARK (NGK R CR8E)PLUG, SPARK (NGK R CR8E)
-
1190119-10004-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
128KH-11191-00-00 COVER, CYLINDER HEAD 1COVER, CYLINDER HEAD 1
-
135BE-12241-00-00 ...GUIDE, STOPPER 2...GUIDE, STOPPER 2
-
142HC-11193-00-00 GASKET, HEAD COVER 1GASKET, HEAD COVER 1
-
153Y1-15363-10-00 PLUG, OILPLUG, OIL
-
1693210-19123-00 O-RINGO-RING
-
178HF-11166-00-00 PIPE, BREATHER 1PIPE, BREATHER 1
-
1890467-100A1-00 CLIPCLIP
-
1990109-066F0-00 BOLTBOLT
-
205VY-1111G-00-00 RUBBER, MOUNT 1RUBBER, MOUNT 1
-
218GL-11181-20-00 GASKET, CYLINDER HEAD 1GASKET, CYLINDER HEAD 1
-
2291312-06065-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
