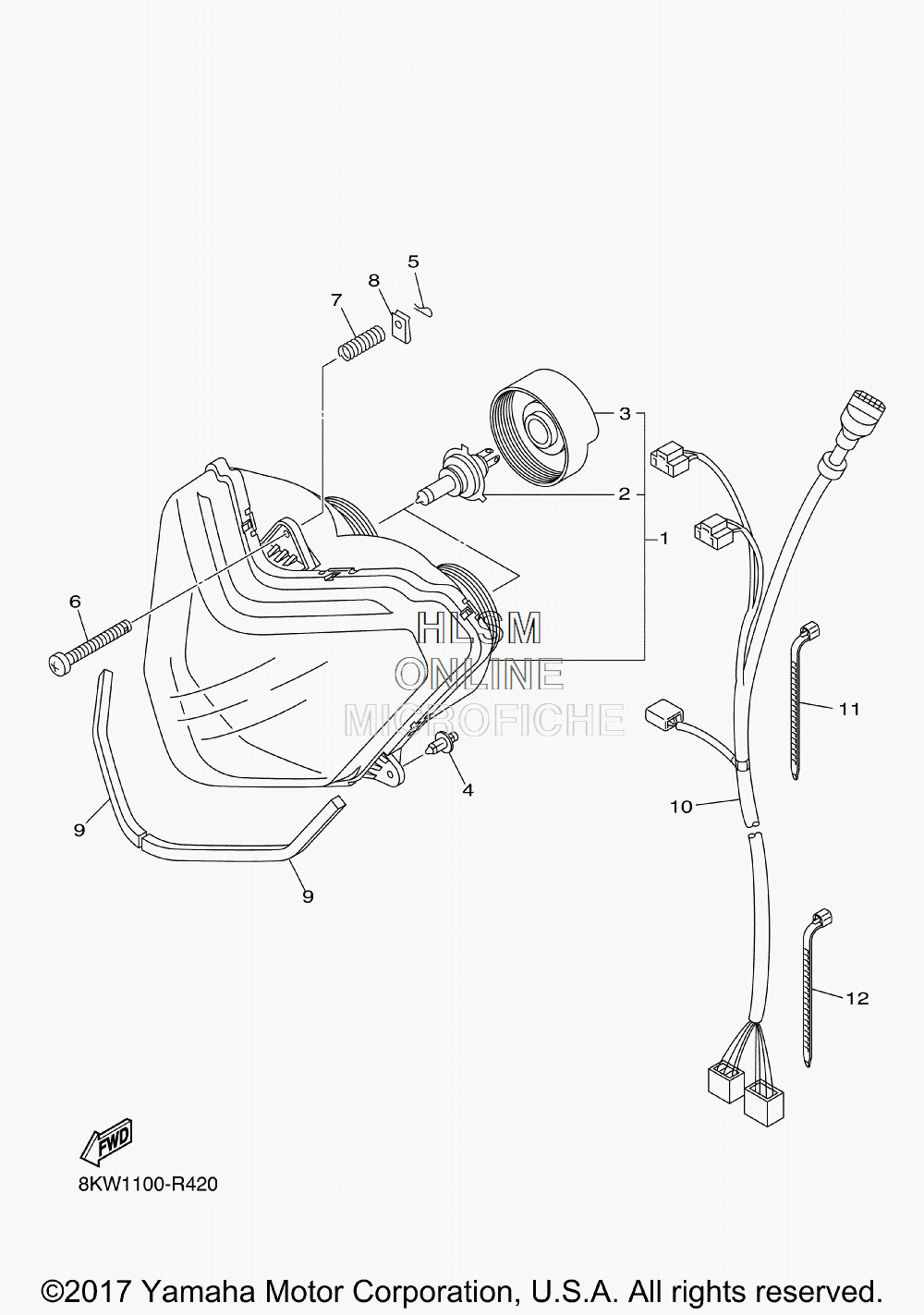

ELECTRICAL - HEADLIGHT ASSY для Yamaha VK PROFESSIONAL II - 2018 года выпуска`
-
№АртикулНазвание
-
18KW-84310-00-00 HEADLIGHT UNIT ASSYHEADLIGHT UNIT ASSY
-
28G9-84314-01-00 ......BULB (12V-60/55W) (H4) HALOGEN......BULB (12V-60/55W) (H4) HALOGEN
-
38GK-84397-01-00 ...COVER, SOCKET...COVER, SOCKET
-
490269-06001-00 RIVETRIVET
-
58K4-84374-00-00 CLIPCLIP
-
68A5-84331-00-00 SCREW, RIM ADJUSTINGSCREW, RIM ADJUSTING
-
78A5-84332-00-00 SPRING, SCREWSPRING, SCREW
-
890183-05024-00 NUT, SPRINGNUT, SPRING
-
94FU-21747-00-00 DAMPERDAMPER
-
108LP-84359-00-00 CORD, HEADLIGHTCORD, HEADLIGHT
-
1190464-15195-00 CLAMPCLAMP
-
1290464-13077-00 CLAMPCLAMP
