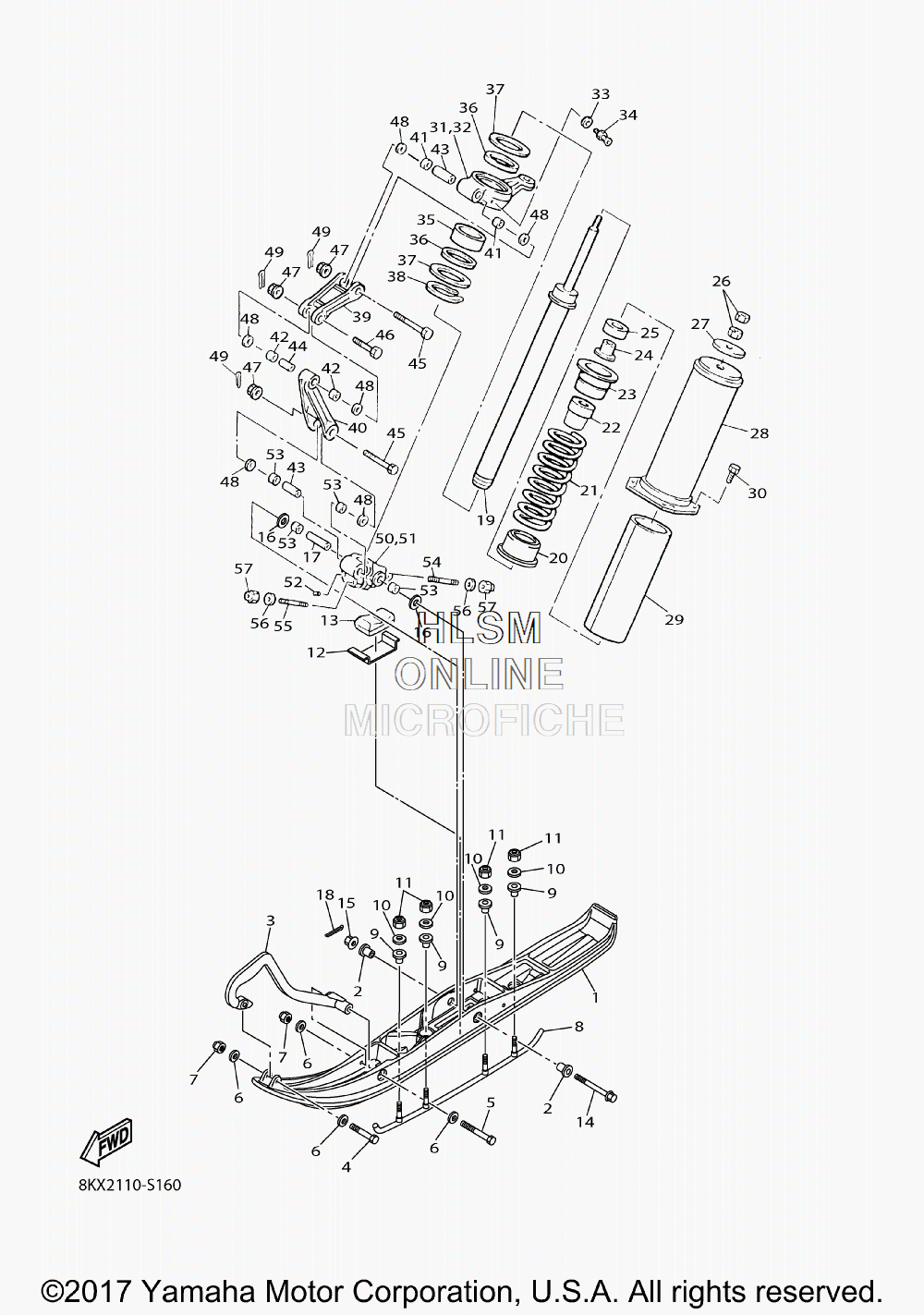

SUSPENSION - FRONT W/ SKI ASSY для Yamaha VK 540 - 2018 года выпуска
-
№АртикулНазвание
-
18AC-F3711-00-00 SKI 1SKI 1
-
28AC-F3754-00-00 COLLAR 1COLLAR 1
-
38DM-F3712-00-00 REINFORCEMENT, HEADREINFORCEMENT, HEAD
-
48HG-F3755-00-00 BOLT, REINFORCEMENT HEAD 1BOLT, REINFORCEMENT HEAD 1
-
58HG-F3756-00-00 BOLT, REINFORCEMENT HEAD 2BOLT, REINFORCEMENT HEAD 2
-
68HG-F3737-00-00 WASHER 1WASHER 1
-
78HG-F3778-00-00 NUTNUT
-
88EN-F3731-01-00 RUNNER 1RUNNER 1
-
98EK-F3751-00-00 BUSH, SKI 1BUSH, SKI 1
-
108HG-F3738-00-00 WASHER 2WASHER 2
-
118JH-F3778-00-00 NUTNUT
-
128AC-23765-00-00 STOPPERSTOPPER
-
1388T-23743-00-00 STOPPER 1STOPPER 1
-
1490105-10410-00 BOLT, FLANGEBOLT, FLANGE
-
1595602-10200-00 NUT, S/L FLANGENUT, S/L FLANGE
-
1690201-100S7-00 WASHER, PLATEWASHER, PLATE
-
1790387-106J3-00 COLLARCOLLAR
-
1891401-20020-00 PIN, COTTERPIN, COTTER
-
198KA-22401-00-00 DAMPER SUB ASSYDAMPER SUB ASSY
-
208KA-23777-00-00 SEAT, SPRING 2SEAT, SPRING 2
-
2190501-75612-00 SPRING, COMPRESSIONSPRING, COMPRESSION
-
2289L-22493-00-00 BUMP, STOPBUMP, STOP
-
238L0-23788-00-00 PLATE, BACK UPPLATE, BACK UP
-
2490387-084R1-00 COLLARCOLLAR
-
2582M-23779-00-00 WASHERWASHER
-
2695302-08600-00 NUT, HEXAGONNUT, HEXAGON
-
2790201-080L1-00 WASHER, PLATEWASHER, PLATE
-
288AT-2376J-00-00 HOLDER, ABSORBERHOLDER, ABSORBER
-
298L0-2376R-00-00 PROTECTORPROTECTOR
-
3097022-06020-00 BOLT, HEXAGONBOLT, HEXAGON
-
3182M-23851-00-00 ARM, OUTSIDE 1 (LEFT)ARM, OUTSIDE 1 (LEFT)
-
328AT-23852-00-00 ARM, OUTSIDE 2 (RIGHT)ARM, OUTSIDE 2 (RIGHT)
-
3390201-067F9-00 WASHER, PLATEWASHER, PLATE
-
3493700-06004-00 NIPPLE, GREASENIPPLE, GREASE
-
3590384-53175-00 BUSH, BIMETAL FORMEDBUSH, BIMETAL FORMED
-
3693109-53036-00 OIL SEALOIL SEAL
-
3790201-535H6-00 WASHER, PLATE (T=2.0)WASHER, PLATE (T=2.0)
-
3790201-536A1-00 WASHER, PLATE (T=1.0)WASHER, PLATE (T=1.0)
-
3893410-52061-00 CIRCLIPCIRCLIP
-
398L0-2382E-01-00 ARM, FRONT 1ARM, FRONT 1
-
408L0-2382F-00-00 ARM, FRONT 2ARM, FRONT 2
-
4190384-14091-00 BUSH, BIMETAL FORMEDBUSH, BIMETAL FORMED
-
4290384-14096-00 BUSH, BIMETAL FORMEDBUSH, BIMETAL FORMED
-
4390387-101Y9-00 COLLARCOLLAR
-
4490387-100A4-00 COLLARCOLLAR
-
4590102-10039-00 BOLT, WITH HOLEBOLT, WITH HOLE
-
4690102-10067-00 BOLT, WITH HOLEBOLT, WITH HOLE
-
4795707-10300-00 NUT, FLANGENUT, FLANGE
-
4890202-14037-00 WASHER, PLATEWASHER, PLATE
-
4991401-20020-00 PIN, COTTERPIN, COTTER
-
5084M-2376E-00-00 BRACKET 1BRACKET 1
-
5184M-2377E-00-00 BRACKET 2BRACKET 2
-
5290113-06039-00 BOLT, SETBOLT, SET
-
5390384-14091-00 BUSH, BIMETAL FORMEDBUSH, BIMETAL FORMED
-
5495617-08655-00 BOLT, STUDBOLT, STUD
-
5595617-08640-00 BOLT, STUDBOLT, STUD
-
5692902-08600-00 WASHER, PLATEWASHER, PLATE
-
5795702-08300-00 NUT, NYLONNUT, NYLON
