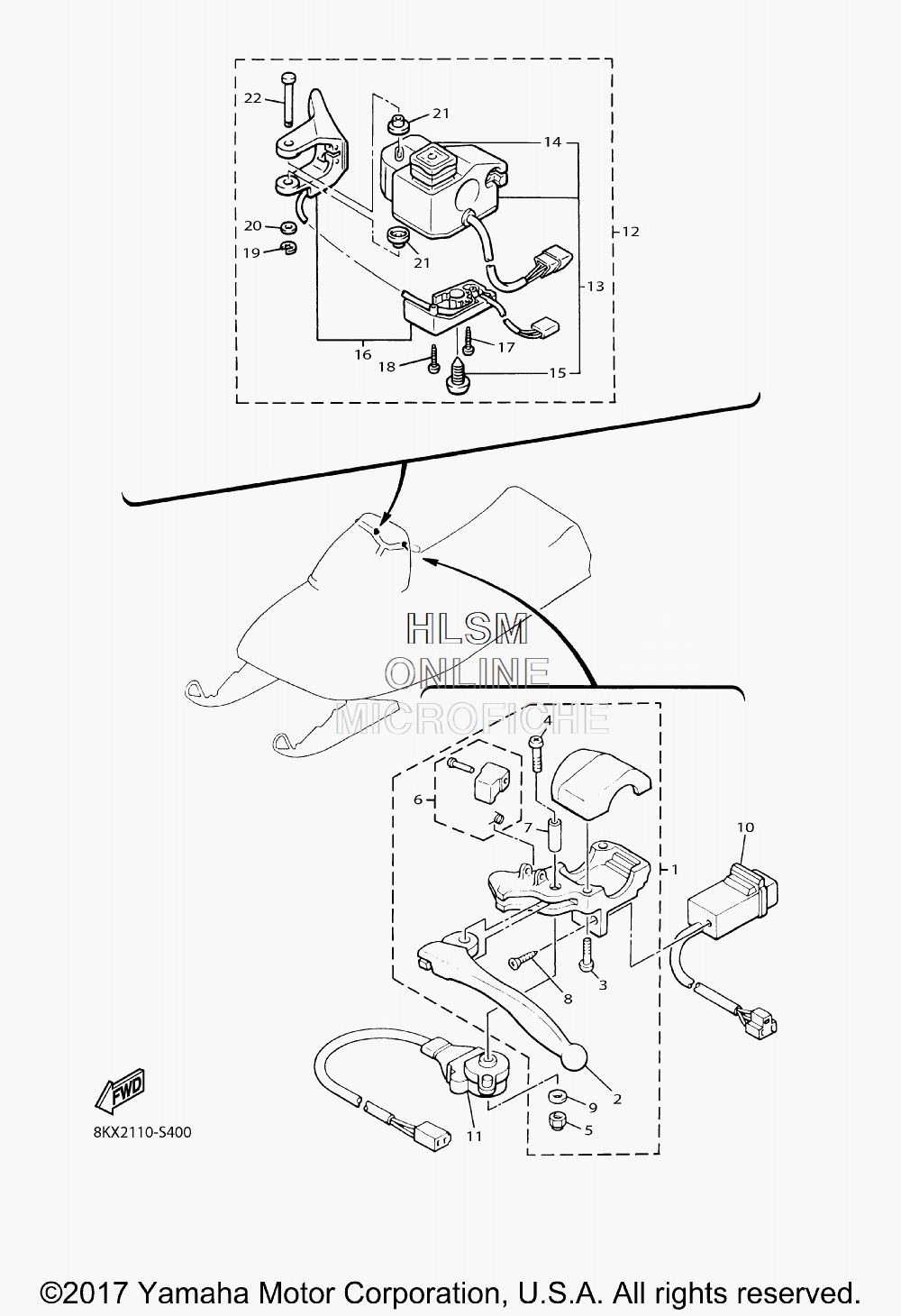

HANDLEBAR - SWITCHES AND LEVERS для Yamaha VK 540 - 2018 года выпуска`
-
№АртикулНазвание
-
188R-W8291-00-00 LEVER HOLDER ASSY (LEFT)LEVER HOLDER ASSY (LEFT)
-
28H8-83912-00-00 ...LEVER 1...LEVER 1
-
390157-05027-00 ...SCREW, PAN HEAD...SCREW, PAN HEAD
-
48R4-82113-00-00 ...SCREW...SCREW
-
595702-05300-00 ...NUT, NYLON...NUT, NYLON
-
68K4-W8393-00-00 ...LEVER LOCK ASSY...LEVER LOCK ASSY
-
7802-83913-00-00 ...COLLAR, LEVER 1...COLLAR, LEVER 1
-
88R4-8252V-00-00 ...SCREW, SPECIAL...SCREW, SPECIAL
-
992902-05200-00 ...WASHER...WASHER
-
108K4-83950-01-00 BEAM SWITCH ASSYBEAM SWITCH ASSY
-
1188R-82530-00-00 STOP SWITCH ASSYSTOP SWITCH ASSY
-
128KX-82720-00-00 LEVER HOLDER ASSY (RIGHT)LEVER HOLDER ASSY (RIGHT)
-
138KX-83963-00-00 ...SWITCH, HANDLE 3...SWITCH, HANDLE 3
-
148KX-82575-09-00 ......ENGINE STOP SWITCH ASSY WIRE/L=240MM......ENGINE STOP SWITCH ASSY WIRE/L=240MM
-
158R6-83928-00-00 ......SCREW......SCREW
-
168KX-82970-00-00 ...THUMB WARMER ASSY...THUMB WARMER ASSY
-
1797706-30620-00 ...SCREW, TAPPING...SCREW, TAPPING
-
1897706-30630-00 ...SCREW, TAPPING...SCREW, TAPPING
-
1999001-04600-00 ...CIRCLIP...CIRCLIP
-
2085G-83663-00-00 ...WASHER, SPECIAL...WASHER, SPECIAL
-
2185G-83956-00-00 ...CAP 1...CAP 1
-
2288T-8399F-00-00 ...SHAFT...SHAFT
