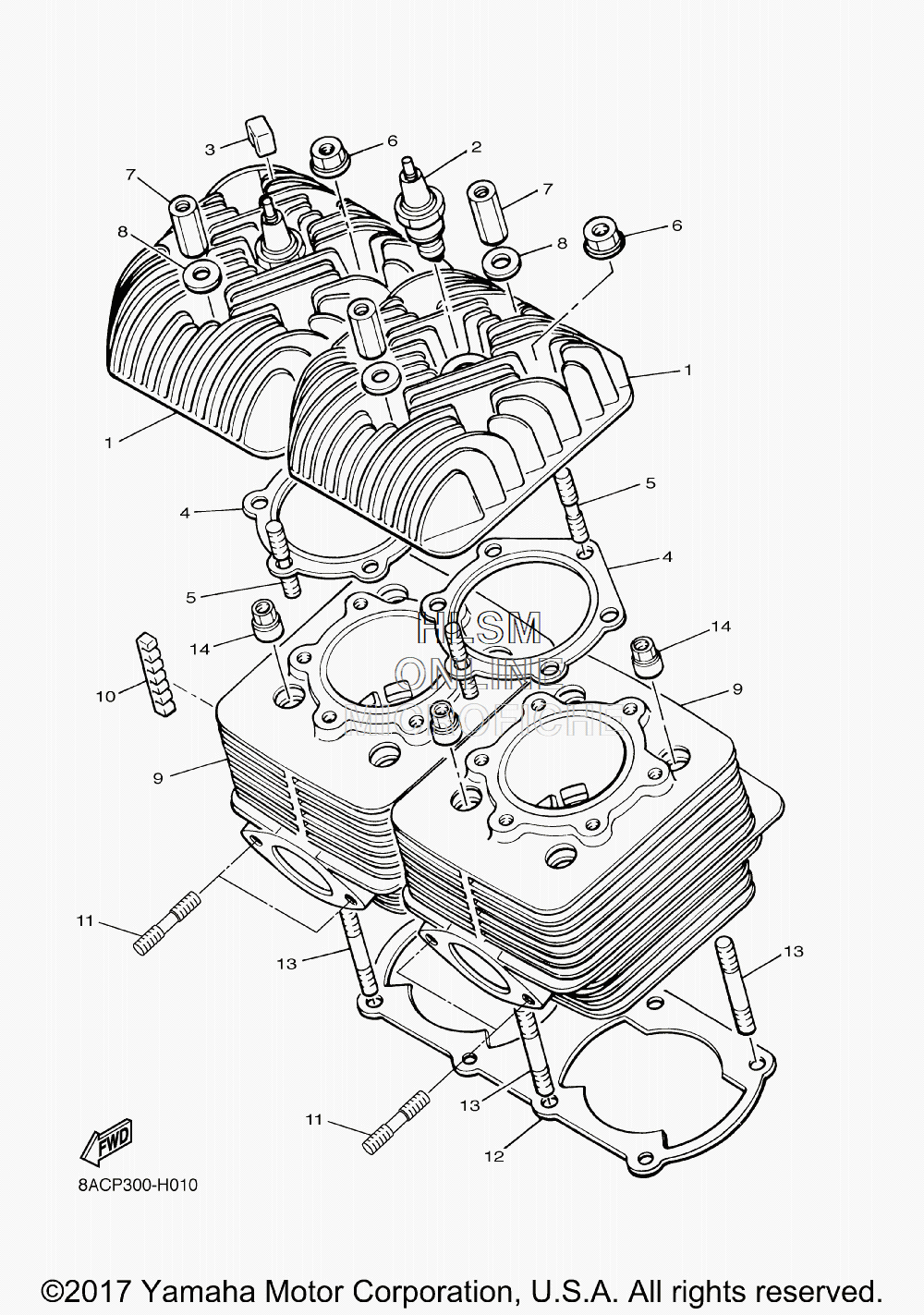

CYLINDER W/ HEAD ASSY для Yamaha VK 540 - 2018 года выпуска`
-
№АртикулНазвание
-
18R6-11111-00-00 HEAD, CYLINDER 1HEAD, CYLINDER 1
-
294702-00188-00 PLUG, SPARK (NGK BR9ES)PLUG, SPARK (NGK BR9ES)
-
383R-11161-00-00 ABSORBER 1ABSORBER 1
-
483R-11181-00-00 GASKET, CYLINDER HEAD 1GASKET, CYLINDER HEAD 1
-
590116-08104-00 BOLT, STUDBOLT, STUD
-
695707-08500-00 NUT, FLANGENUT, FLANGE
-
790179-08269-00 NUTNUT
-
890201-08100-00 WASHER, PLATEWASHER, PLATE
-
983R-11311-00-00 CYLINDER 1CYLINDER 1
-
1083R-11162-00-00 ABSORBER 2ABSORBER 2
-
1195612-08318-00 BOLT, STUDBOLT, STUD
-
1289N-11351-00-00 GASKET, CYLINDERGASKET, CYLINDER
-
1390116-08302-00 BOLT, STUDBOLT, STUD
-
1490179-08044-00 NUTNUT
