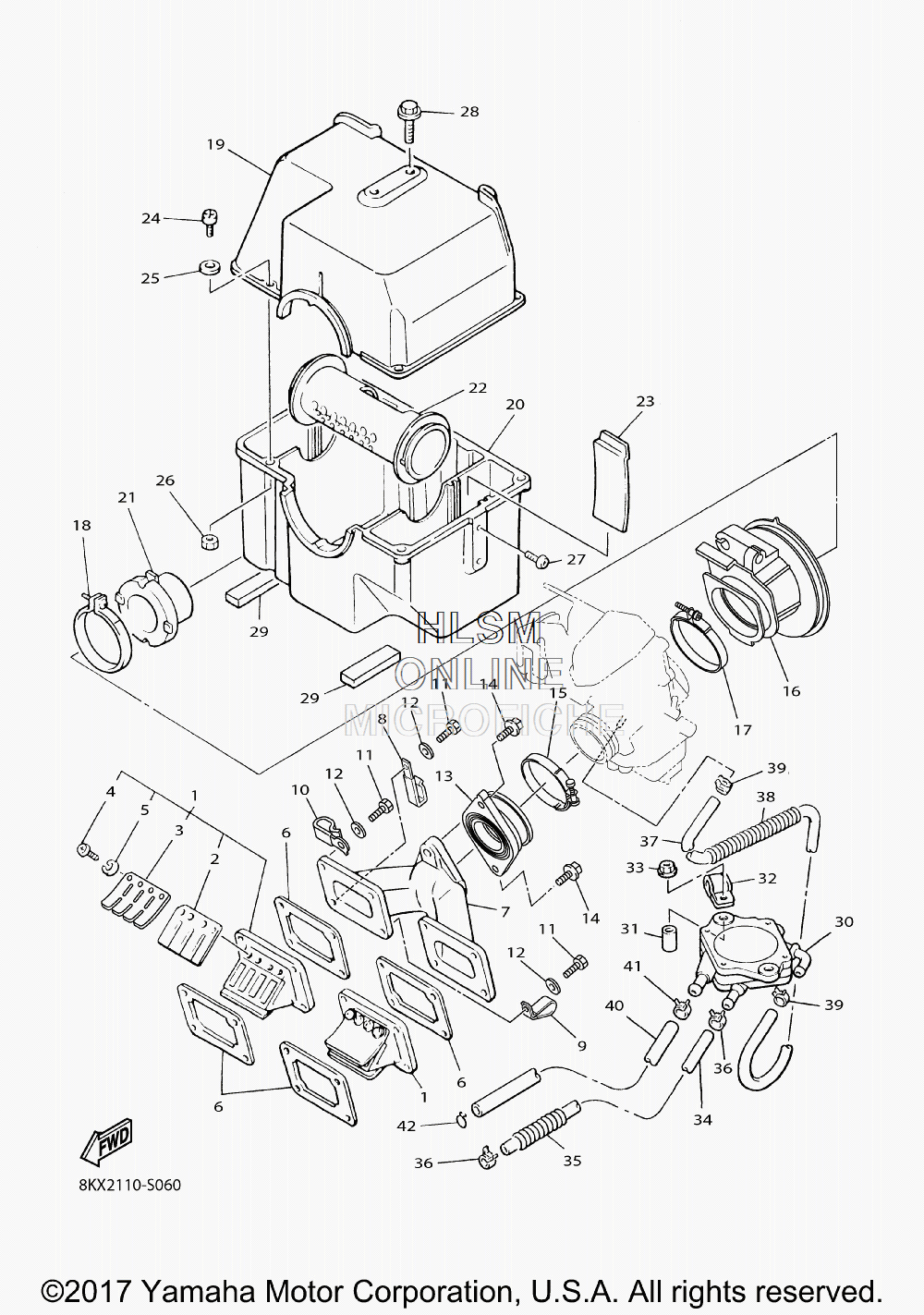

INTAKE W/ AIR BOX ASSY - FUEL PUMP для Yamaha VK 540 - 2018 года выпуска
-
№АртикулНазвание
-
18KX-13610-01-00 REED VALVE ASSYREED VALVE ASSY
-
28KX-13613-00-00 ...REED, VALVE...REED, VALVE
-
38KX-13616-00-00 ...STOPPER, REED VALVE...STOPPER, REED VALVE
-
498502-03008-00 ...SCREW, PAN HEAD...SCREW, PAN HEAD
-
592902-03100-00 ...WASHER...WASHER
-
68Y7-13556-01-00 GASKET, MANIFOLDGASKET, MANIFOLD
-
783R-13565-00-00 JOINT, CARBURETORJOINT, CARBURETOR
-
890465-08277-00 CLAMPCLAMP
-
990461-10011-00 CLAMPCLAMP
-
1090465-08125-00 CLAMPCLAMP
-
1197027-06025-00 BOLT, HEXAGONBOLT, HEXAGON
-
1292907-06600-00 WASHER, PLATEWASHER, PLATE
-
138KX-13555-00-00 MANIFOLD, INTAKEMANIFOLD, INTAKE
-
1495022-08025-00 BOLT, FLANGEBOLT, FLANGE
-
1590450-53004-00 HOSE CLAMP ASSYHOSE CLAMP ASSY
-
168KX-14453-00-00 JOINT, AIR CLEANER 1JOINT, AIR CLEANER 1
-
1790450-53012-00 HOSE CLAMP ASSYHOSE CLAMP ASSY
-
1890450-99050-00 HOSE CLAMP ASSYHOSE CLAMP ASSY
-
198H8-14431-00-00 SILENCER, INTAKE 1SILENCER, INTAKE 1
-
208H8-14441-00-00 SILENCER, INTAKE 2SILENCER, INTAKE 2
-
2183R-14465-00-00 PIPEPIPE
-
228H8-14466-00-00 PIPEPIPE
-
238H8-14477-00-00 PLATEPLATE
-
2498502-05016-00 SCREW, PAN HEADSCREW, PAN HEAD
-
2592902-05600-00 WASHER, PLATEWASHER, PLATE
-
2695302-05700-00 NUT, HEXAGONNUT, HEXAGON
-
2798502-06010-00 SCREW, PAN HEADSCREW, PAN HEAD
-
2890105-06176-00 BOLT, FLANGEBOLT, FLANGE
-
2983R-14425-00-00 DAMPER 1DAMPER 1
-
308AT-24410-00-00 FUEL PUMP ASSYFUEL PUMP ASSY
-
3190387-063W4-00 COLLARCOLLAR
-
3290465-08316-00 CLAMPCLAMP
-
3395702-06500-00 NUT, FLANGENUT, FLANGE
-
3490445-11073-00 HOSE (L310)HOSE (L310)
-
3590501-084G9-00 SPRING, COMPRESSIONSPRING, COMPRESSION
-
3690467-11032-00 CLIPCLIP
-
3790445-09033-00 HOSE (L420)HOSE (L420)
-
3890501-084J0-00 SPRING, COMPRESSIONSPRING, COMPRESSION
-
3990467-09026-00 CLIPCLIP
-
4090445-11070-00 HOSE (L80)HOSE (L80)
-
4190467-11032-00 CLIPCLIP
-
4290467-11009-00 CLIPCLIP
