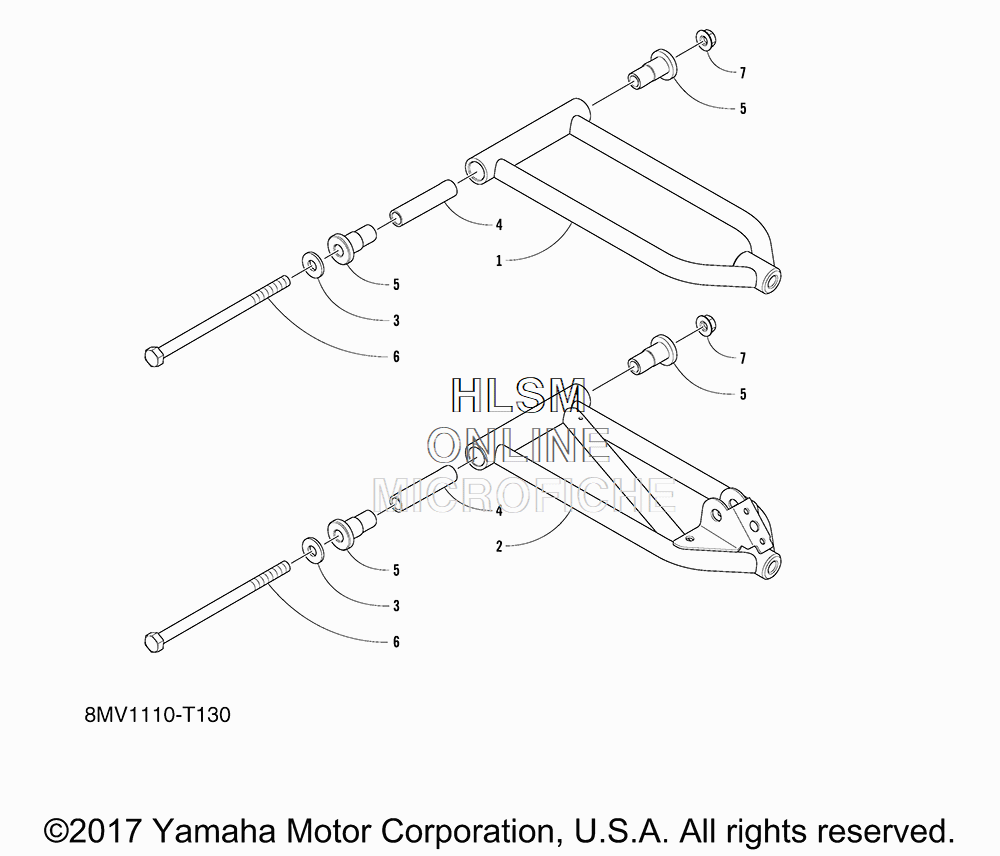

SUSPENSION - FRONT ARM для Yamaha SRX 120 - 2018 года выпуска`
-
№АртикулНазвание
-
18MV-F354A-00-00 ARM, FRONT UPPER LEFTARM, FRONT UPPER LEFT
-
28MV-F358A-00-00 ARM, FRONT LOWER. RIGHTARM, FRONT LOWER. RIGHT
-
28MV-F357A-00-00 ARM, FRONT LOWER. LEFTARM, FRONT LOWER. LEFT
-
38JM-RA405-00-00 WASHER, PLAIN 3/8WASHER, PLAIN 3/8
-
48MV-RA703-00-00 COLLAR, 10COLLAR, 10
-
58JM-F3583-00-00 BUSHBUSH
-
68JM-RA107-10-00 BOLT, HEXAGON 3/8-16X6BOLT, HEXAGON 3/8-16X6
-
78JP-RA358-00-00 NUT, FLANGE LOCKING 3/8-16NUT, FLANGE LOCKING 3/8-16
