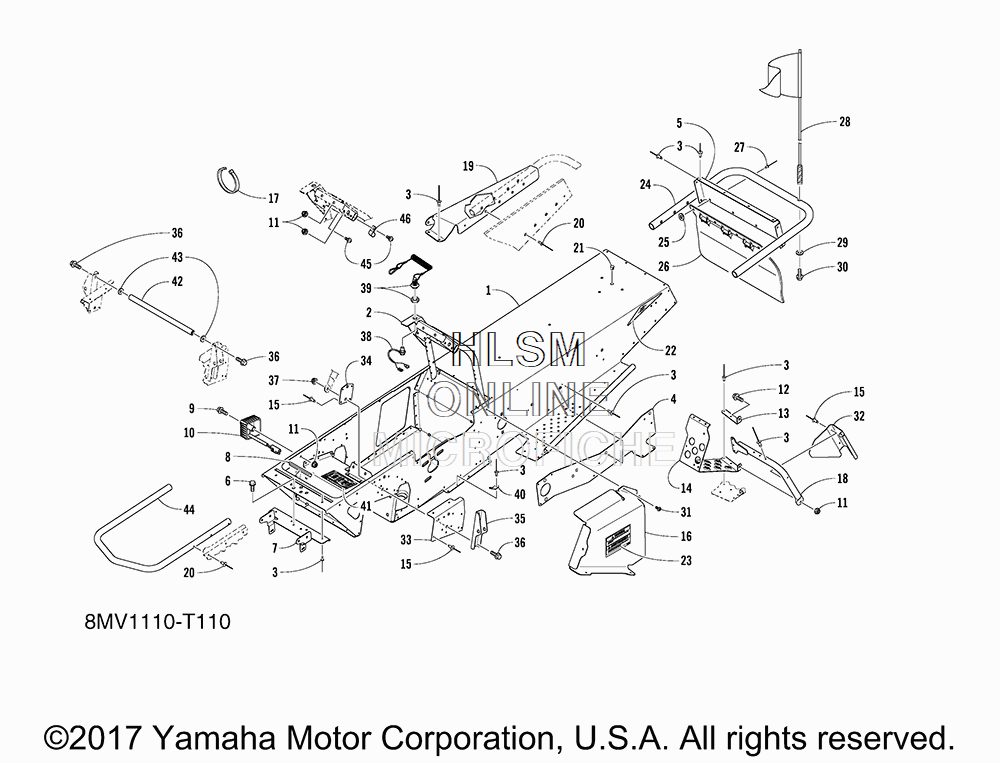

TUNNEL ASSEMBLY W/ LOWER NOSEPAN для Yamaha SRX 120 - 2018 года выпуска
-
№АртикулНазвание
-
18MV-F1910-00-00 FRAME COMP.FRAME COMP.
-
28MV-F191A-00-00 ...BULKHEAD...BULKHEAD
-
38JP-RA514-00-00 ...RIVET, 5...RIVET, 5
-
48JM-F1953-00-00 ...BRACKET, MAIN TRACK 2 - LEFT...BRACKET, MAIN TRACK 2 - LEFT
-
48JM-F1943-00-00 ...BRACKET, MAIN TRACK 1 - RIGHT...BRACKET, MAIN TRACK 1 - RIGHT
-
58MV-F1923-10-00 REINEFORCEMENT, FRAME REAR 1REINEFORCEMENT, FRAME REAR 1
-
68JM-RA202-00-00 SCREW, TAPPING 1/4-20X0.5SCREW, TAPPING 1/4-20X0.5
-
78ML-F191D-00-00 FRAME, FRONT ENDFRAME, FRONT END
-
88JP-F15B3-00-00 TRIM (3 FEET)TRIM (3 FEET)
-
98JM-RA138-00-00 BOLT, FLANGE 1/4-20X1.5BOLT, FLANGE 1/4-20X1.5
-
108JM-H1910-00-00 VOLTAGE REGULATOR ASSYVOLTAGE REGULATOR ASSY
-
118JP-RA357-00-00 NUT, FLANGE LOCKING 1/4-20NUT, FLANGE LOCKING 1/4-20
-
128JM-RA106-00-00 BOLT, FLANGE 1/4-20X0.75BOLT, FLANGE 1/4-20X0.75
-
138JM-F1921-00-00 REINEFORCEMENT, FRAME REAR 1 - LEFTREINEFORCEMENT, FRAME REAR 1 - LEFT
-
138JM-F1931-00-00 REINFORCEMENT, FRAME FRONT 2 - RIGHTREINFORCEMENT, FRAME FRONT 2 - RIGHT
-
148JM-F7411-00-00 FOOTREST 1 - LEFTFOOTREST 1 - LEFT
-
148JM-F7421-00-00 FOOTREST 2 - RIGHTFOOTREST 2 - RIGHT
-
158JP-RA515-00-00 RIVET, 6RIVET, 6
-
168JM-E3327-00-00 COVER, PUMP GEARCOVER, PUMP GEAR
-
178JM-RAB01-00-00 CLAMP, 2 (8 INCH)CLAMP, 2 (8 INCH)
-
188JM-F1929-00-00 REINFORCEMENT, FRAME SIDE - LEFTREINFORCEMENT, FRAME SIDE - LEFT
-
188JM-F192E-00-00 REINFORCEMENT, FRAME - RIGHTREINFORCEMENT, FRAME - RIGHT
-
198JM-K7543-00-00 BUMPER, REAR 3 - LEFTBUMPER, REAR 3 - LEFT
-
198JM-K7544-00-00 BUMPER, REAR 4 - RIGHTBUMPER, REAR 4 - RIGHT
-
208JP-RA518-00-00 RIVET, 9RIVET, 9
-
218JM-RA601-00-00 PLUG, 2PLUG, 2
-
228JP-F151A-00-00 LABEL 1LABEL 1
-
238JM-K7762-00-00 LABEL, WARNING 2LABEL, WARNING 2
-
248JM-K7541-00-00 BUMPER, REAR 1BUMPER, REAR 1
-
258JM-RA411-00-00 WASHER, PLAIN 0.194WASHER, PLAIN 0.194
-
268JM-K7595-00-00 FLAPFLAP
-
278JP-RA519-00-00 RIVET, 10RIVET, 10
-
288JM-RAY04-01-00 FLAG ASSY.FLAG ASSY.
-
298JM-RA403-00-00 WASHER, PLAIN 5/16WASHER, PLAIN 5/16
-
308JM-RA104-00-00 BOLT, FLANGE 5/16-18X1.25BOLT, FLANGE 5/16-18X1.25
-
318JM-RA203-00-00 SCREW, TAPPING 10-16X1/2SCREW, TAPPING 10-16X1/2
-
328MV-F198F-00-00 COVER 1 - LEFTCOVER 1 - LEFT
-
328MV-F198G-00-00 COVER 2 - RIGHTCOVER 2 - RIGHT
-
338MV-F196F-00-00 BRACKET 3 - LEFTBRACKET 3 - LEFT
-
338MV-F196G-00-00 BRACKET 4 - RIGHTBRACKET 4 - RIGHT
-
348MV-F191B-00-00 PLATE 1PLATE 1
-
358MV-F376J-00-00 HOLDER, ABSORBERHOLDER, ABSORBER
-
368JM-RA117-00-00 BOLT, FLANGE 5/16-18X0.875BOLT, FLANGE 5/16-18X0.875
-
378JM-RA303-00-00 NUT, SELF-LOCKING 5/16-18NUT, SELF-LOCKING 5/16-18
-
388JM-H2552-00-00 CAP, SWITCHCAP, SWITCH
-
398JM-H2551-00-00 STOP SWITCH ASSYSTOP SWITCH ASSY
-
408JM-G2148-00-00 RETAINER, SPRINGRETAINER, SPRING
-
418MV-E417F-00-00 LABEL, CAUTIONLABEL, CAUTION
-
428JM-G7465-00-00 SHAFT 1SHAFT 1
-
438MV-RA466-00-00 WASHER, 9WASHER, 9
-
448MV-K7511-00-00 BUMPER, FRONT 1BUMPER, FRONT 1
-
458MV-RA106-00-00 BOLT, FLANGE 1/4-20X0.75BOLT, FLANGE 1/4-20X0.75
-
468JM-RAB01-10-00 CLAMP, 2CLAMP, 2
