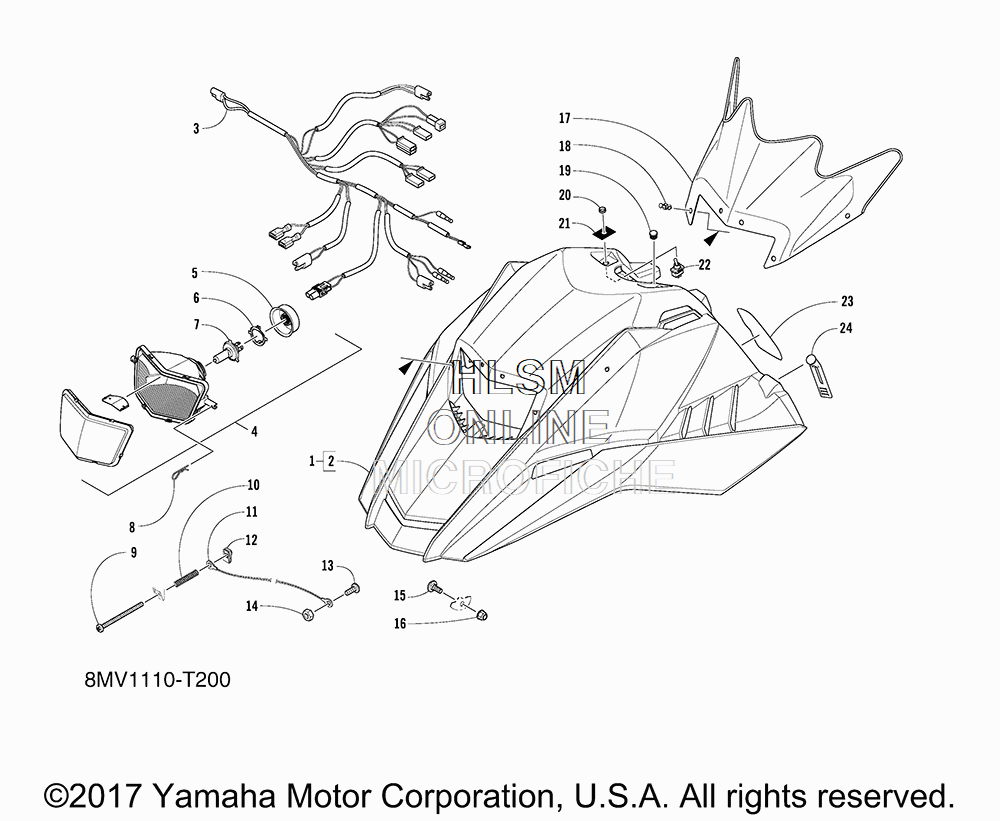

HOOD - WINDSHIELD ASSY для Yamaha SRX 120 - 2018 года выпуска`
-
№АртикулНазвание
-
18MV-RAS10-10-00 SHROUD, WITH DECALS AND LABELS (DPBSE - PURPLISH BLUE)SHROUD, WITH DECALS AND LABELS (DPBSE - PURPLISH BLUE)
-
18MV-RAS10-30-00 SHROUD, WITH DECALS AND LABELS (BWS1 - BLUISH WHITE)SHROUD, WITH DECALS AND LABELS (BWS1 - BLUISH WHITE)
-
28ML-RAS30-70-00 ......SHROUD, WITH LABELS (DPBSE - PURPLISH BLUE)......SHROUD, WITH LABELS (DPBSE - PURPLISH BLUE)
-
28ML-RAS30-60-00 ......SHROUD, WITH LABELS (BWS1 - BLUISH WHITE)......SHROUD, WITH LABELS (BWS1 - BLUISH WHITE)
-
38MV-H2590-10-00 WIRE HARNESS ASSYWIRE HARNESS ASSY
-
48MV-H4310-00-00 HEADLIGHT UNIT ASSYHEADLIGHT UNIT ASSY
-
58MV-H4397-00-00 ...COVER, SOCKET...COVER, SOCKET
-
68JP-H4393-00-00 ...SPRING SUPPORT...SPRING SUPPORT
-
78ML-H4314-00-00 ...BULB, HEADLIGHT...BULB, HEADLIGHT
-
88MV-H4374-00-00 CLIPCLIP
-
98MV-RA210-00-00 SCREW,10-24X2SCREW,10-24X2
-
108MV-RAD07-00-00 SPRING, COMPRESSION 3SPRING, COMPRESSION 3
-
118MV-K7118-00-00 STOPPER, SHROUDSTOPPER, SHROUD
-
128JP-RA354-00-00 NUT, CLIP M6NUT, CLIP M6
-
138JM-RA209-00-00 SCREW, 10-24X1/2SCREW, 10-24X1/2
-
148JM-RA319-00-00 NUT, SELF-LOCKING. 10-24NUT, SELF-LOCKING. 10-24
-
158JP-RA253-00-00 SCREW, M6-1.0X18SCREW, M6-1.0X18
-
168MV-RA357-00-00 NUT, FLANGE LOCKING 1/4-20NUT, FLANGE LOCKING 1/4-20
-
178ML-K7210-00-00 WINDSHIELD COMP.WINDSHIELD COMP.
-
188ML-RA511-00-00 RIVET, 2RIVET, 2
-
198MV-H2371-00-00 CAP, PLUGCAP, PLUG
-
208JM-RA345-00-00 NUT, 1NUT, 1
-
218MV-K7229-00-00 LABELLABEL
-
228JM-H1860-00-00 SWITCH ASSYSWITCH ASSY
-
238MV-K7761-00-00 ...LABEL, WARNING 1...LABEL, WARNING 1
-
248JM-K7171-00-00 BODY, LATCH 1BODY, LATCH 1
