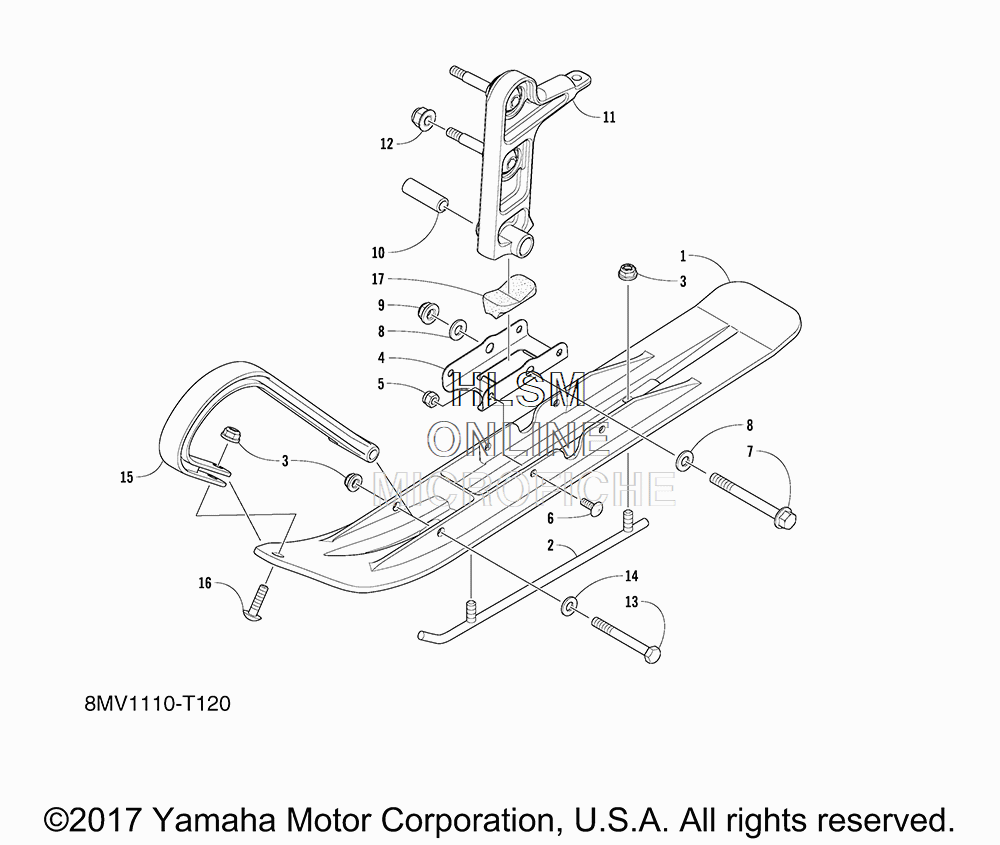

SUSPENSION - FRONT W/ SKI ASSY для Yamaha SRX 120 - 2018 года выпуска
-
№АртикулНазвание
-
18MV-F3711-00-00 SKI 1SKI 1
-
28JM-F3731-00-00 RUNNER 1RUNNER 1
-
38JM-RA303-00-00 NUT, SELF-LOCKING 5/16-18NUT, SELF-LOCKING 5/16-18
-
48MV-F3766-00-00 SADDLE 1SADDLE 1
-
58JP-RA357-00-00 NUT, FLANGE LOCKING 1/4-20NUT, FLANGE LOCKING 1/4-20
-
68JM-RA204-00-00 SCREW, 1/4-20X3/4SCREW, 1/4-20X3/4
-
78MV-RA108-00-00 BOLT, FLANGE 3/8-16X3.25BOLT, FLANGE 3/8-16X3.25
-
88JM-RA405-00-00 WASHER, PLAIN 3/8WASHER, PLAIN 3/8
-
98JP-RA358-00-00 NUT, FLANGE LOCKING 3/8-16NUT, FLANGE LOCKING 3/8-16
-
108ML-RA702-00-00 COLLAR, 9COLLAR, 9
-
118MV-F3511-00-00 KNUCKLE, STEERING 1 - LEFTKNUCKLE, STEERING 1 - LEFT
-
118MV-F3521-00-00 KNUCKLE, STEERING 2 - RIGHTKNUCKLE, STEERING 2 - RIGHT
-
128MV-RA358-00-00 NUT, FLANGE LOCKING 3/8-16NUT, FLANGE LOCKING 3/8-16
-
138JM-RA111-00-00 BOLT, HEXAGON 5/18X3BOLT, HEXAGON 5/18X3
-
148JM-RA403-00-00 WASHER, PLAIN 5/16WASHER, PLAIN 5/16
-
158JM-F3712-00-00 REINFORCEMENT, HEADREINFORCEMENT, HEAD
-
168JM-RA205-00-00 SCREW, 5/16-18X1SCREW, 5/16-18X1
-
178MV-F3743-00-00 STOPPER 1STOPPER 1
