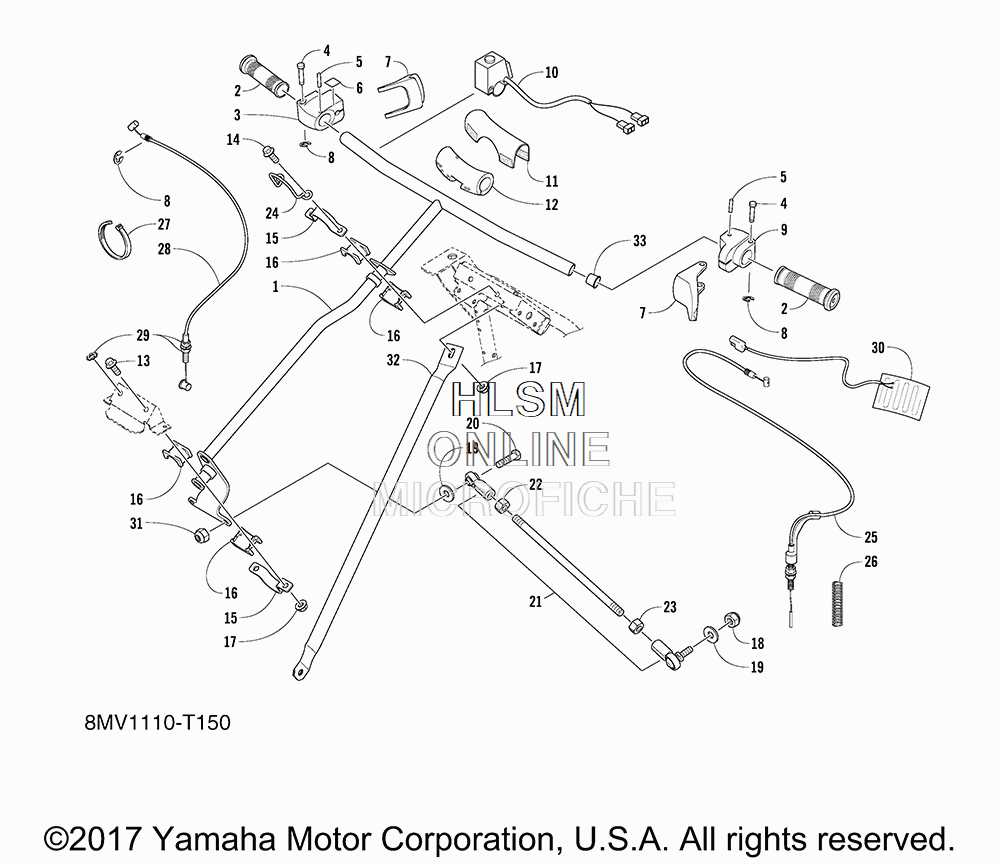

HANDLEBAR ASSY W/ STEERING ASSY для Yamaha SRX 120 - 2018 года выпуска`
-
№АртикулНазвание
-
18MV-F3811-00-00 COLUMN, STEERINGCOLUMN, STEERING
-
28JM-F6241-10-00 GRIPGRIP
-
38JM-H2921-00-00 HOLDER, LEVER 2HOLDER, LEVER 2
-
48JM-RAY07-00-00 PIN, 3PIN, 3
-
58JM-RAY08-00-00 PIN, 4PIN, 4
-
68JM-H2108-00-00 LABELLABEL
-
78JM-H3912-00-00 LEVER 1LEVER 1
-
88JM-RAH02-00-00 CIRCLIP, 3CIRCLIP, 3
-
98JM-H2911-00-00 HOLDER, LEVER 1HOLDER, LEVER 1
-
108JM-H2575-00-00 ENGINE STOP SWITCH ASSYENGINE STOP SWITCH ASSY
-
118JM-F3818-00-00 COVER, STEERINGCOVER, STEERING
-
128JM-F3817-00-00 PAD, STEERINGPAD, STEERING
-
138JM-RA106-00-00 BOLT, FLANGE 1/4-20X0.75BOLT, FLANGE 1/4-20X0.75
-
148MV-RA106-00-00 BOLT, FLANGE 1/4-20X0.75BOLT, FLANGE 1/4-20X0.75
-
158JM-F3872-00-00 HOLDER, BEARINGHOLDER, BEARING
-
168JM-F3812-00-00 BEARING, STEERINGBEARING, STEERING
-
178JP-RA357-00-00 NUT, FLANGE LOCKING 1/4-20NUT, FLANGE LOCKING 1/4-20
-
188JM-RA306-00-00 NUT, SELF-LOCKING 5/16-24NUT, SELF-LOCKING 5/16-24
-
198JM-RA403-00-00 WASHER, PLAIN 5/16WASHER, PLAIN 5/16
-
208JM-RA104-00-00 BOLT, FLANGE 5/16-18X1.25BOLT, FLANGE 5/16-18X1.25
-
218JM-F3830-00-00 TIE ROD ASSYTIE ROD ASSY
-
228JM-RA307-00-00 ...NUT, HEXAGON 5/16-24 LEFT THREAD...NUT, HEXAGON 5/16-24 LEFT THREAD
-
238JM-RA308-00-00 ...NUT, HEXAGON 5/16-24 RIGHT THREAD...NUT, HEXAGON 5/16-24 RIGHT THREAD
-
248MV-F3389-00-00 GUIDE, CABLEGUIDE, CABLE
-
258JM-F6340-00-00 CABLE, BRAKECABLE, BRAKE
-
268JM-F5735-00-00 SPRING, RETURN 1SPRING, RETURN 1
-
278JM-RAB01-00-00 CLAMP, 2 (8 INCH)CLAMP, 2 (8 INCH)
-
288MV-F6311-00-00 CABLE, THROTTLE 1CABLE, THROTTLE 1
-
298JM-RA407-00-00 WASHER, TOOTHED LOCK 1/4WASHER, TOOTHED LOCK 1/4
-
308MV-F626A-00-00 GRIP, WARMERGRIP, WARMER
-
318JM-RA303-00-00 NUT, SELF-LOCKING 5/16-18NUT, SELF-LOCKING 5/16-18
-
328MV-F119F-00-00 PIPE CROSS 8 - LEFTPIPE CROSS 8 - LEFT
-
328MV-F119E-00-00 PIPE CROSS 7 - RIGHTPIPE CROSS 7 - RIGHT
-
338JR-F3856-10-00 NUTNUT
