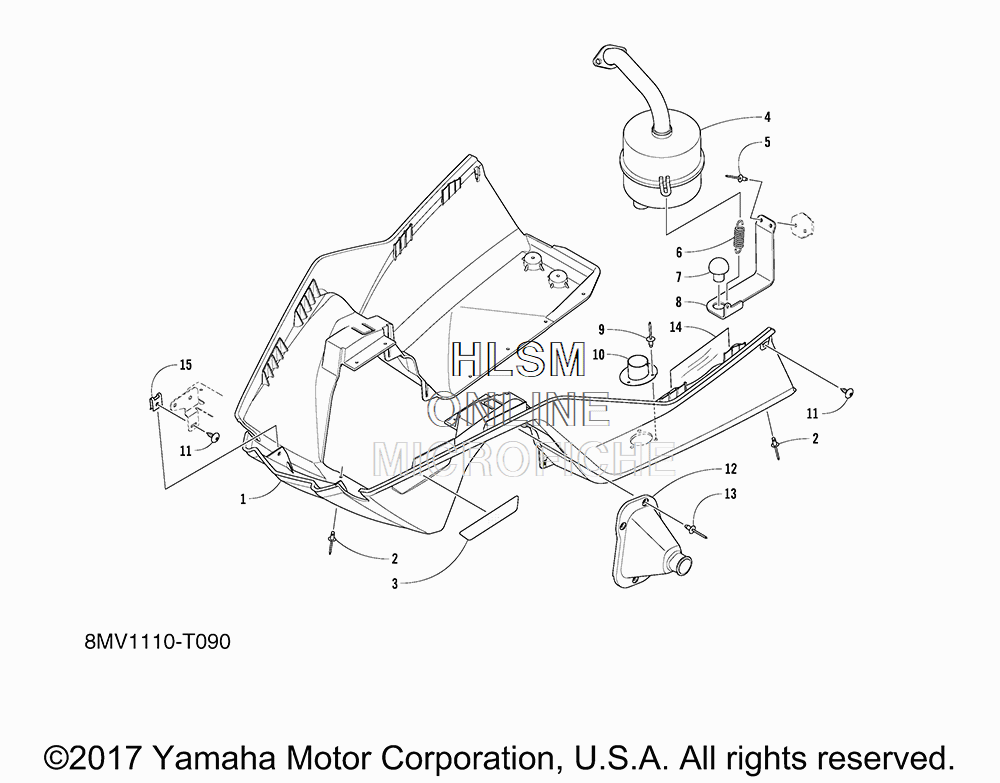

EXHAUST SYSTEM для Yamaha SRX 120 - 2018 года выпуска`
-
№АртикулНазвание
-
18MV-F1914-00-00 PANEL, SUB FRAME 3 (DPBSE - PURPLISH BLUE)PANEL, SUB FRAME 3 (DPBSE - PURPLISH BLUE)
-
18MV-F1914-10-00 PANEL, SUB FRAME 3 (BWS1 - BLUISH WHITE)PANEL, SUB FRAME 3 (BWS1 - BLUISH WHITE)
-
28LN-RA525-00-00 RIVET, 16RIVET, 16
-
38KC-H5133-00-00 TAPE, REFLECTORTAPE, REFLECTOR
-
48JM-E4750-00-00 SILENCER ASSYSILENCER ASSY
-
58JP-RA514-00-00 RIVET, 5RIVET, 5
-
68JM-RAD04-00-00 SPRING, TENSION 3SPRING, TENSION 3
-
78JM-E4718-00-00 PROTECTOR, MUFFLER 1PROTECTOR, MUFFLER 1
-
88JM-F194J-00-00 STAY, MUFFLERSTAY, MUFFLER
-
98JP-RA533-00-00 RIVET, 21RIVET, 21
-
108KV-K8181-00-00 PLATE 1PLATE 1
-
118KC-RA290-00-00 SCREWSCREW
-
128JM-F198F-00-00 COVER 1 - LEFTCOVER 1 - LEFT
-
128JM-F198G-00-00 COVER 2 - RIGHTCOVER 2 - RIGHT
-
138JM-RA503-00-00 RIVET, BLIND 4RIVET, BLIND 4
-
148MV-F199H-00-00 SHIELD, HEATSHIELD, HEAT
-
158JP-RA352-00-00 NUT, CLIP 10NUT, CLIP 10
