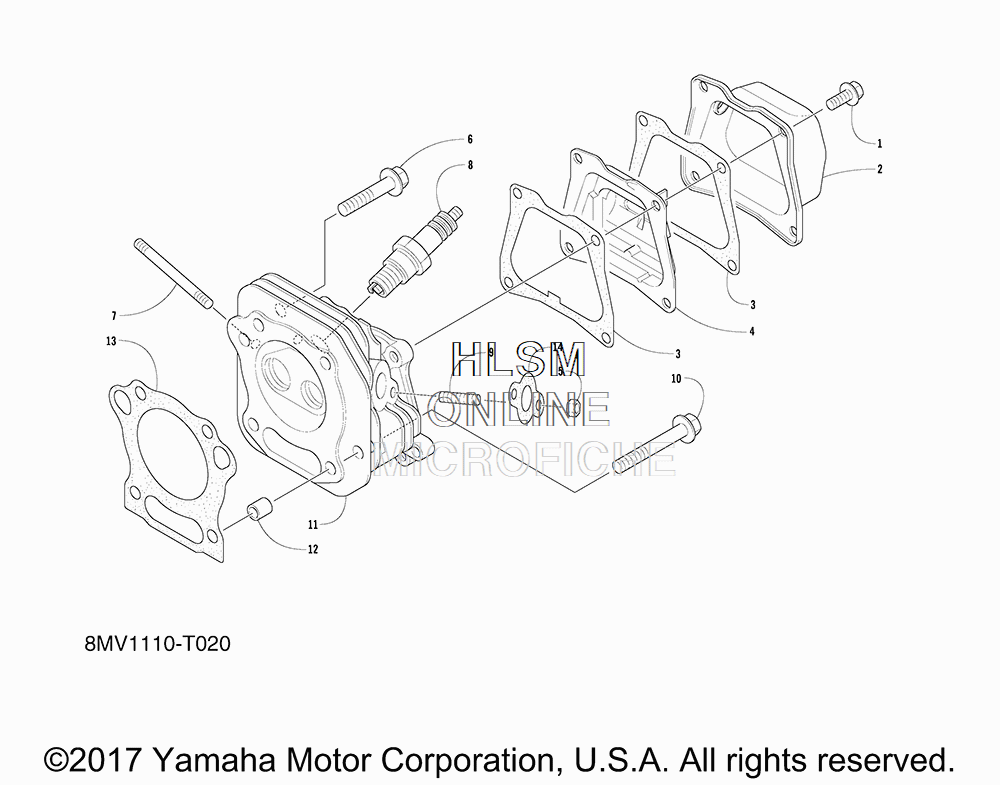

CYLINDER W/ HEAD ASSY для Yamaha SRX 120 - 2018 года выпуска`
-
№АртикулНазвание
-
195822-06012-00 BOLT, FLANGEBOLT, FLANGE
-
27CN-E1191-00-00 COVER, CYLINDER HEAD 1COVER, CYLINDER HEAD 1
-
37CN-E1169-02-00 GASKET, BREATHER COVERGASKET, BREATHER COVER
-
47CN-E1160-00-00 BREATHER ASSYBREATHER ASSY
-
595302-06600-00 NUT, HEXAGONNUT, HEXAGON
-
695822-08045-00 BOLT, FLANGEBOLT, FLANGE
-
790116-06807-00 BOLT, STUDBOLT, STUD
-
894702-00331-00 PLUG, SPARK (NGK BPR4ES)PLUG, SPARK (NGK BPR4ES)
-
995602-06615-00 BOLT, STUDBOLT, STUD
-
1095822-08065-00 BOLT, FLANGEBOLT, FLANGE
-
117CL-E1111-01-00 HEAD, CYLINDER 1HEAD, CYLINDER 1
-
1299530-10114-00 PIN, DOWELPIN, DOWEL
-
137CL-E1181-01-00 GASKET, CYLINDER HEAD 1GASKET, CYLINDER HEAD 1
-
147CN-E4613-00-00 GASKET, EXHAUST PIPEGASKET, EXHAUST PIPE
