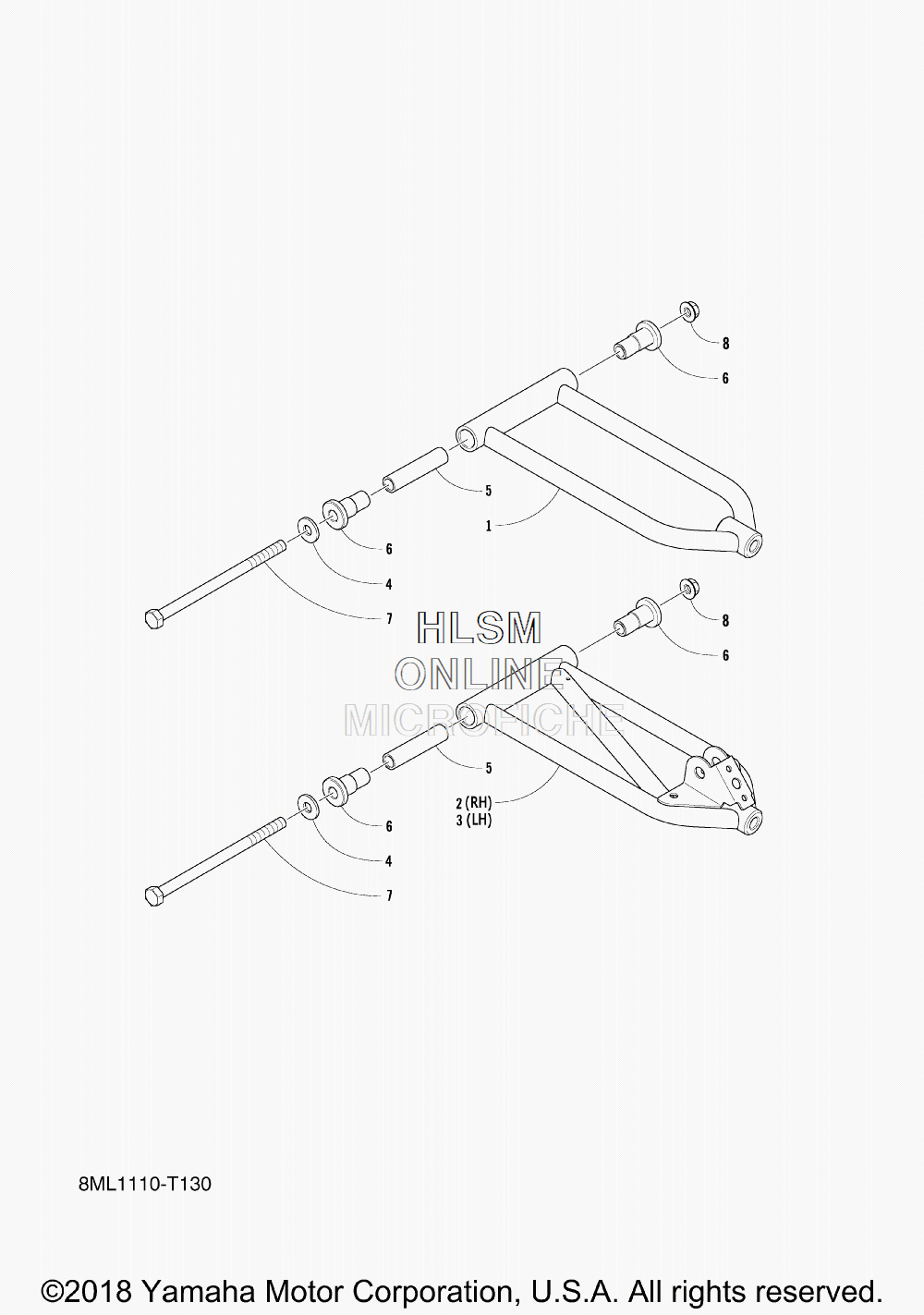

SUSPENSION - FRONT ARM для Yamaha SNOSCOOT - 2018 года выпуска`
-
№АртикулНазвание
-
18MV-F354A-00-00 ARM, FRONT UPPER (LEFT HAND)ARM, FRONT UPPER (LEFT HAND)
-
28MV-F358A-00-00 ARM, FRONT LOWER (RIGHT HAND)ARM, FRONT LOWER (RIGHT HAND)
-
38MV-F357A-00-00 ARM, FRONT LOWER (LEFT HAND)ARM, FRONT LOWER (LEFT HAND)
-
48JM-RA405-00-00 WASHER, PLAIN 3/8WASHER, PLAIN 3/8
-
58MV-RA703-00-00 COLLAR, 10COLLAR, 10
-
68JM-F3583-00-00 BUSHBUSH
-
78JM-RA107-10-00 BOLT, HEXAGON 3/8-16X6BOLT, HEXAGON 3/8-16X6
-
88JP-RA358-00-00 NUT, FLANGE LOCKING 3/8-16NUT, FLANGE LOCKING 3/8-16
