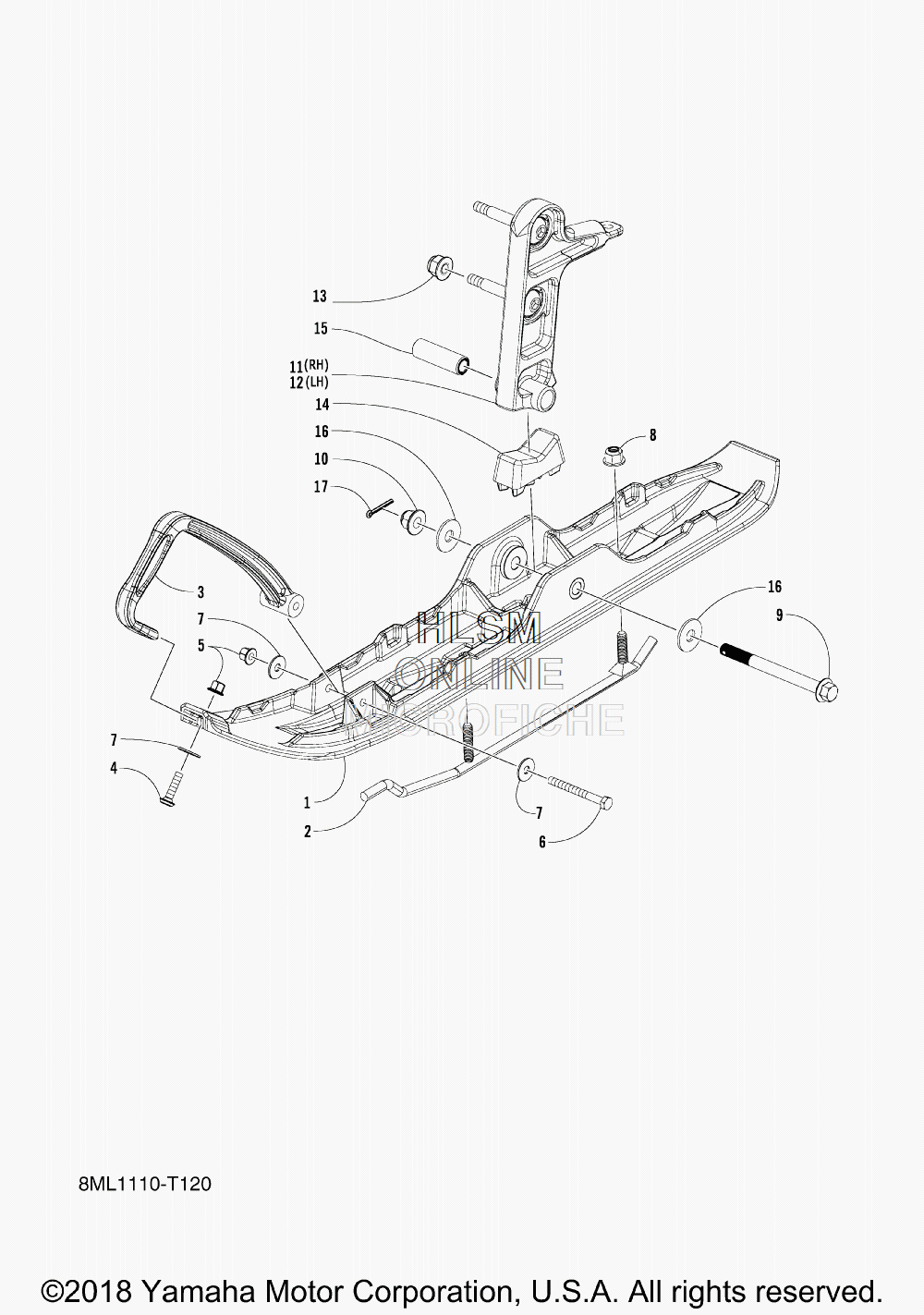

SUSPENSION - FRONT W/ SKI ASSY для Yamaha SNOSCOOT - 2018 года выпуска
-
№АртикулНазвание
-
18ML-F3710-00-00 SKI COMP. 1SKI COMP. 1
-
28ML-F3731-00-00 RUNNER 1RUNNER 1
-
38ML-F3712-10-00 REINFORCEMENT, HEAD (DPBSE - PURPLISH BLUE)REINFORCEMENT, HEAD (DPBSE - PURPLISH BLUE)
-
38ML-F3712-30-00 REINFORCEMENT, HEAD (MDGR - GREY FOR BWS1 - WHITE)REINFORCEMENT, HEAD (MDGR - GREY FOR BWS1 - WHITE)
-
48ML-F3755-00-00 BOLT, REINFORCEMENT HEAD 1BOLT, REINFORCEMENT HEAD 1
-
58ML-F3778-00-00 NUTNUT
-
68ML-F3756-00-00 BOLT, REINFORCEMENT HEAD 2BOLT, REINFORCEMENT HEAD 2
-
78ML-F3737-00-00 WASHER 1WASHER 1
-
88KC-RA358-00-00 NUT, FLANGE LOCKING 3/8-16NUT, FLANGE LOCKING 3/8-16
-
98ML-RA100-00-00 BOLT, FLANGE M8-1.25X16BOLT, FLANGE M8-1.25X16
-
108ML-RA309-00-00 NUTNUT
-
118MV-F3521-00-00 KNUCKLE, STEERING 2KNUCKLE, STEERING 2
-
128MV-F3511-00-00 KNUCKLE, STEERING 1KNUCKLE, STEERING 1
-
138MV-RA358-00-00 NUT, FLG. LOCKING 3/8-16NUT, FLG. LOCKING 3/8-16
-
148ML-F3743-00-00 STOPPER 1STOPPER 1
-
158ML-RA702-00-00 COLLAR, 9COLLAR, 9
-
1690201-10043-00 WASHER, PLATEWASHER, PLATE
-
178JP-RAK01-00-00 PIN, 1PIN, 1
