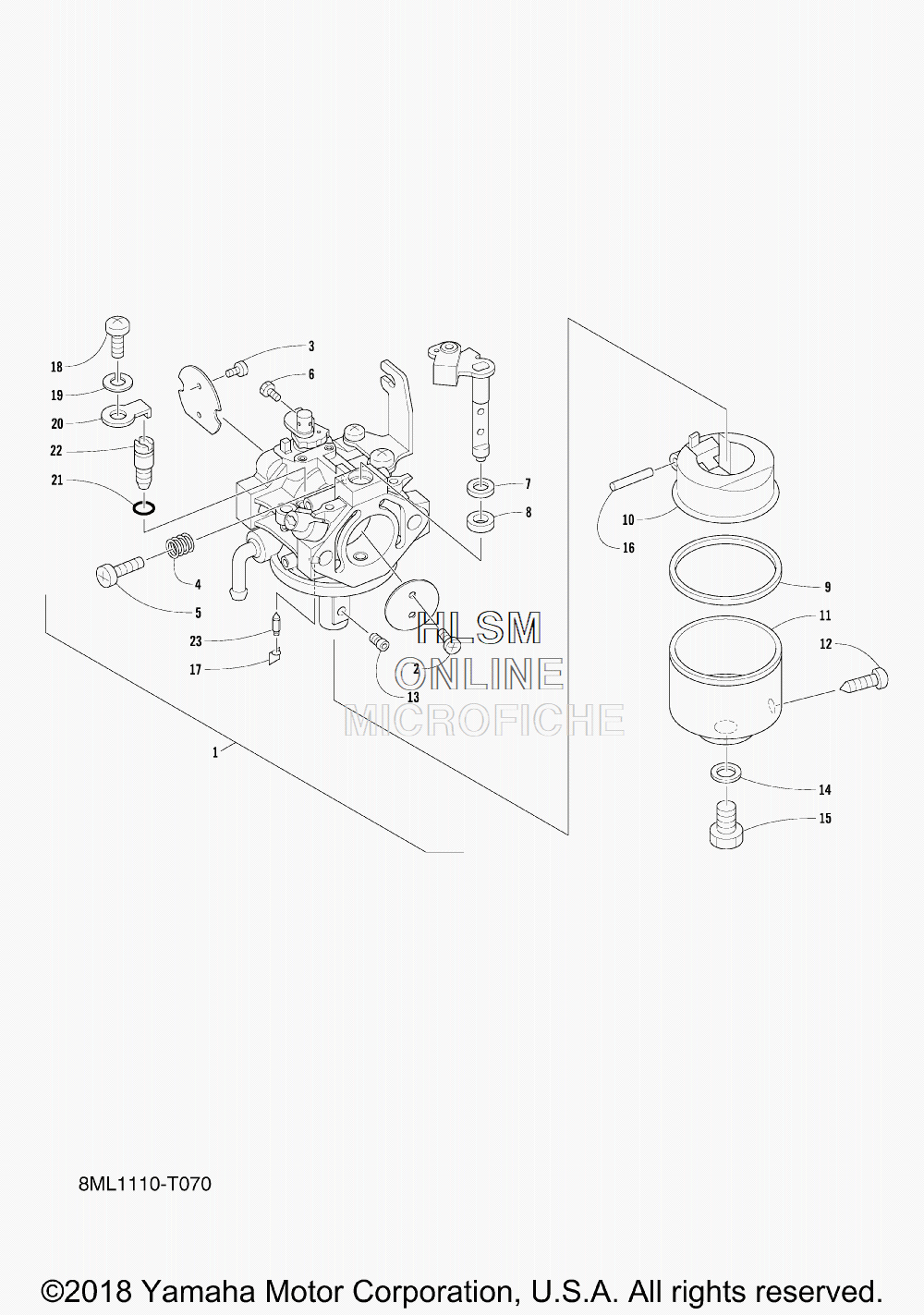

CARBURETOR ASSY для Yamaha SNOSCOOT - 2018 года выпуска`
-
№АртикулНазвание
-
17KB-E4101-11-00 CARBURETOR ASSY 1CARBURETOR ASSY 1
-
27RH-14216-00-00 ...SCREW...SCREW
-
37RH-14486-00-00 ...SCREW, ROD...SCREW, ROD
-
473A-14212-10-00 ...SPRING...SPRING
-
51WG-14922-00-00 ...SCREW, THROTTLE...SCREW, THROTTLE
-
678G-14496-00-00 ...BOLT...BOLT
-
74CW-14117-00-00 ...WASHER, PLUG SCREW...WASHER, PLUG SCREW
-
86K8-14597-10-00 ...WASHER...WASHER
-
97CT-E4997-00-00 ...SEAL...SEAL
-
10JN6-14185-00-00 ...FLOAT...FLOAT
-
117VB-E4181-00-00 ...BODY, FLOAT CHAMBER 1...BODY, FLOAT CHAMBER 1
-
127E1-14191-00-00 ...PLUG, DRAIN...PLUG, DRAIN
-
131HX-14231-19-00 ...JET, MAIN (#95.0) (OPT)...JET, MAIN (#95.0) (OPT)
-
131HX-1423E-38-00 ...JET, MAIN (#96.3) (OPT)...JET, MAIN (#96.3) (OPT)
-
131HX-1423A-70-00 ...JET, MAIN (#97.5) (OPT)...JET, MAIN (#97.5) (OPT)
-
131HX-1423E-39-A0 ...JET, MAIN (#98.8) (OPT)...JET, MAIN (#98.8) (OPT)
-
131HX-14231-20-A0 ...JET, MAIN (#100)...JET, MAIN (#100)
-
131HX-1423E-40-A0 ...JET, MAIN (#100.3) (OPT)...JET, MAIN (#100.3) (OPT)
-
14127-14198-00-00 ...GASKET...GASKET
-
157CG-14162-00-00 ...BOLT, HOLDING...BOLT, HOLDING
-
1622F-14186-00-00 ...PIN, FLOAT...PIN, FLOAT
-
177EG-14159-00-00 ...CLIP...CLIP
-
1898507-05008-00 ...SCREW, PAN HEAD...SCREW, PAN HEAD
-
1992990-05100-00 ...WASHER, SPRING...WASHER, SPRING
-
207CU-E4527-00-00 ...PLATE...PLATE
-
212H0-14147-00-00 ...O-RING...O-RING
-
227CU-E4142-35-00 ...JET, PILOT (#35.0) (OPT)...JET, PILOT (#35.0) (OPT)
-
227CU-E414J-14-00 ...JET, PILOT (#36.3) (OPT)...JET, PILOT (#36.3) (OPT)
-
227CU-E4142-37-A0 ...JET, PILOT (#37.5)...JET, PILOT (#37.5)
-
227CU-E414J-15-00 ...JET, PILOT (#38.8) (OPT)...JET, PILOT (#38.8) (OPT)
-
237CU-14150-00-00 ...NEEDLE ASSY...NEEDLE ASSY
