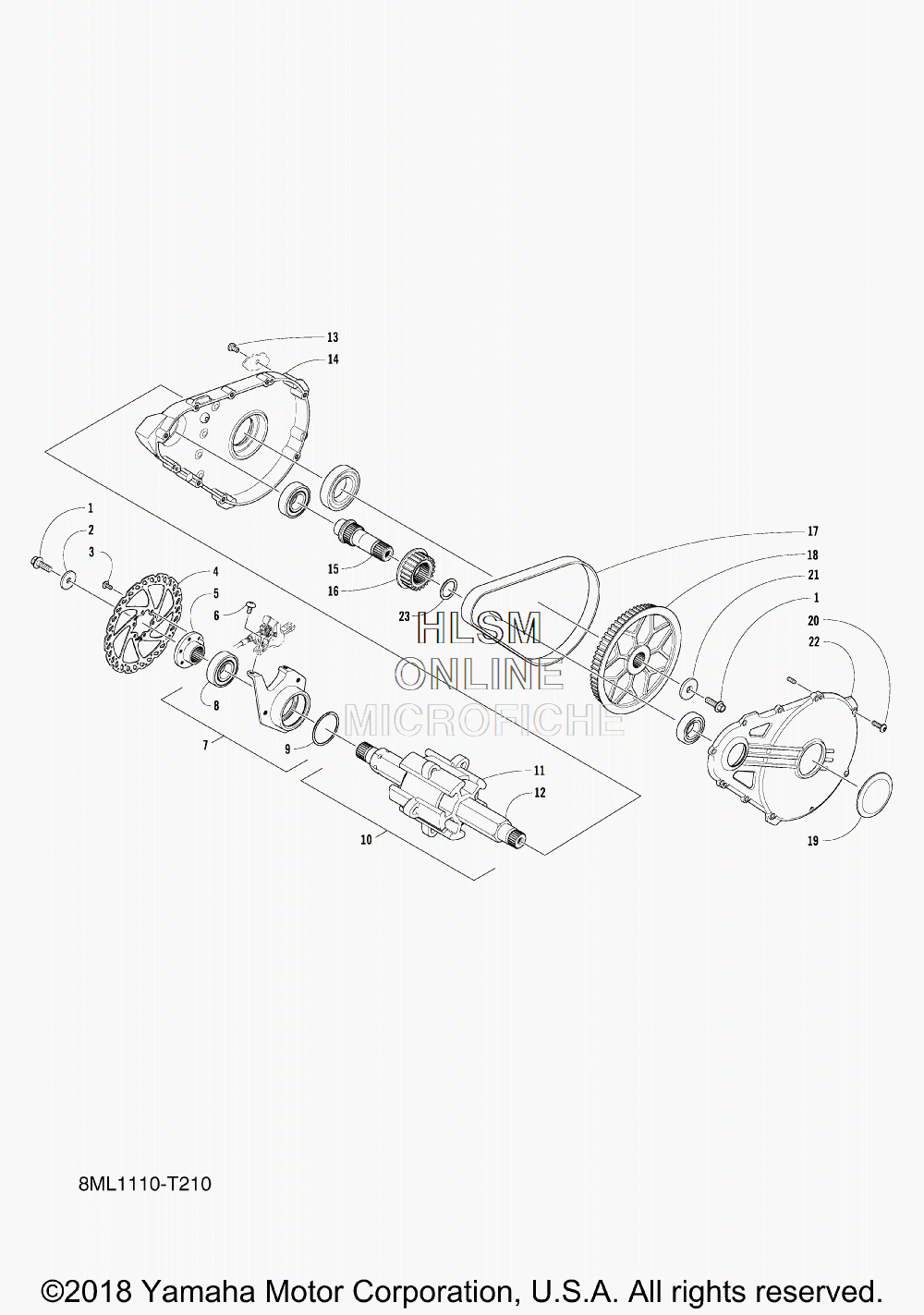

DRIVE TRAIN ASSEMBLY для Yamaha SNOSCOOT - 2018 года выпуска`
-
№АртикулНазвание
-
18JP-RA186-00-00 BOLT, FLANGE M8X1.25X25BOLT, FLANGE M8X1.25X25
-
28JM-RA401-00-00 WASHER, PLAIN 11/32WASHER, PLAIN 11/32
-
38JP-RA241-00-00 SCREW, M5X0.8X12SCREW, M5X0.8X12
-
48ML-F581U-00-00 DISC BRAKE ASSY (RIGHT)DISC BRAKE ASSY (RIGHT)
-
58ML-F5111-00-00 HUB, FRONTHUB, FRONT
-
68JP-RA179-00-00 BOLT, FLANGE M6X1.0X12BOLT, FLANGE M6X1.0X12
-
78ML-F5110-00-00 HUB ASSY, FRONTHUB ASSY, FRONT
-
88ML-RAG07-00-00 ...BEARING, 6206...BEARING, 6206
-
98ML-RAH03-00-00 ...CIRCLIP, 1...CIRCLIP, 1
-
108ML-G7501-00-00 FRONT AXLE SUB-ASSYFRONT AXLE SUB-ASSY
-
118ML-G7531-00-00 ...WHEEL, SPROCKET 1...WHEEL, SPROCKET 1
-
128ML-G7511-00-00 ...AXLE, FRONT...AXLE, FRONT
-
138KC-RA200-00-00 SCREW, M6-16SCREW, M6-16
-
148ML-G6365-00-00 CASE, GEARCASE, GEAR
-
158ML-G8242-00-00 SHAFT, DRIVESHAFT, DRIVE
-
168ML-G6256-00-00 PULLEY 1PULLEY 1
-
178ML-G6241-00-00 BELTBELT
-
188ML-G6257-00-00 PULLEY 2PULLEY 2
-
198ML-G7339-00-00 PLUGPLUG
-
208ML-RA200-00-00 SCREW,M6-16SCREW,M6-16
-
218ML-RA401-00-00 WASHER, PLAIN 11/32WASHER, PLAIN 11/32
-
228ML-G7721-00-00 COVER, HOUSINGCOVER, HOUSING
-
238ML-RA444-00-00 WASHER, 12X26X1WASHER, 12X26X1
