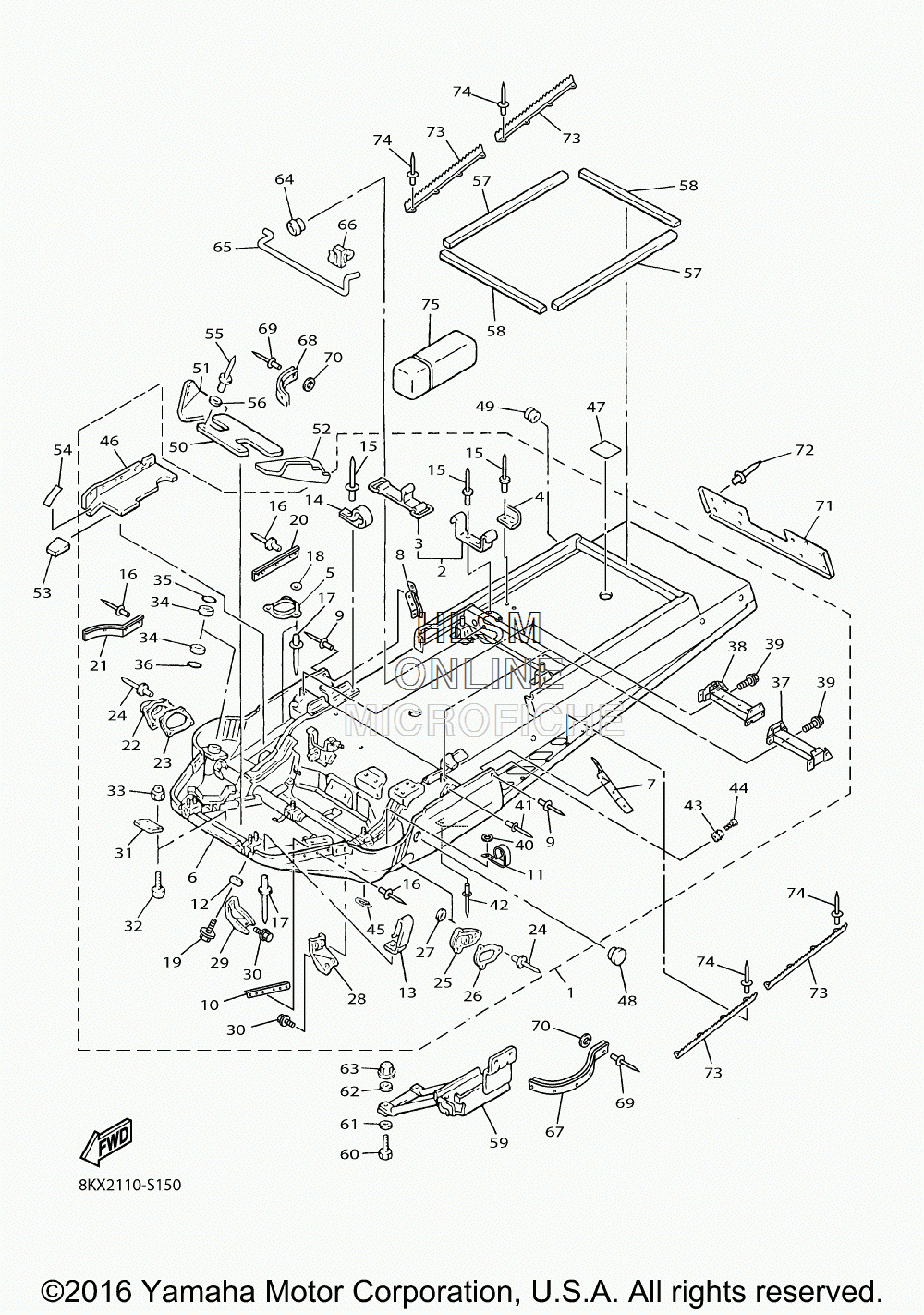

TUNNEL ASSEMBLY W/ LOWER NOSEPAN для Yamaha VK540 - 2017 года выпуска`
-
№АртикулНазвание
-
18KX-W2190-00-00 FRAME COMP.FRAME COMP.
-
281E-21945-00-00 ...BRACKET, TOOL BOX FITTING...BRACKET, TOOL BOX FITTING
-
34J2-82131-01-00 ......BAND, BATTERY......BAND, BATTERY
-
483R-21955-00-00 ...BRACKET, TOOL BOX FITTING...BRACKET, TOOL BOX FITTING
-
583R-2198F-00-00 ...COVER 1...COVER 1
-
68JD-21912-02-00 ...PANEL, SUB FRAME 1...PANEL, SUB FRAME 1
-
783R-21986-00-00 ...REINFORCEMENT, FRAME 1...REINFORCEMENT, FRAME 1
-
883R-21987-00-00 ...REINFORCEMENT, FRAME 2...REINFORCEMENT, FRAME 2
-
990267-49152-00 ...RIVET, BLIND (4.9X16.1)...RIVET, BLIND (4.9X16.1)
-
108AC-21965-00-00 ...PATCH 5...PATCH 5
-
1190462-08021-00 ...CLAMP...CLAMP
-
1290387-081R2-00 ...COLLAR...COLLAR
-
1390465-08368-00 ...CLAMP...CLAMP
-
1490462-05059-00 ...CLAMP...CLAMP
-
1590267-48060-00 ...RIVET, BLIND (4.8X12.9 BLACK)...RIVET, BLIND (4.8X12.9 BLACK)
-
1690267-48051-00 ...RIVET, BLIND (4.8X18.7 BLACK...RIVET, BLIND (4.8X18.7 BLACK
-
1790267-48018-00 ...RIVET, BLIND (4.8X18.6 BLACK)...RIVET, BLIND (4.8X18.6 BLACK)
-
1890201-04027-00 ...WASHER, PLATE...WASHER, PLATE
-
1995827-06016-00 ...BOLT, FLANGE...BOLT, FLANGE
-
208AT-77527-02-00 ...PLATE, BACK UP...PLATE, BACK UP
-
218JD-77577-00-00 ...PLATE, 1...PLATE, 1
-
228AT-23818-00-00 ...COVER, STEERING...COVER, STEERING
-
238AT-77526-00-00 ...WASHER 2...WASHER 2
-
2490267-40029-00 ...RIVET, BLIND (4X18 BLACK)...RIVET, BLIND (4X18 BLACK)
-
258M6-2198F-00-00 ...COVER 1...COVER 1
-
268M6-21998-00-00 ...SPACER...SPACER
-
2790201-043H5-00 ...WASHER, PLATE...WASHER, PLATE
-
288AT-2194Y-00-00 ...BRACKET, FRONT GUARD 3...BRACKET, FRONT GUARD 3
-
298AT-2195Y-00-00 ...BRACKET, FRONT GUARD 4...BRACKET, FRONT GUARD 4
-
3090105-08408-00 ...BOLT, FLANGE...BOLT, FLANGE
-
3189X-21917-00-00 ...PANEL, SUB FRAME 6...PANEL, SUB FRAME 6
-
3298907-05014-00 ...SCREW, BIND...SCREW, BIND
-
3395707-05300-00 ...NUT, FLANGE...NUT, FLANGE
-
3490384-36134-00 ...BUSH, BIMETAL FORMED...BUSH, BIMETAL FORMED
-
3593102-36232-00 ...OIL SEAL...OIL SEAL
-
3693103-36117-00 ...OIL SEAL...OIL SEAL
-
378AT-23883-01-00 ...BRACKET 3...BRACKET 3
-
388AT-23884-01-00 ...BRACKET 4...BRACKET 4
-
3995802-06012-00 ...BOLT, FLANGE...BOLT, FLANGE
-
4092902-05200-00 ...WASHER...WASHER
-
4190267-48177-00 ...RIVET, BLIND (4.8X14 YELLOW)...RIVET, BLIND (4.8X14 YELLOW)
-
4290267-48193-00 ......RIVET, BLIND (4.7X19.5 SILVER)......RIVET, BLIND (4.7X19.5 SILVER)
-
438M6-77175-00-00 ...HOLDER, LATCH...HOLDER, LATCH
-
4498907-06035-00 ...SCREW, BIND...SCREW, BIND
-
4593410-52061-00 ...CIRCLIP...CIRCLIP
-
468KA-77272-00-00 ...DAMPER, NOISE 12...DAMPER, NOISE 12
-
478CR-2198J-00-00 COVER 3COVER 3
-
4890338-44093-00 PLUGPLUG
-
4990480-15061-00 GROMMETGROMMET
-
508KA-77271-00-00 DAMPER, NOISE 11DAMPER, NOISE 11
-
518KA-77273-00-00 DAMPER, NOISE 13DAMPER, NOISE 13
-
528KX-77274-00-00 DAMPER, NOISE 14DAMPER, NOISE 14
-
538KA-77275-00-00 DAMPER, NOISE 15DAMPER, NOISE 15
-
548CR-77165-00-00 TRIM 1TRIM 1
-
5590267-48018-00 RIVET, BLIND (4.8X18.6 BLACK)RIVET, BLIND (4.8X18.6 BLACK)
-
5690201-04027-00 WASHER, PLATEWASHER, PLATE
-
5783R-7717E-00-00 TAPE 1TAPE 1
-
5883R-7717F-00-00 TAPE 2TAPE 2
-
598AT-2199G-01-00 BRACKET, BATTERYBRACKET, BATTERY
-
6097022-06025-00 BOLT, HEXAGONBOLT, HEXAGON
-
6190201-06778-00 WASHER, PLATEWASHER, PLATE
-
6290201-063A5-00 WASHER, PLATEWASHER, PLATE
-
6395702-06300-00 NUT, NYLONNUT, NYLON
-
6490480-10348-00 GROMMETGROMMET
-
658KX-2471A-00-00 STAY, SEATSTAY, SEAT
-
6685R-2639F-00-00 HOLDER 2HOLDER 2
-
678AT-2196T-00-00 TRIM 1TRIM 1
-
688JD-2196T-00-00 TRIM 1TRIM 1
-
6990267-40172-00 RIVET, BLIND (4X19)RIVET, BLIND (4X19)
-
7090201-042E0-00 WASHER, PLATEWASHER, PLATE
-
718AC-21933-00-00 REINFORCEMENT, FRAME REAR 2REINFORCEMENT, FRAME REAR 2
-
7290267-47186-00 RIVET, BLIND (4.7X16.4 BLACK)RIVET, BLIND (4.7X16.4 BLACK)
-
738JD-21926-00-00 REINFORCEMENT, FOOTREST 1REINFORCEMENT, FOOTREST 1
-
7490267-48023-00 RIVET, BLIND (4.8X12.1 YELLOW)RIVET, BLIND (4.8X12.1 YELLOW)
-
7585L-28100-00-00 TOOL KITTOOL KIT
