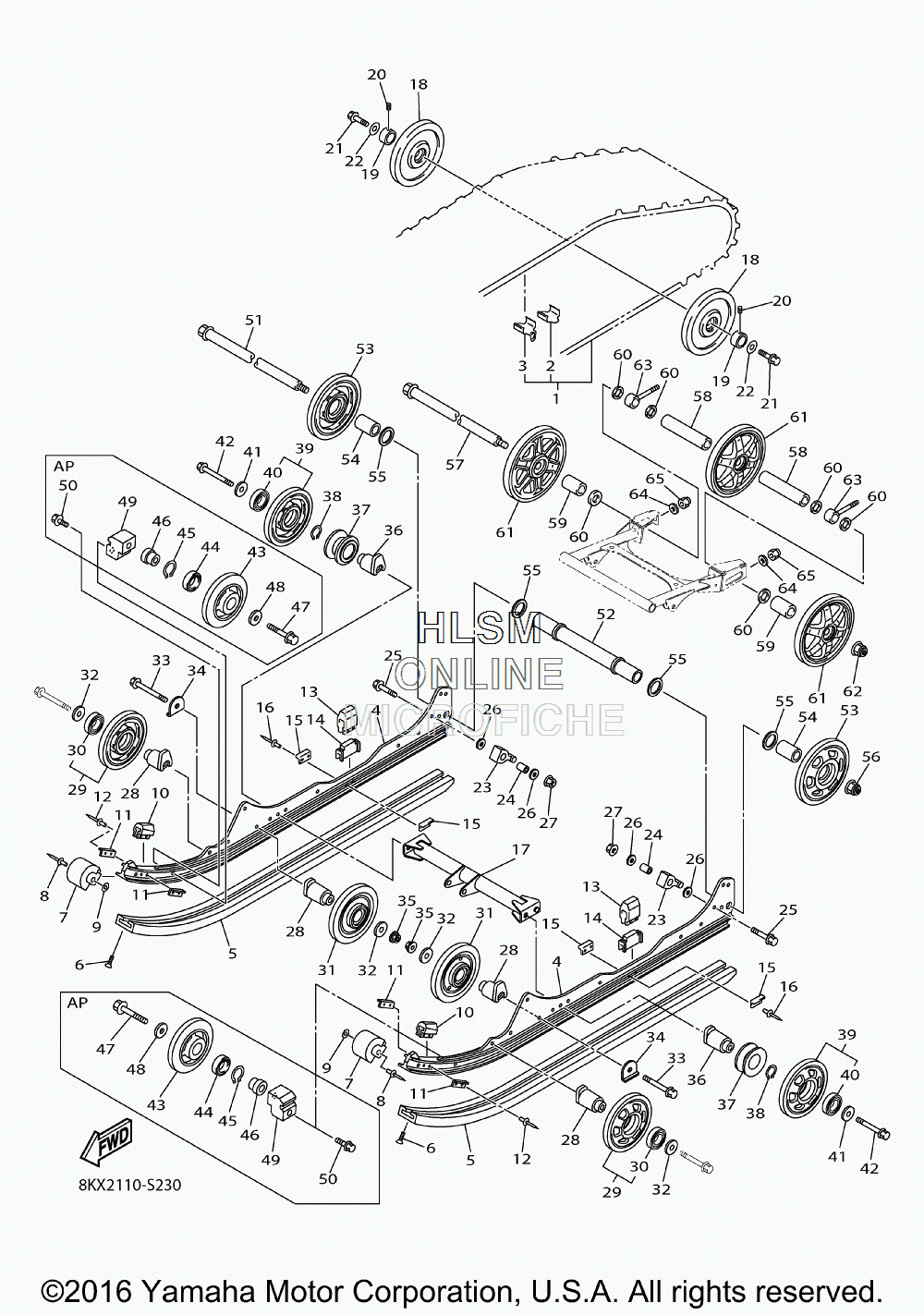

SUSPENSION - IDLER WHEELS W/ RAIL ASSY - TRACK для Yamaha VK540 - 2017 года выпуска`
-
№АртикулНазвание
-
18KX-47110-00-00 TRACK ASSYTRACK ASSY
-
28HR-47113-09-00 ...PLATE, REINFORCEMENT...PLATE, REINFORCEMENT
-
38HR-47115-09-00 ...METAL, SLIDE...METAL, SLIDE
-
48KW-4741A-00-00 FRAME, SLIDINGFRAME, SLIDING
-
58JD-47421-01-00 RUNNER, SLIDING 1RUNNER, SLIDING 1
-
690151-06010-00 SCREW, COUNTERSUNKSCREW, COUNTERSUNK
-
78GL-47422-00-00 RUNNER, SLIDING 2RUNNER, SLIDING 2
-
890267-48194-00 RIVET, BLIND (4.8X28 SILVER)RIVET, BLIND (4.8X28 SILVER)
-
990201-047R8-00 WASHER, PLATEWASHER, PLATE
-
108ES-47456-00-00 DAMPER 1DAMPER 1
-
118K2-47458-01-00 PLATE, DAMPERPLATE, DAMPER
-
1290267-48199-00 RIVET, BLIND (4.8X28.3)RIVET, BLIND (4.8X28.3)
-
138AC-47457-00-00 DAMPER 2DAMPER 2
-
148KA-47573-00-00 SPACERSPACER
-
158AX-47458-00-00 PLATE, DAMPERPLATE, DAMPER
-
1690267-48199-00 RIVET, BLIND (4.8X28.3)RIVET, BLIND (4.8X28.3)
-
178KW-47349-00-00 BRACKET, ARM PIVOTBRACKET, ARM PIVOT
-
188AC-47550-00-00 GUIDE WHEEL ASSYGUIDE WHEEL ASSY
-
198JD-47365-00-00 COLLAR 1COLLAR 1
-
2090113-06039-00 BOLT, SETBOLT, SET
-
2190109-10030-00 BOLTBOLT
-
2290201-10072-00 WASHER, PLATEWASHER, PLATE
-
238JH-47496-00-00 STOPPER 2STOPPER 2
-
2490387-105G5-00 COLLARCOLLAR
-
2590105-10209-00 BOLT, FLANGEBOLT, FLANGE
-
2690201-10052-00 WASHER, PLATEWASHER, PLATE
-
2795602-10200-00 NUT, U FLANGENUT, U FLANGE
-
288ES-47419-20-00 BRACKET 7BRACKET 7
-
298HF-47310-10-00 SUSPENSION WHEEL ASSYSUSPENSION WHEEL ASSY
-
3093306-00507-00 ...BEARING...BEARING
-
318KA-47310-00-00 SUSPENSION WHEEL ASSYSUSPENSION WHEEL ASSY
-
3290201-10038-00 WASHER, PLATEWASHER, PLATE
-
3395812-10080-00 BOLT, FLANGEBOLT, FLANGE
-
3490214-10004-00 WASHER, CLAWWASHER, CLAW
-
3595602-10200-00 NUT, U FLANGENUT, U FLANGE
-
368ES-47419-10-00 BRACKET 7BRACKET 7
-
378ET-47446-00-00 HOOK 1HOOK 1
-
3899009-35400-00 CIRCLIPCIRCLIP
-
398HF-47310-10-00 SUSPENSION WHEEL ASSYSUSPENSION WHEEL ASSY
-
4093306-00507-00 ...BEARING...BEARING
-
4190201-10038-00 WASHER, PLATEWASHER, PLATE
-
4295812-10080-00 BOLT, FLANGEBOLT, FLANGE
-
438AC-47320-00-00 SUSPENSION WHEEL COMP. (OPT)SUSPENSION WHEEL COMP. (OPT)
-
4493306-00444-00 BEARING (OPT)BEARING (OPT)
-
4599009-42500-00 CIRCLIP (OPT)CIRCLIP (OPT)
-
468GP-47319-00-00 COLLAR (OPT)COLLAR (OPT)
-
4795812-10045-00 BOLT, FLANGE (OPT)BOLT, FLANGE (OPT)
-
4890201-10052-00 WASHER, PLATE (OPT)WASHER, PLATE (OPT)
-
498GP-47419-00-00 BRACKET 7 (OPT)BRACKET 7 (OPT)
-
5090105-10237-00 BOLT, FLANGE (OPT)BOLT, FLANGE (OPT)
-
518JN-47520-00-00 REAR AXLE COMP.REAR AXLE COMP.
-
5283R-47469-10-00 COLLAR 1COLLAR 1
-
538HP-47310-10-00 SUSPENSION WHEEL ASSYSUSPENSION WHEEL ASSY
-
5490387-20022-00 COLLARCOLLAR
-
5590201-20022-00 WASHER, PLATEWASHER, PLATE
-
5695602-14200-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
578JN-47520-00-00 REAR AXLE COMP.REAR AXLE COMP.
-
5890387-20023-00 COLLARCOLLAR
-
5990387-20022-00 COLLARCOLLAR
-
6090201-20022-00 WASHER, PLATEWASHER, PLATE
-
618KA-47550-00-00 GUIDE WHEEL ASSYGUIDE WHEEL ASSY
-
6295602-14200-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
638DM-47479-00-00 COLLAR 3COLLAR 3
-
6492902-10600-00 WASHER, PLATEWASHER, PLATE
-
6595702-10300-00 NUT, NYLONNUT, NYLON
